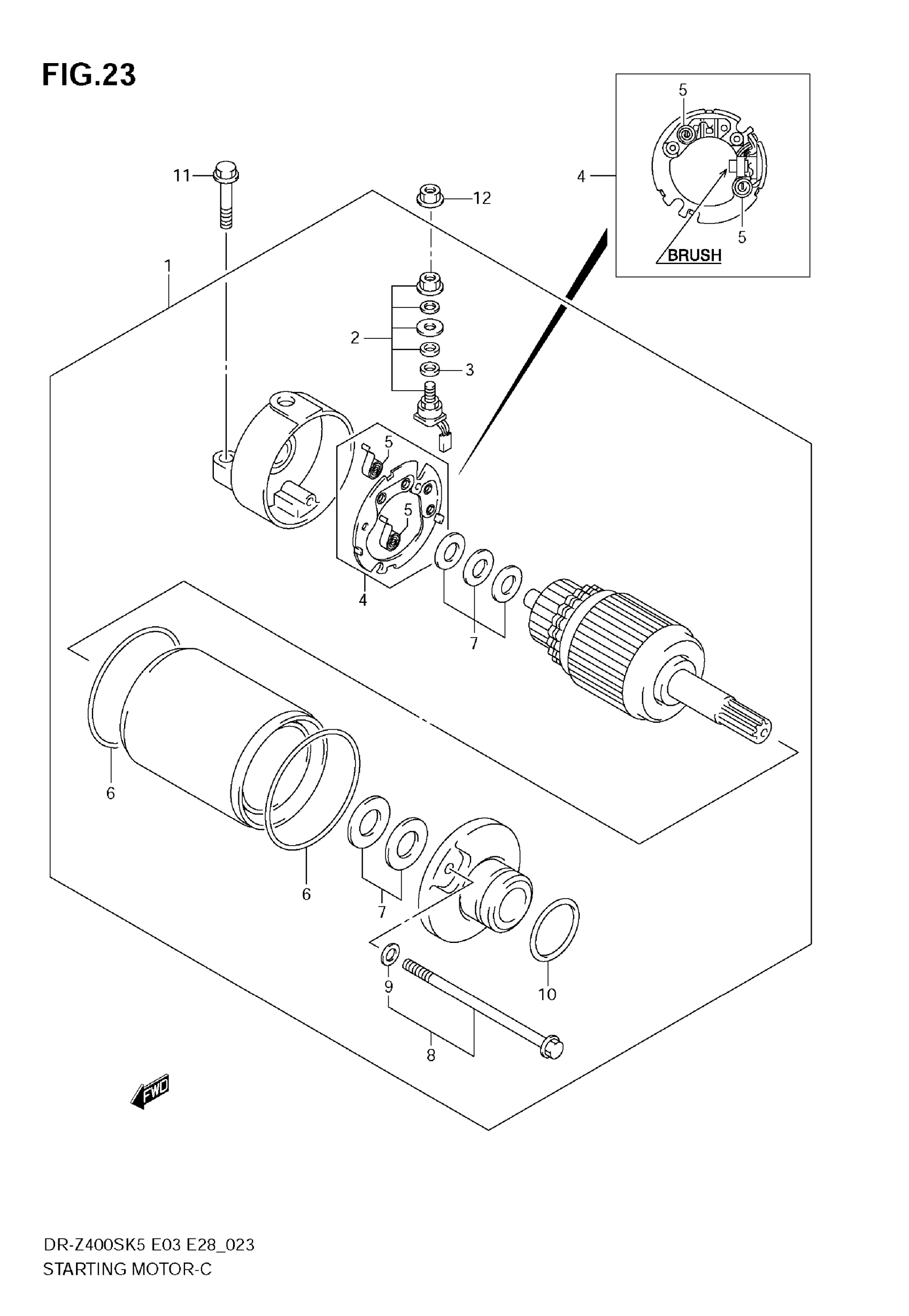

Suzuki DR-Z400S (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-29F00

$499.13

2

BRUSH TERMINAL SET

31130-13E00

$40.44

3

O RING

31143-49040

$3.50

4

BRUSH HOLDER SET

31132-13E00

$51.95

5

BRUSH SPRING

31135-31300

$6.59

6

O RING

31264-13E00

$6.29

7

WASHER SET

31170-19B10

$14.18

8

SET BOLT

31280-19F00

$23.08

9

O RING

31156-13E00

$4.92

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT (6X25)

09103-06212

$2.53

12

NUT

08361-3506A

$1.81
