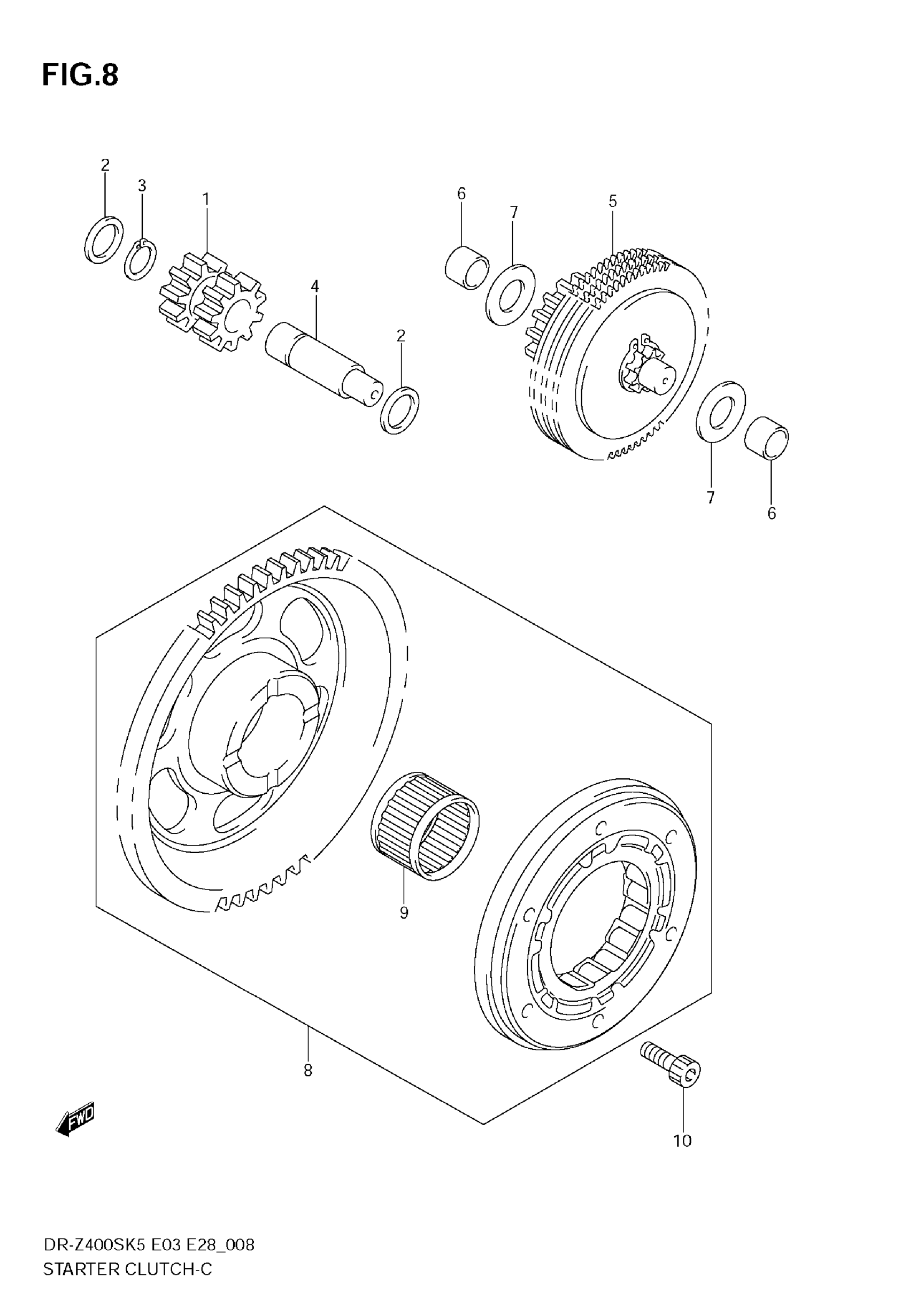

Suzuki DR-Z400S (2009) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1

12611-29F00

$67.57

2

WASHER

09181-12130

$2.14

3

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.82

4

PIN

12615-29F00

$23.55

5

LIMITER ASSY, STARTER IDLE GEAR

12600-29F00

$316.23

6

BUSH LIMITER GEAR SHAFT

12618-31D01

$21.64

7

WASHER

08211-10221

$2.01

8

CLUTCH SET, STARTER | Includes Item(s) 9

12600-29810

$222.69

9

BEARING (25X31X19)

09263-25049

$36.57

10

BOLT | MODEL K5/K6 This part replaces 07130-06163.

07130-0616B

$2.44

10

BOLT (6X16) | MODEL K7/K8/K9

09106-06073

$2.44
