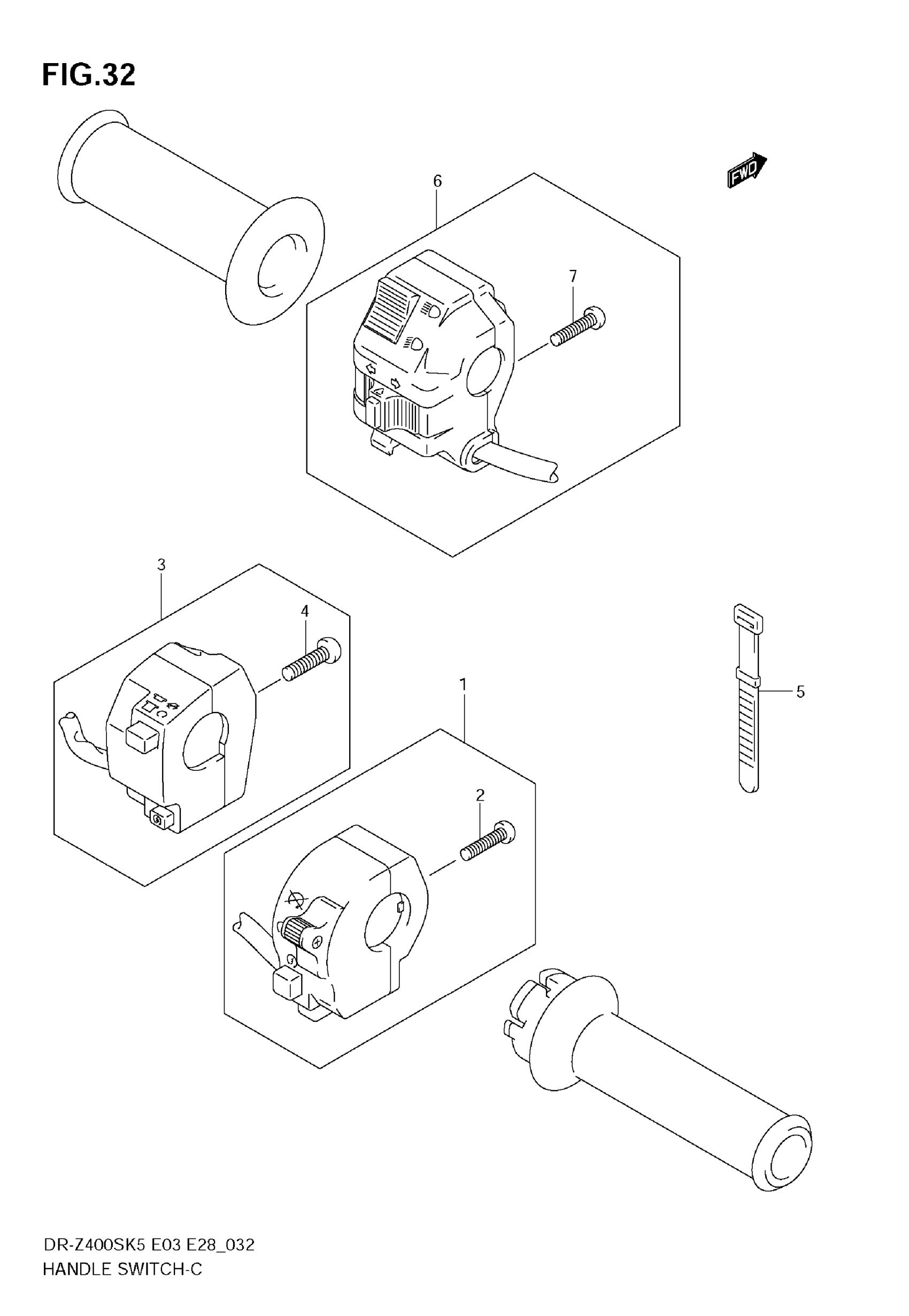

Suzuki DR-Z400S (2009) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HAN | MODEL K5; Includes Item(s) 2 This part replaces 37200-13E30.

37200-13E31

$107.38

2

SCREW | MODEL K5 This part replaces 02112-04203.

02112-0420A

$1.30

3

SWITCH ASSY,HAN | MODEL K6/K7 This part replaces 37200-29F00.

37200-29F01

$110.50

3

SWITCH ASSY HANDLE RH | MODEL K8/K9; Includes Item(s) 4 This part replaces 37200-29F30.

37200-29F31

$107.35

4

SCREW | MODEL K6/K7/K8/K9

02112-0525B

$1.86

5

CLAMP

09407-12402

$2.80

6

SWITCH ASSY,HAN | MODEL K5/K6/K7 This part replaces 37400-15D20.

37400-15D21

$140.28

6

SWITCH ASSY, HANDLE LH | MODEL K8/K9; Includes Item(s) 7

37400-29F40

$194.95

7

SCREW

02112-0530B

$1.45
