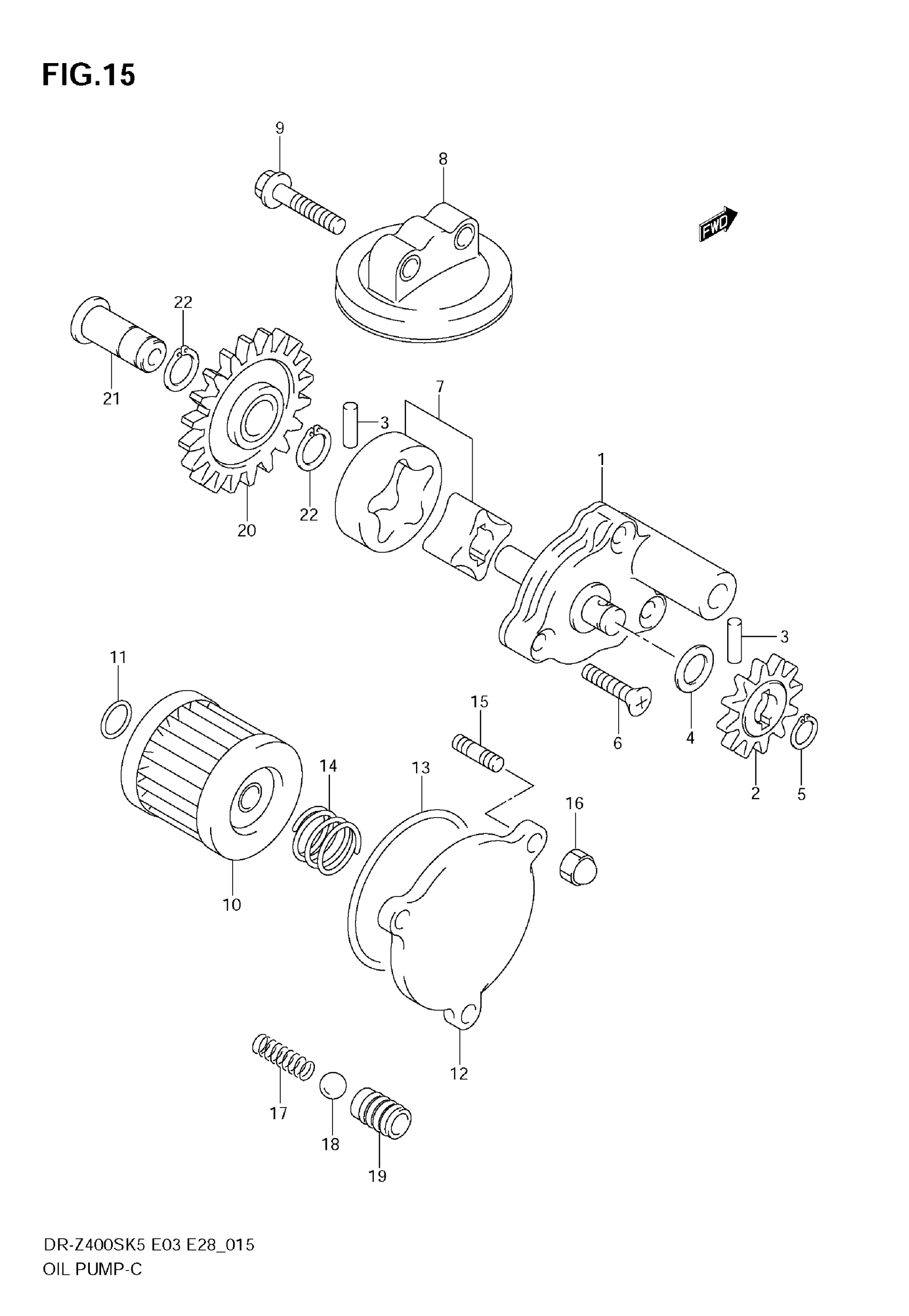

Suzuki DR-Z400S (2009) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL NO.1

16400-29F00

$143.17

2

GEAR, DRIVEN

16331-29F01

$45.08

3

PIN

09261-04009

$1.50

4

WASHER

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

6

SCREW

02122-0625B

$2.05

7

ROTOR SET, OIL PUMP NO.2

16410-29F00

$40.44

8

STRAINER, OIL PUMP NO.2 This part replaces 16520-29F00.

16520-29F01

$24.63

9

BOLT | MODEL K5/K6

01550-0625B

$2.43

9

BOLT | MODEL K7/K8/K9

01550-0625A

$1.97

10

FILTER, ENGINE OIL

16510-29F00

$6.81

11

O RING (D:1.9,ID:13.0)

09280-13004

$2.19

12

CAP, OIL FILTER

16512-47E00

$44.02

13

O RING (D:2.4,ID:52.6)

09280-54001

$3.38

14

SPRING

09440-18002

$1.09

15

STUD BOLT

09108-06123

$2.84

16

NUT | MODEL K5/K6

08313-1006B

$2.28

16

NUT | MODEL K7/K8/K9

08313-1006A

$1.83

17

SPRING

09440-07073

$4.12

18

BALL

06111-12004

$1.95

19

SEAT, OIL CHECK VALVE

16442-29F00

$25.58

20

GEAR, OIL PUMP IDLE

16321-29F00

$24.27

21

SHAFT

16322-29F00

$22.42

22

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.77
