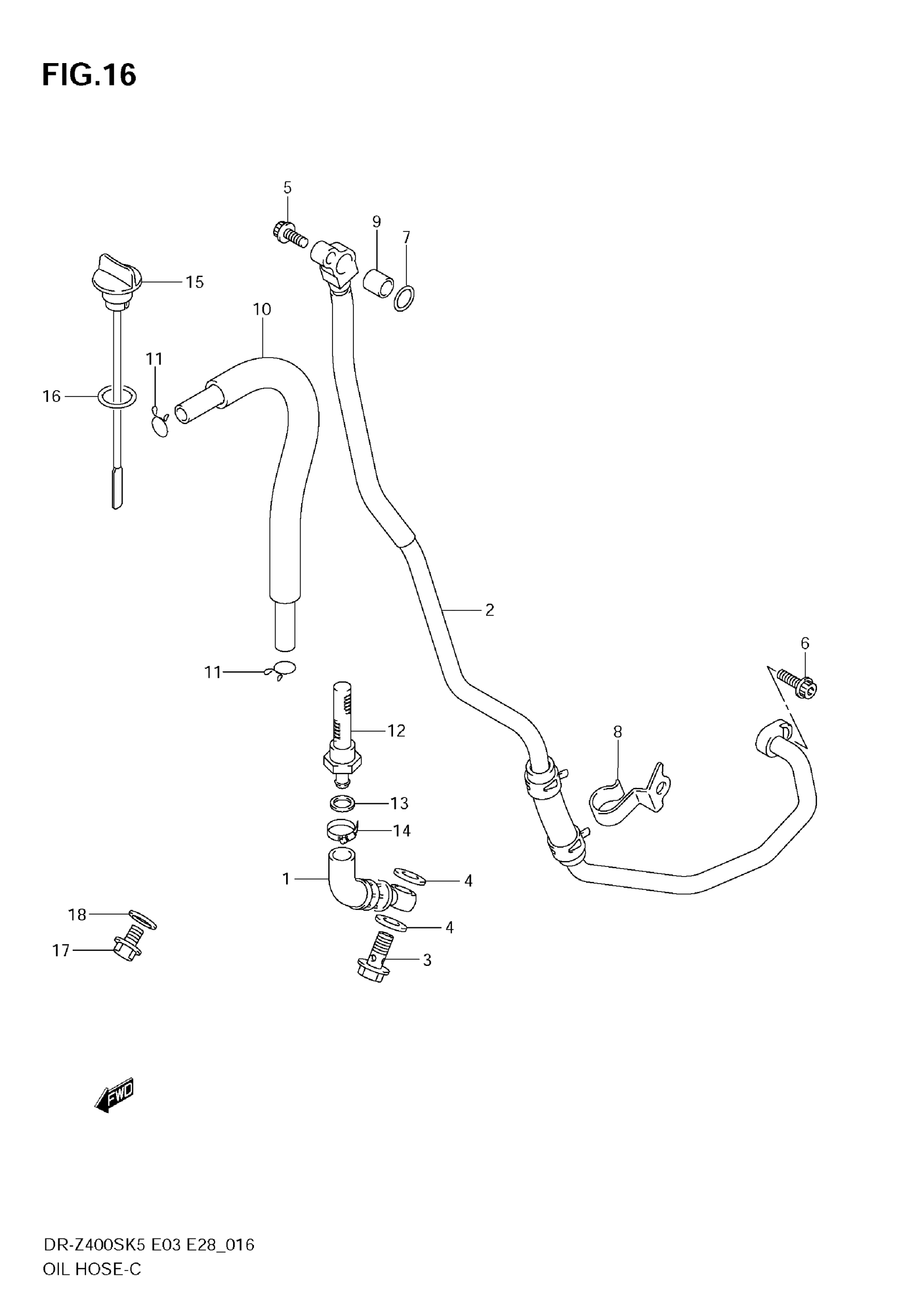

Suzuki DR-Z400S (2009) OIL HOSE Diagram

#

Description
Price

1

HOSE, OIL TANK RH

16460-29F10

$83.83

2

HOSE, OIL TANK LH

16470-29F20

$178.10

3

BOLT, UNION (14X27)

09360-14012

$10.10

4

.GASKET (14X20X1.5)

09168-14015

$2.09

5

BOLT, OIL TANK HOSE UPPER

07120-0616B

$2.56

6

BOLT, OIL TANK HOSE

07120-0620B

$2.82

7

O RING (D:2.4,ID:11.0)

09280-11005

$4.06

8

CLAMP, OIL TANK HOSE

16491-29F11

$8.03

9

PIN, OIL TANK HOSE

04211-11129

$1.82

10

HOSE, OIL OVER FLOW

16480-29F00

$26.85

11

CLIP

09401-12403

$1.84

12

STRAINER, FRAME HEAD UNDER

16550-29F00

$85.42

13

GASKET

09168-18007

$2.95

14

CLAMP

09402-22512

$9.37

15

GAUGE, OIL LEVEL

16561-29F10

$10.46

16

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

17

PLUG, DRAIN

09247-10008

$2.01

18

GASKET

09168-10002

$1.96
