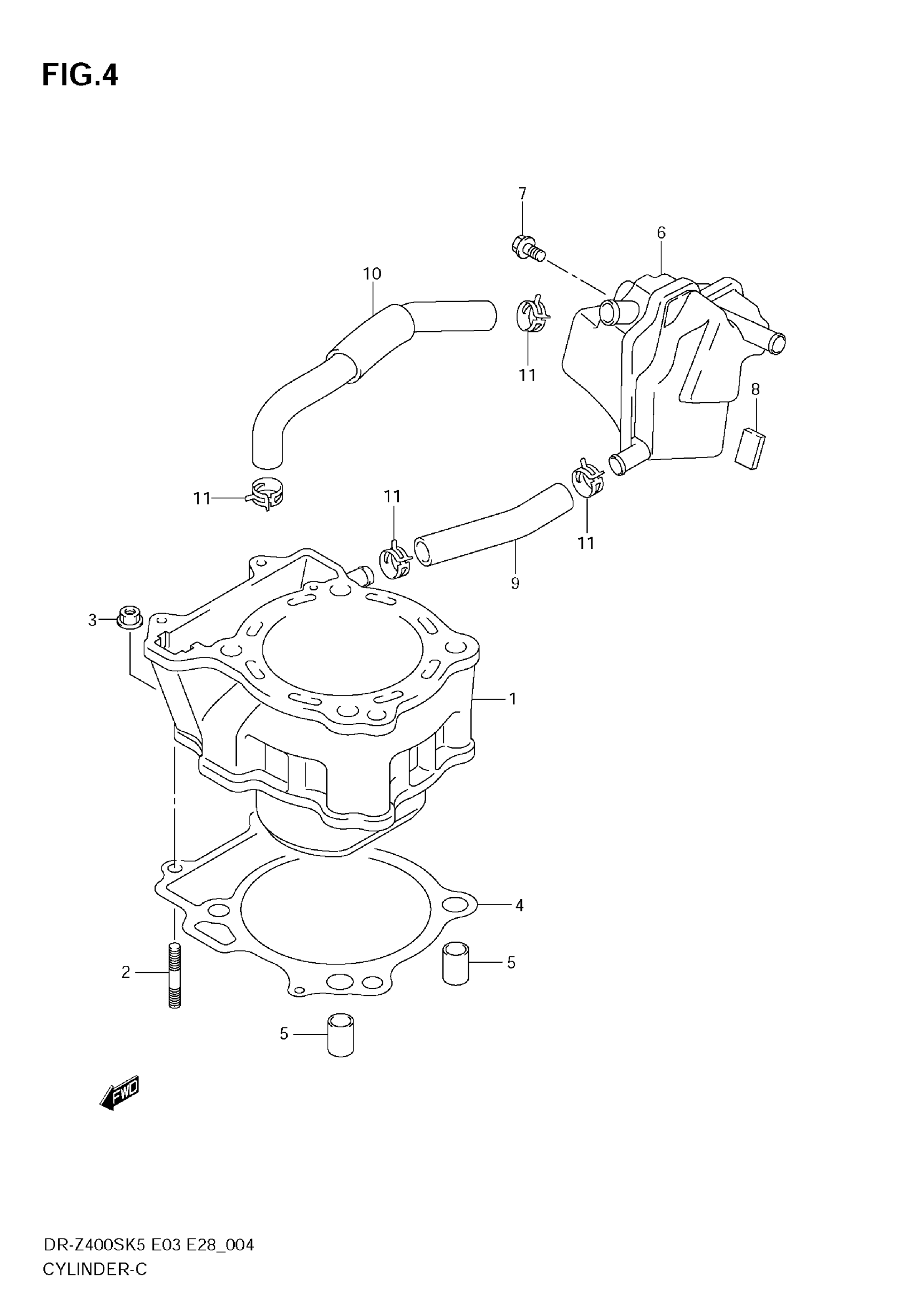

Suzuki DR-Z400S (2009) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-29F20-0F0

$1,061.57

2

BOLT,STUD

01421-0625B

$2.50

3

NUT

08316-1006B

$2.57

4

GASKET, CYLINDER

11241-29F11

$22.35

5

PIN

04211-13189

$2.25

6

TANK, OIL RETURN

11330-29F00

$45.35

7

BOLT | MODEL K5/K6 This part replaces 01550-06103.

01550-0610A

$2.01

7

BOLT | MODEL K7/K8/K9

01550-0610A

$2.01

8

CUSHION

33651-37000

$4.28

9

HOSE, BREATHER

11332-29F00

$10.85

10

HOSE, BREATHER

11333-29F00

$21.15

11

CLIP

09401-15404

$2.32
