2007 Suzuki DR-Z400E Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

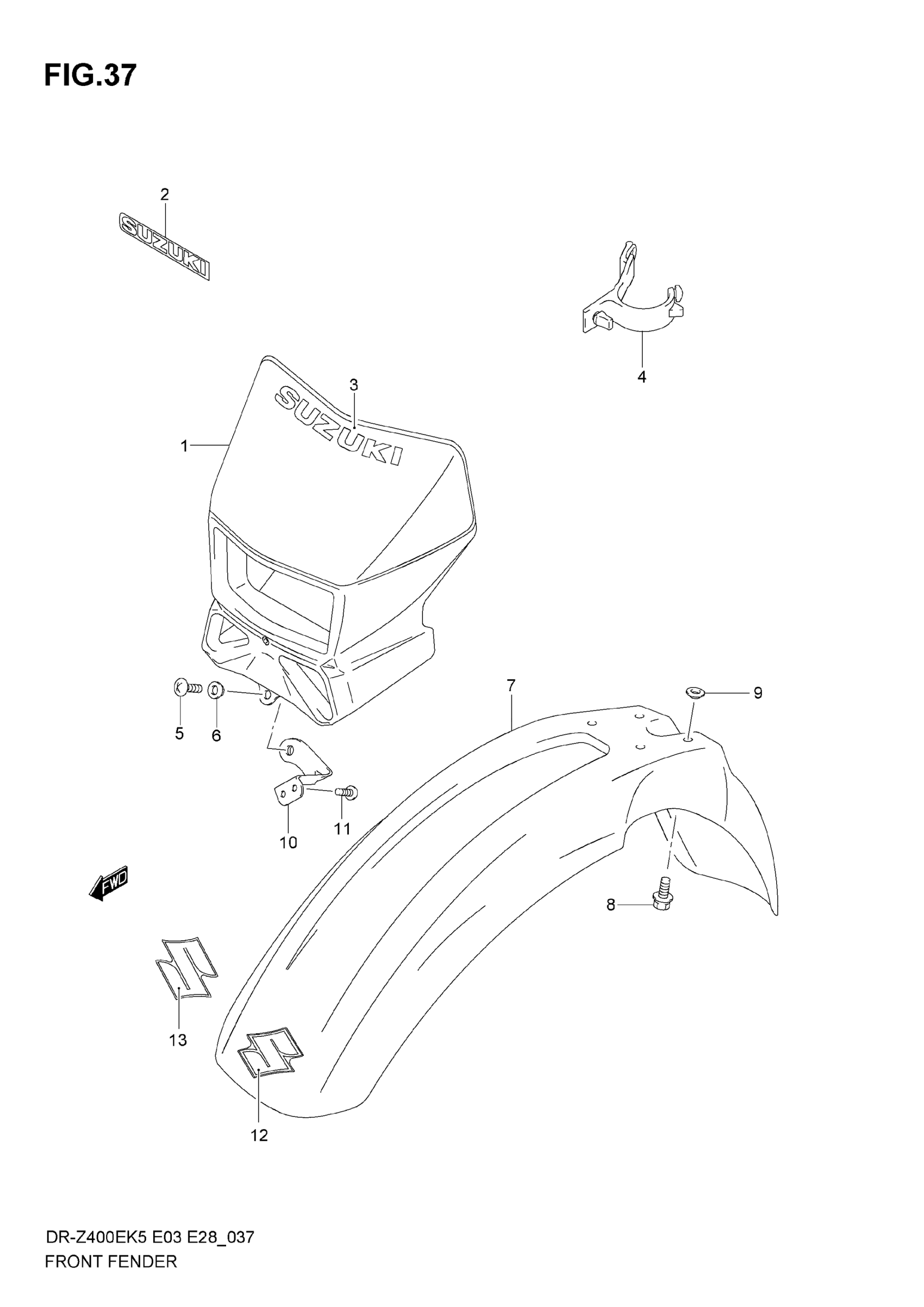

2007 Suzuki DR-Z400E Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEAD LAMP (WHITE) | MODEL K5

51810-29F10-30H

1
Out of stock

1

COVER, HEAD LAMP (YELLOW) | MODEL K6 This part replaces 51810-29F10-YU1.

51810-29F70-YU1

1
Out of stock

1

COVER, HEAD LAMP (YELLOW) | MODEL K7

51810-29F70-YU1

1
Out of stock

2

EMBLEM, SUZUKI | MODEL K5

68721-29F00-8YM

1
Out of stock

3

TAPE | MODEL K6

68725-29F20-CLM

1
Out of stock

3

TAPE | MODEL K7

68725-29F20-8YM

1
Out of stock

4

BAND

51850-29F00

2
Out of stock

5

SCREW, LOWER

09136-05048

1
Out of stock

6

WASHER

09169-05012

1
Out of stock

7

1

$155.02

In stock

8

BOLT

09116-06170

4

$2.68

In stock

9

WASHER

09169-06073

4
Out of stock

10

BRACKET

51860-29F10

1
Out of stock

11

SCREW

09139-06083

1
Out of stock

12

EMBLEM, "S" | MODEL K5

68151-37F00-AZT

1
Out of stock

13

EMLBEM "S" | MODEL K6/K7 This part replaces 68151-07G10-YCF.

68151-07G11-YCF

1
Out of stock
