Description

Price

1

COVER, FRAME RH (WHITE) | MODEL K5/K6 This part replaces 47111-29F00-30H.

47111-29FB0-30H

$104.42

1

COVER, FRAME RH (WHITE) | MODEL K7

47111-29FB0-30H

$104.42

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (WHITE) | MODEL K5/K6 This part replaces 47211-29F10-30H.

47211-29FA0-30H

$64.78

3

COVER, FRAME LH (WHITE) | MODEL K7

47211-29FA0-30H

$64.78

4

BOLT | MODEL K5 This part replaces 01547-06163.

01547-0616B

$2.50

4

BOLT (6X12) | MODEL K6/K7

09103-06273

$2.31

5

WASHER | MODEL K5

09169-06041

$2.02

5

WASHER | MODEL K6/K7 This part replaces 09169-06028.

09169-06041

$2.02

6

CUSHION, RH

09320-06504

$4.61

7

CUSHION, MUFFLER

09321-10018

$4.33

8

CUSHION, COVER FRONT LH

47161-29F00

$8.12

9

CUSHION, COVER FRONT RH

71762-65G10

$9.35

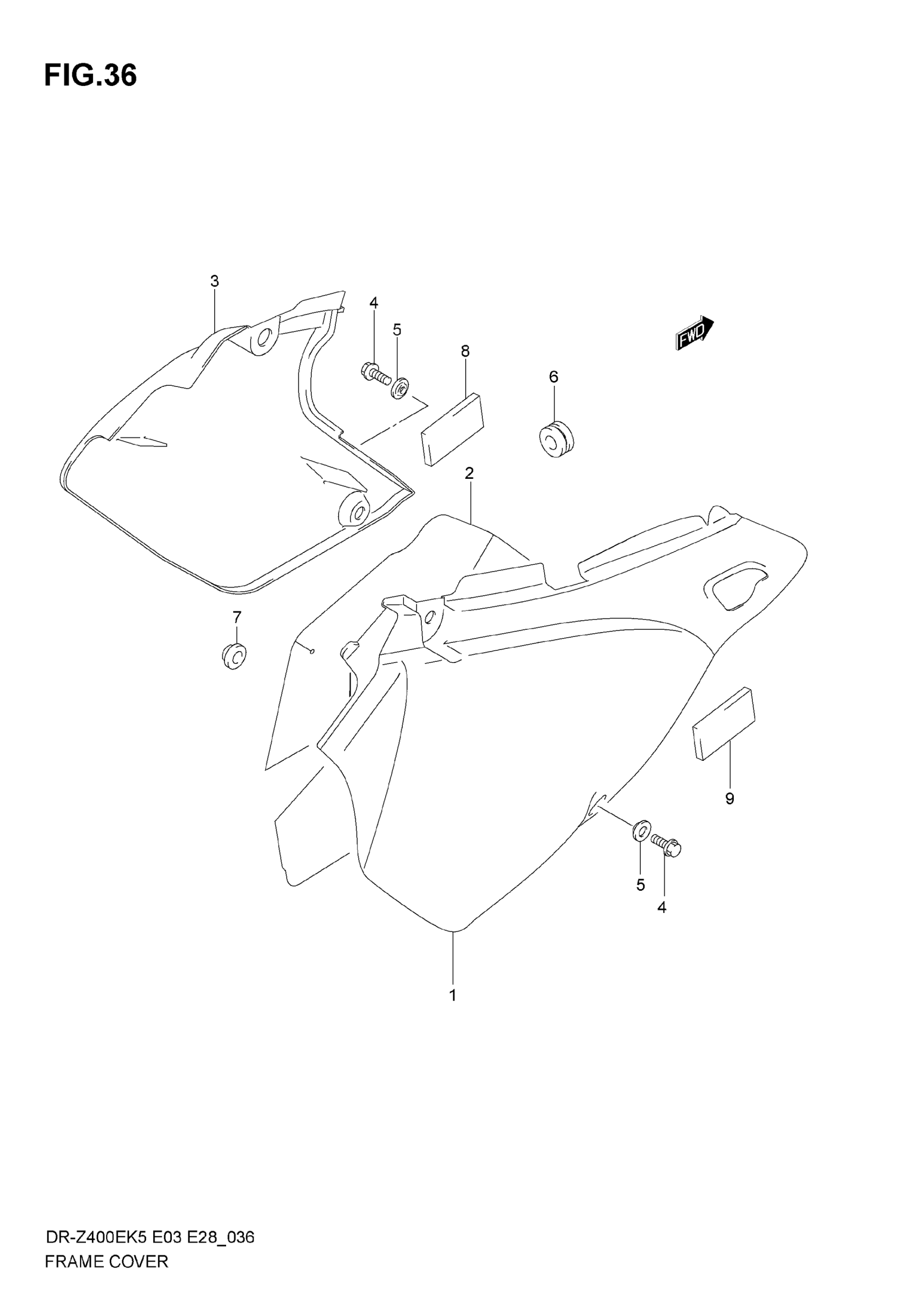

Suzuki DR-Z400E (2007) FRAME COVER Diagram
