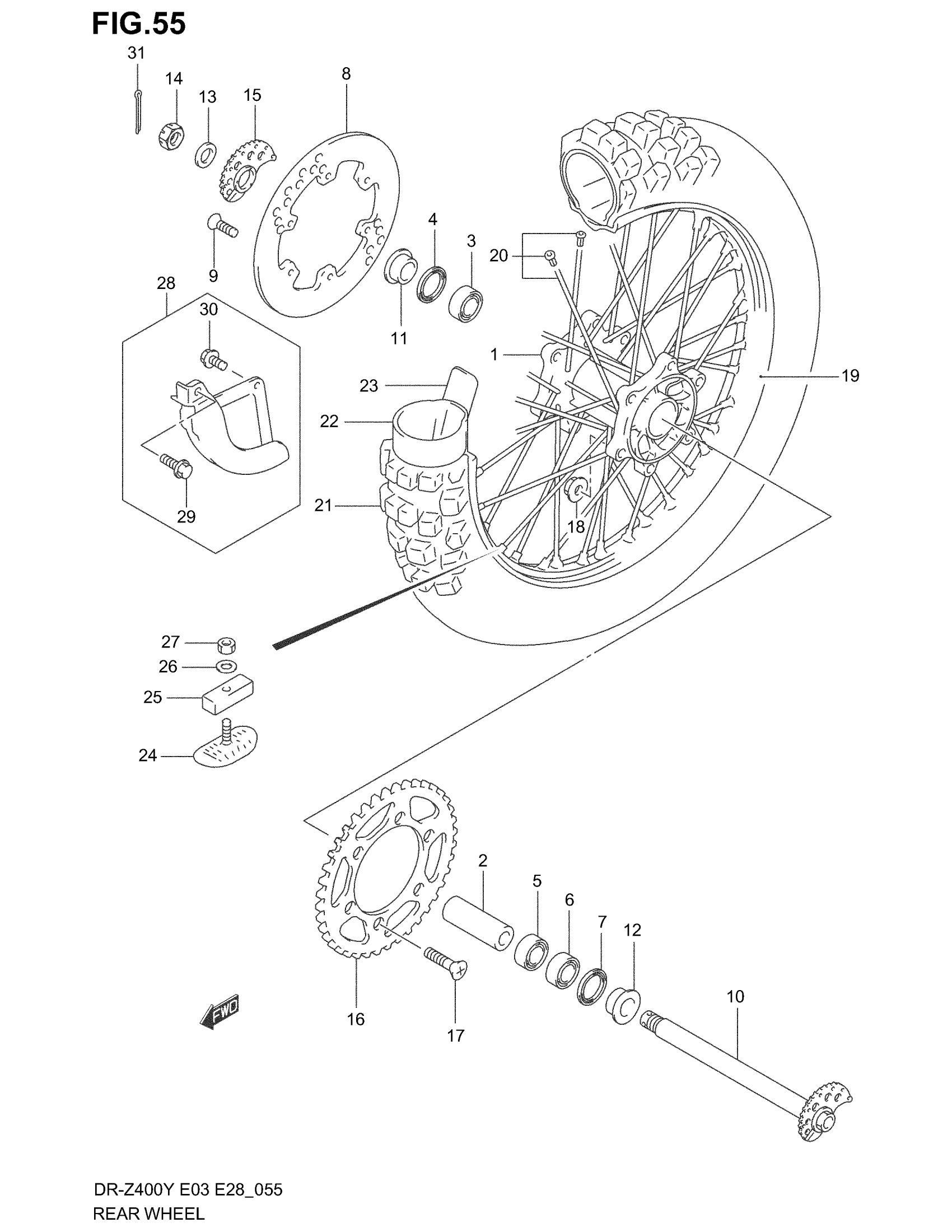

Find the part on the Rear Wheel diagram for your 2004 Suzuki DR-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki DR-Z400 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-29F00

1
Out of stock

2

SPACER, BEARING

64731-29F00

1

$35.88

In stock

3

BEARING, RH

08133-60047

1
Out of stock

4

1

$7.86

In stock

5

BEARING, LH

08133-60047

1
Out of stock

6

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

7

SEAL, LH (29X47X5)

09283-29006

1

$11.17

In stock

8

DISC, REAR BRAKE

69211-43D00

1

$333.07

In stock

9

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

6
Out of stock

10

AXLE, REAR

64710-29F10

1
Out of stock

11

SPACER, RH

64751-28E20

1

$27.23

In stock

12

SPACER, LH

64751-28E20

1

$27.23

In stock

13

WASHER

09160-19022

1

$4.74

In stock

14

NUT This part replaces 08314-40183.

08314-4018A

1
Out of stock

15

ADJUSTER, CHAIN RH

61410-29F00

1

$29.98

In stock

16

SPROCKET, REAR (NT:47-520)

64511-29F00

1
Out of stock

17

SCREW (8X30.5)

09120-08010

6
Out of stock

18

NUT

08319-31087

6
Out of stock

19

RIM, REAR WHEEL (2.15X18)

65311-29F10

1
Out of stock

20

1

$214.32

In stock

21

TIRE, REAR (110/100-18 64M) (DUNLOP)

65110-29F00

1
Out of stock

22

1

$85.57

In stock

23

PROTECTOR, INNER TUBE

65261-44AF0

1

$9.25

In stock

24

STOPPER, BEAD

65270-28E00

1
Out of stock

25

CUSHION, BEAD STOPPER

65271-27C00

1
Out of stock

26

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

27

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

28

1

$28.35

In stock

29

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

30

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

31

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock
