Description

Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 11

61000-29F00

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$20.38

3

BEARING, OUTER (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.52

6

.PLATE RR SWING ARM AXLE

61128-29E00

$24.33

7

SCREW (5X8)

09126-05009

$2.29

8

BEARING, ROD (20X27X15)

09263-20086

$14.87

9

SEAL, ROD (19X27X4)

62624-14500

$5.65

10

STOPPER, CHAIN ADJUSTER

61431-13E00

$13.03

11

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

12

SPACER, PIVOT OUTER

61250-44E00

$22.08

13

SPACER, PIVOT INNER

61252-36E00

$60.85

14

SHAFT, PIVOT

61211-29F00

$92.57

15

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

16

NUT

09159-16007

$11.37

17

BUFFER, CHAIN TOUCH DEFENSE

61273-29F00

$60.54

18

SCREW This part replaces 02112-05083.

02112-0508A

$1.43

19

WASHER

09169-05022

$3.21

20

GUIDE, CHAIN This part replaces 61341-36E30.

61341-35G00

$43.99

21

PLATE, CHAIN GUIDE This part replaces 61342-36E30.

61342-37F00

$72.75

22

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

23

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

24

NUT This part replaces 08319-31063.

08319-3106A

$2.01

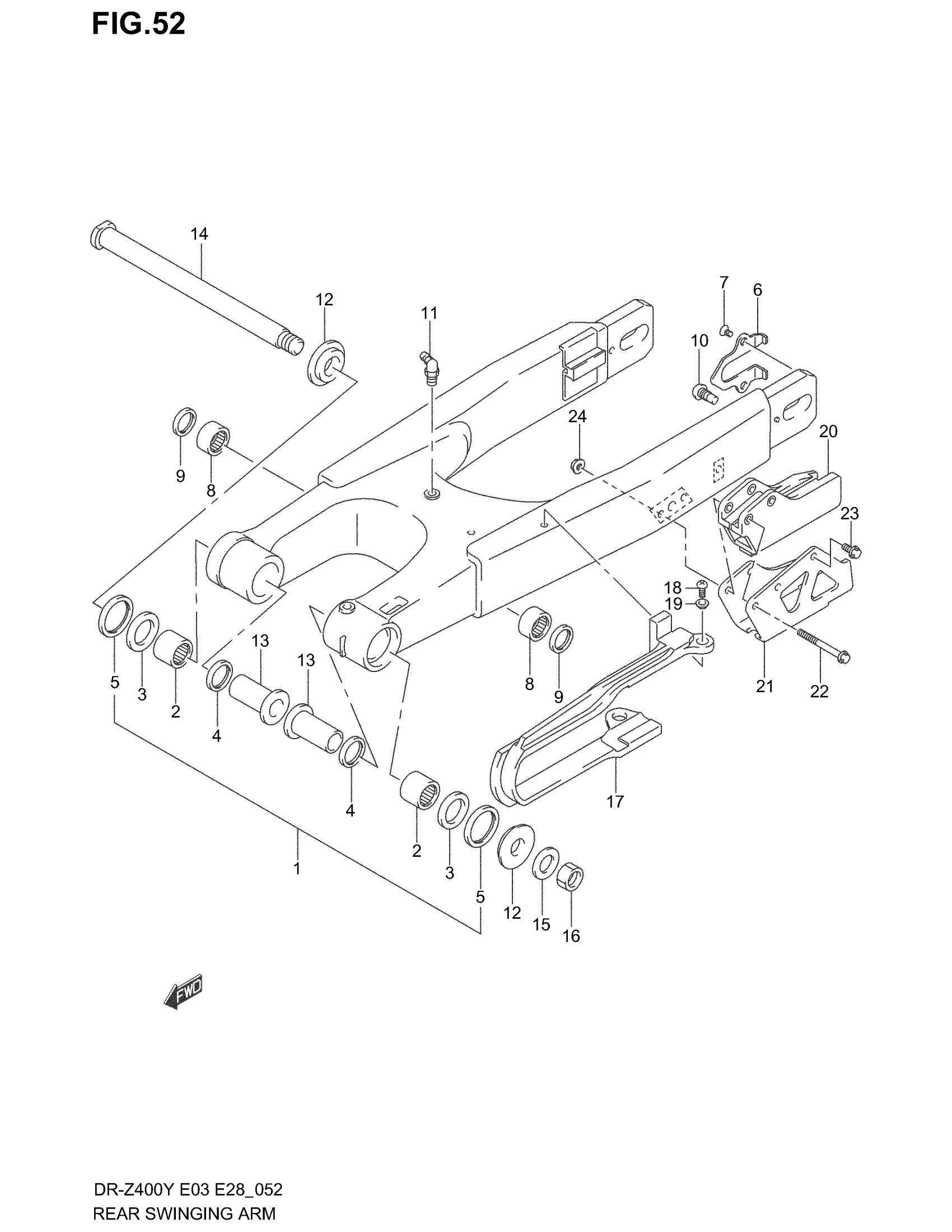

Suzuki DR-Z400 (2004) REAR SWINGING ARM Diagram
