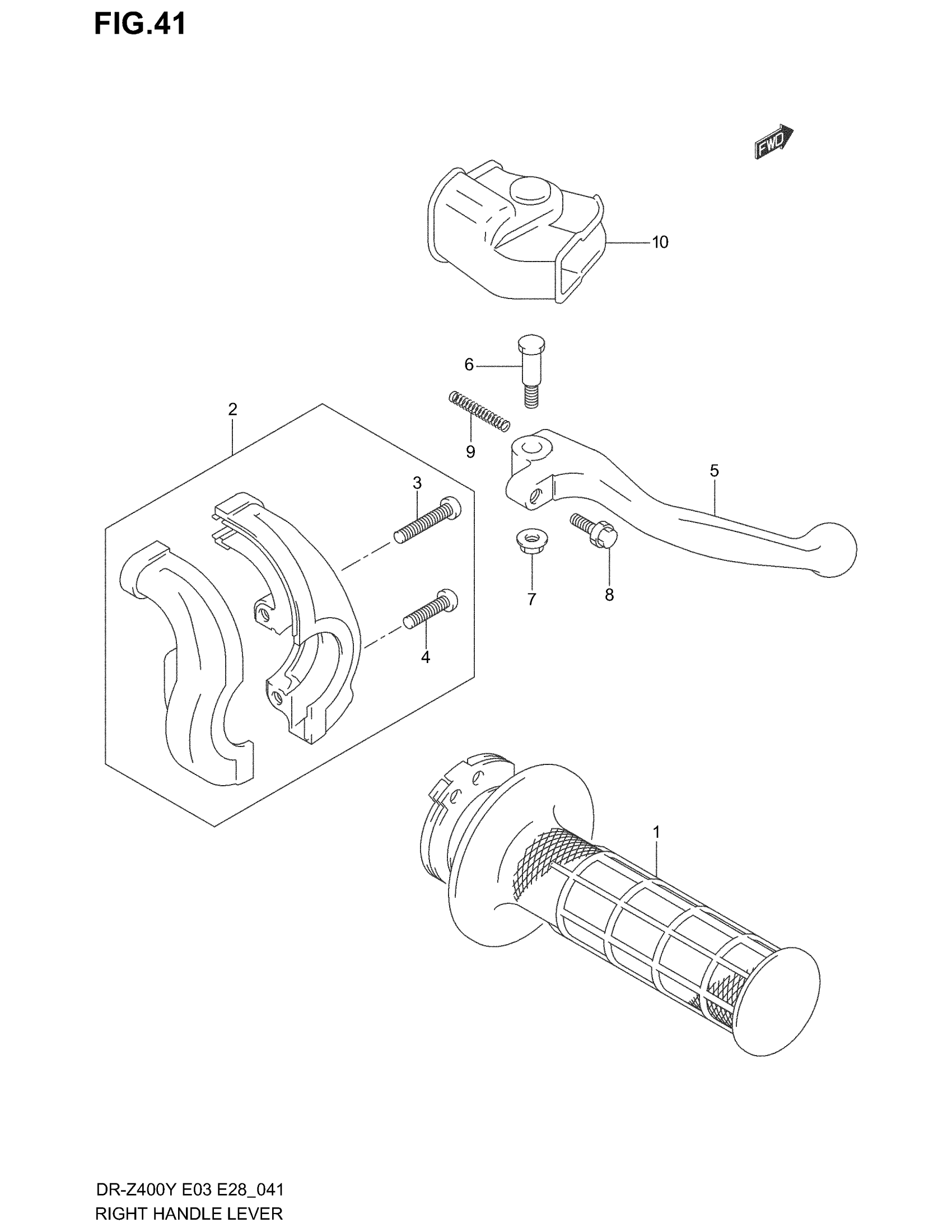

Suzuki DR-Z400 (2004) RIGHT HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D11

$50.22

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$93.58

3

SCREW, UPPER (5X25)

09125-05066

$1.52

4

SCREW This part replaces 02112-05203.

02112-0520B

$1.86

5

LEVER, BRAKE

57421-36E10

$43.33

6

BOLT, BRAKE LEVER

57431-14500

$5.75

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

BOLT, ADJUSTER

57430-36E00

$8.98

9

SPRING, RETURN

57318-14502

$4.09

10

COVER, RH

57341-36E00

$22.50
