2007 Suzuki DR-Z250 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

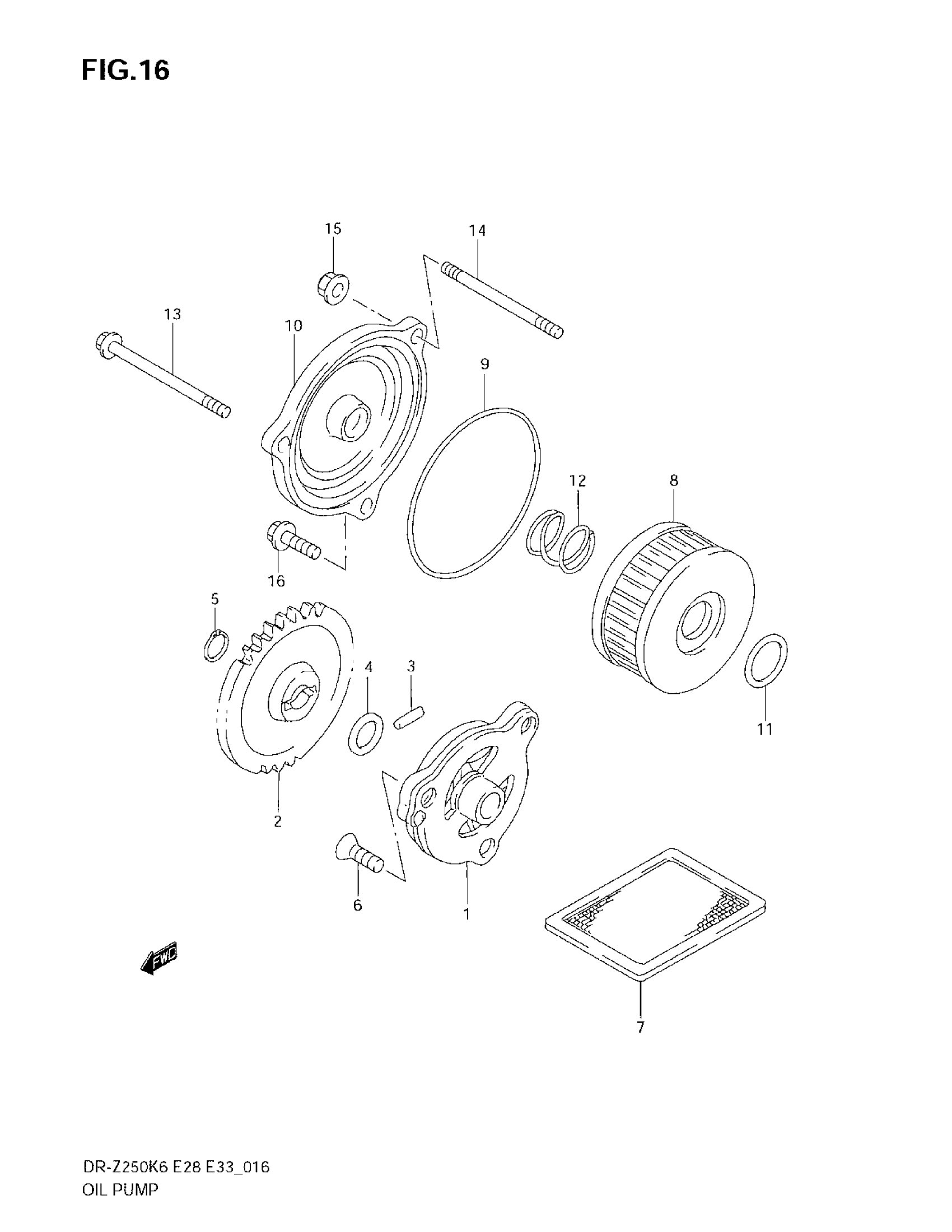

2007 Suzuki DR-Z250 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENGINE OIL

16400-13E00

1
Out of stock

2

GEAR, OIL PUMP DRIVEN (NT:33)

16331-38200

1
Out of stock

3

PIN (4X15.8)

09261-04009

1
Out of stock

4

SHIM (10X18X0.5)

09181-10158

1
Out of stock

5

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

6

SCREW This part replaces 02122-06163.

02122-0616A

3
Out of stock

7

STRAINER,ENGINE This part replaces 16520-30A00.

16520-30A01

1
Out of stock

8

FILTER, ENGINE OIL

16510-38240

1
Out of stock

9

.O RING (D:2.4,ID:73)

09280-72001

1
Out of stock

10

CAP, OIL FILTER

16512-12E00

1
Out of stock

11

O-RING (D:2.4,ID:15.8)

09280-15007

1
Out of stock

12

SPRING

09440-21006

1
Out of stock

13

BOLT | MODEL K6 This part replaces 01547-06753.

01547-0675B

1
Out of stock

13

BOLT | MODEL K7

01547-0675A

1
Out of stock

14

BOLT, OIL FILTER CAP STUD

09108-06127

1
Out of stock

15

NUT | MODEL K6 This part replaces 08313-20063.

08313-2006A

1
Out of stock

15

NUT | MODEL K7

08313-2006A

1
Out of stock

16

..BOLT | MODEL K6 This part replaces 01547-06203.

01547-0620B

1
Out of stock

16

BOLT | MODEL K7

01547-0620A

1
Out of stock
