2007 Suzuki DR-Z250 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

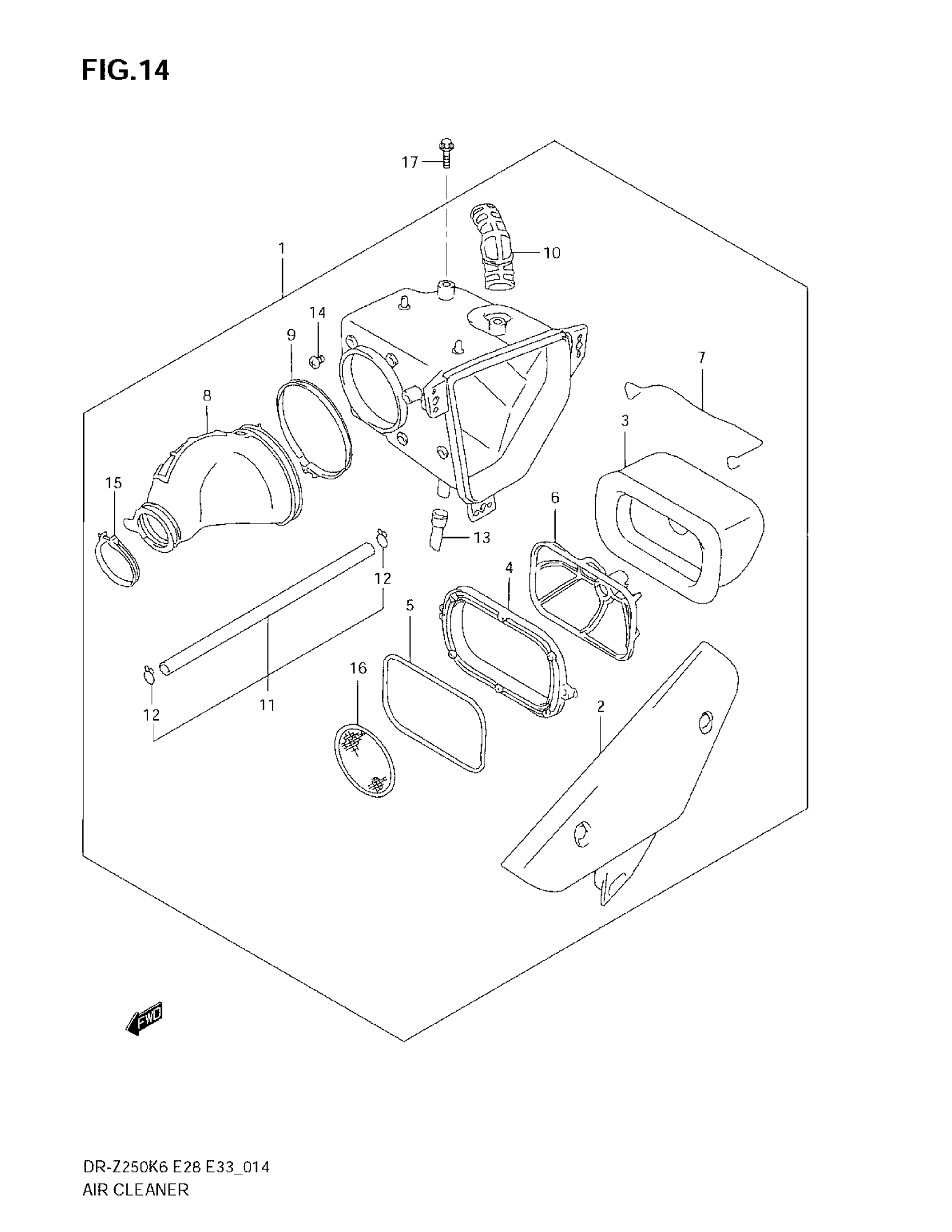

2007 Suzuki DR-Z250 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL K6 E28 This part replaces 13700-13E30-30H.

13700-13E30

1
Out of stock

1

CLEANER ASSY, AIR | MODEL K6 E33

13700-13E40-30H

1
Out of stock

1

CLEANER ASSY, AIR | MODEL K7 E28

13700-13E50-30H

—
Out of stock

1

CLEANER ASSY, AIR | MODEL K7 E33; Includes Item(s) 2 - 16

13700-13E60-30H

1
Out of stock

2

CAP, CLEANER | MODEL K6

13740-13E00

1
Out of stock

2

CAP, CLEANER | MODEL K7

13740-13E10-30H

1
Out of stock

3

FILTER

13780-13E00

1
Out of stock

4

BASE, FILTER

13799-13E00

1
Out of stock

5

GASKET

13795-13E00

1
Out of stock

6

HOLDER, FILTER

13791-13E01

1
Out of stock

7

SPRING

13820-13E00

1
Out of stock

8

TUBE, OUTLET | E28

13881-13E00

1
Out of stock

8

TUBE, OUTLET | E33

13881-13E20

1
Out of stock

9

CLAMP

13826-43B00

1
Out of stock

10

TUBE, INLET

13891-13E30

1
Out of stock

11

TUBE, BREATHER

13850-13E30

1
Out of stock

12

CLIP

09401-14301

2
Out of stock

13

.CAP, DRAIN This part replaces 13681-19B00.

13681-19B01

1
Out of stock

14

SCREW, FRONT This part replaces 03242-05103.

03241-0510A

6
Out of stock

15

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

16

TRAP, FRAME

13810-14D02

1
Out of stock

17

BOLT This part replaces 01580-06123.

01580-0612A

3
Out of stock
