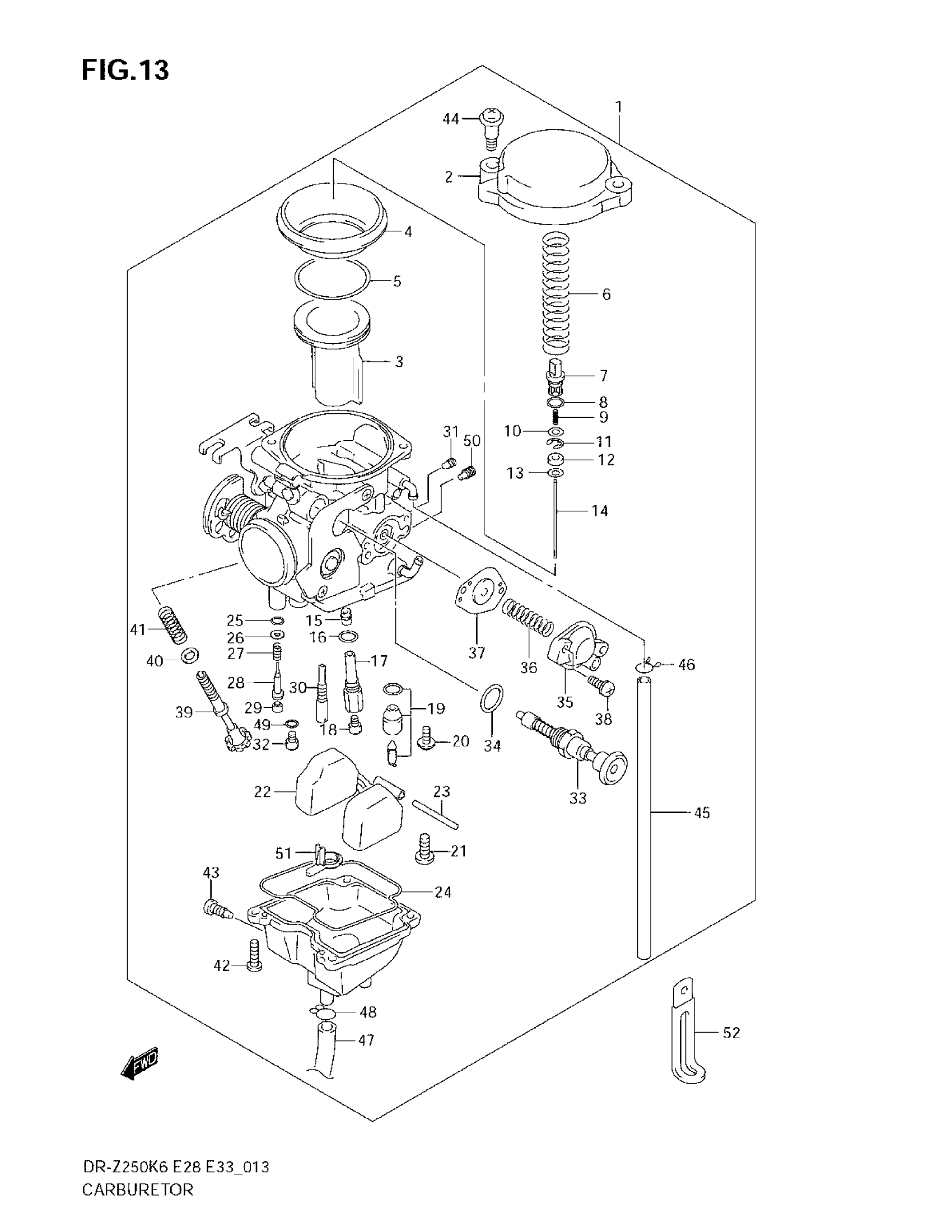

Suzuki DR-Z250 (2007) CARBURETOR (E33) Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 51

13200-13E41

$694.17

2

DIAPHRAGM COVER

13502-19E00

$31.86

3

VALVE, PISTON

13501-13E20

$70.88

4

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

$25.98

5

RING

13504-16E00

$7.03

6

SPRING

13573-13E20

$15.43

7

HOLDER

13418-33E00

$5.20

8

O RING (D:1.9 ID:4.8)

09280-05004

$2.17

9

SPRING

13481-13F00

$4.92

10

WASHER

13382-19E00

$3.35

11

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.89

12

RING

13387-13F00

$7.48

13

WASHER

13291-29FA0

$2.80

14

NEEDLE, JET | 5DH46-1

13383-13E40

Unavailable

15

JET

09494-00939

$56.43

16

.O RING This part replaces 13246-43010.

13246-43011

$3.97

17

HOLDER, JET

13385-13E40

Unavailable

18

JET,POWER(132.5 This part replaces 09491-26013.

09491-26019

$13.52

19

VALVE ASSY,NEED This part replaces 13370-04F00.

13370-04F01

$71.12

20

SCREW

13602-05A10

$3.26

21

SCREW This part replaces 02112-04083.

02112-0408A

$1.09

22

FLOAT ASSY

13250-04F00

$31.80

23

.PIN, FLOAT

13254-01010

$3.41

24

GASKET

13258-04F00

$9.06

25

O-RING This part replaces 13295-29900.

13295-29901

$3.97

26

WASHER

13291-29900

$1.87

27

SPRING,THROTTLE SCREW

13268-48700

$3.97

28

ADJUSTER

13279-13E40

Unavailable

29

PLUG

13281-05A00

$4.21

30

JET, PILOT (#12.5)

09492-12008

$13.05

31

JET, POWER (80)

09492-80007

Unavailable

32

JET, MAIN (55)

09491-55004

$12.38

33

PLUNGER ASSY

13411-13E40

$46.98

34

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

35

COVER ASSY

13502-10F00

$44.80

36

SPRING

13271-13F00

$5.17

37

DIAPHRAGM ASSY This part replaces 13480-13F00.

13480-13F01

$23.17

38

SCREW

13601-04148

$2.80

39

ADJUSTER

13267-13D01

Unavailable

40

PACKING

13285-07F00

$3.10

41

SPRING

13342-82370

$8.77

42

SCREW

02112-04107

$1.55

43

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

44

SCREW

13247-33E00

$2.80

45

HOSE

13686-07F00

Unavailable

46

CLIP

13671-06A10

Unavailable

47

HOSE(4.5X8X650) This part replaces 13683-20B00.

13683-20B01

$23.40

48

CLIP

09401-08410

$1.88

49

O RING

13387-13E40

$6.00

50

JET

09492-30013

Unavailable

51

RING

13387-29FA1

$15.68

52

CLAMP

09404-06429

$1.82
