2005 Suzuki DR-Z250 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

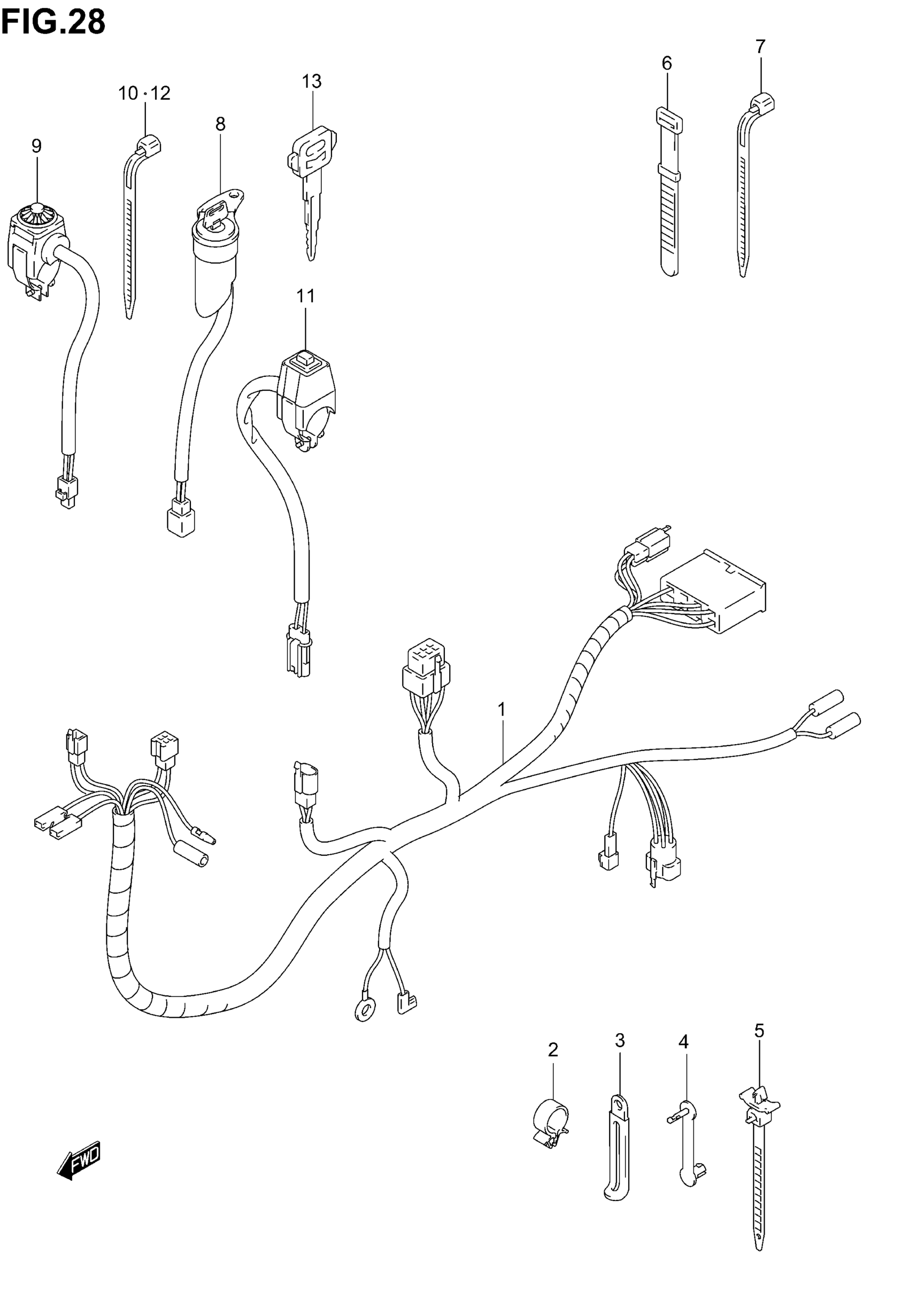

2005 Suzuki DR-Z250 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL K1

36610-13EA0

1
Out of stock

1

HARNESS, WIRING | MODEL K2/K3/K4/K5

36610-13EB0

1
Out of stock

2

1

$1.96

In stock

3

CLAMP (L:45)

09404-06429

1
Out of stock

4

CLAMP

09407-03401

1
Out of stock

5

CLAMP (L:90)

09407-11402

1

$1.96

In stock

6

CLAMP (L:120)

09407-12402

2
Out of stock

7

CLAMP (L:125)

09407-14403

5
Out of stock

7

CLAMP (L:235)

09407-25401

1
Out of stock

8

SWITCH ASSY, IGNITION

37110-13E01

1

$159.87

In stock

9

SWITCH ASSY, STARTER

37310-29F00

1

$83.02

In stock

10

CLAMP (L:120) | MODEL K1

09407-12402

2
Out of stock

11

SWITCH ASSY,ENGINE STOP

37820-36E00

1
Out of stock

12

CLAMP (L:120)

09407-12402

1
Out of stock

13

1

$10.16

In stock

13

1

$13.13

In stock

13

1

$13.65

In stock

13

1

$10.54

In stock
