2005 Suzuki DR-Z250 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

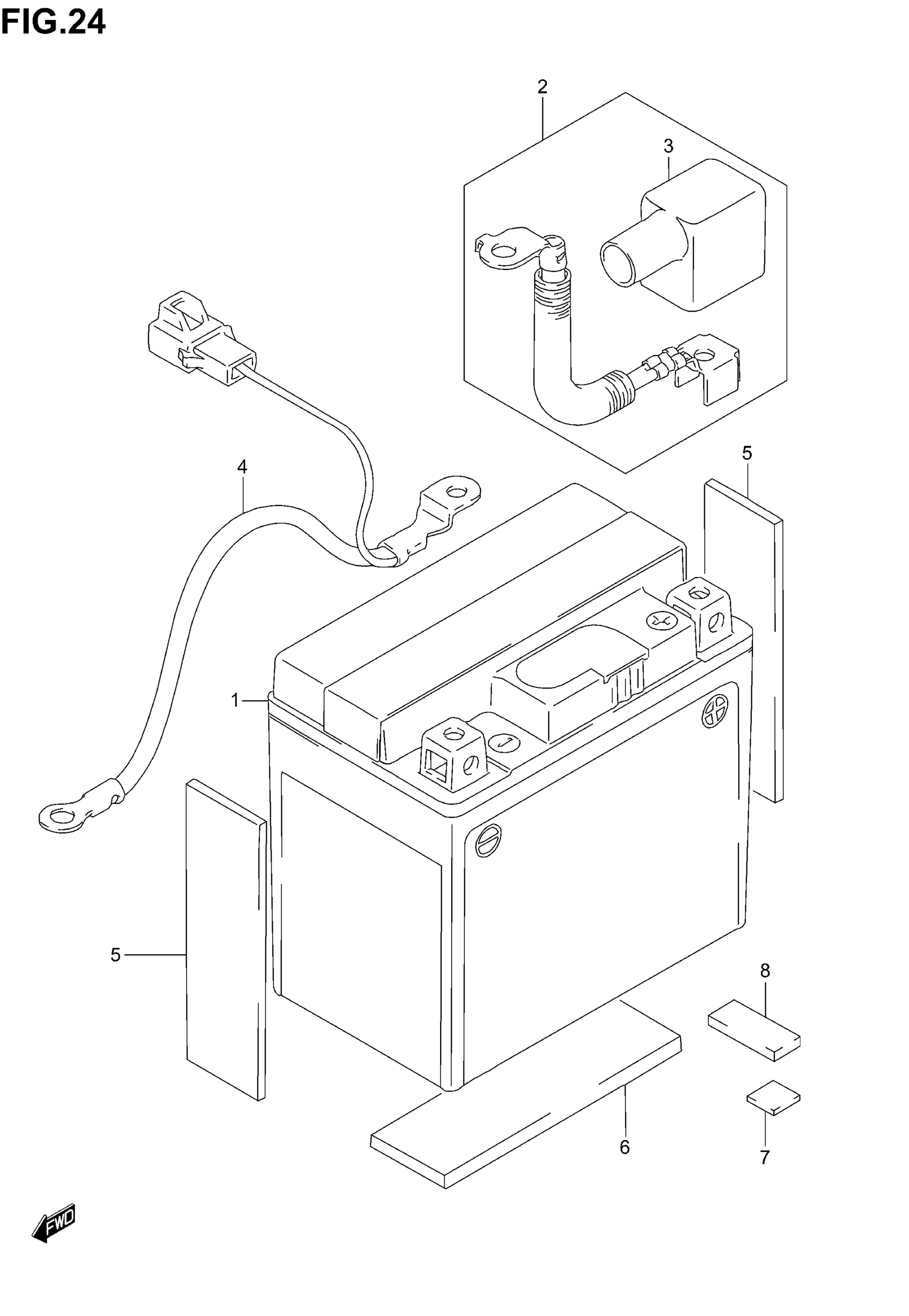

2005 Suzuki DR-Z250 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (YTX5L-BS,12V4AH | 12V,4.5AH This part replaces 33610-13E20.

33610-40B20

1
Out of stock

2

WIRE, BATTERY (+) | Includes Item(s) 3

33820-13E00

1
Out of stock

3

CAP, BATTERY (+)

33624-15D00

1
Out of stock

4

WIRE, BATTERY (-)

33860-13E01

1
Out of stock

5

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

4
Out of stock

6

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (20X90)(30X40)

33651-37000

2
Out of stock

7

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

1
Out of stock

8

PROTECTOR (80X80X2.0) | CUT AS REQUIRED PROFILE (30X80)

33652-07D00

1
Out of stock
