2005 Suzuki DR-Z250 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2005 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

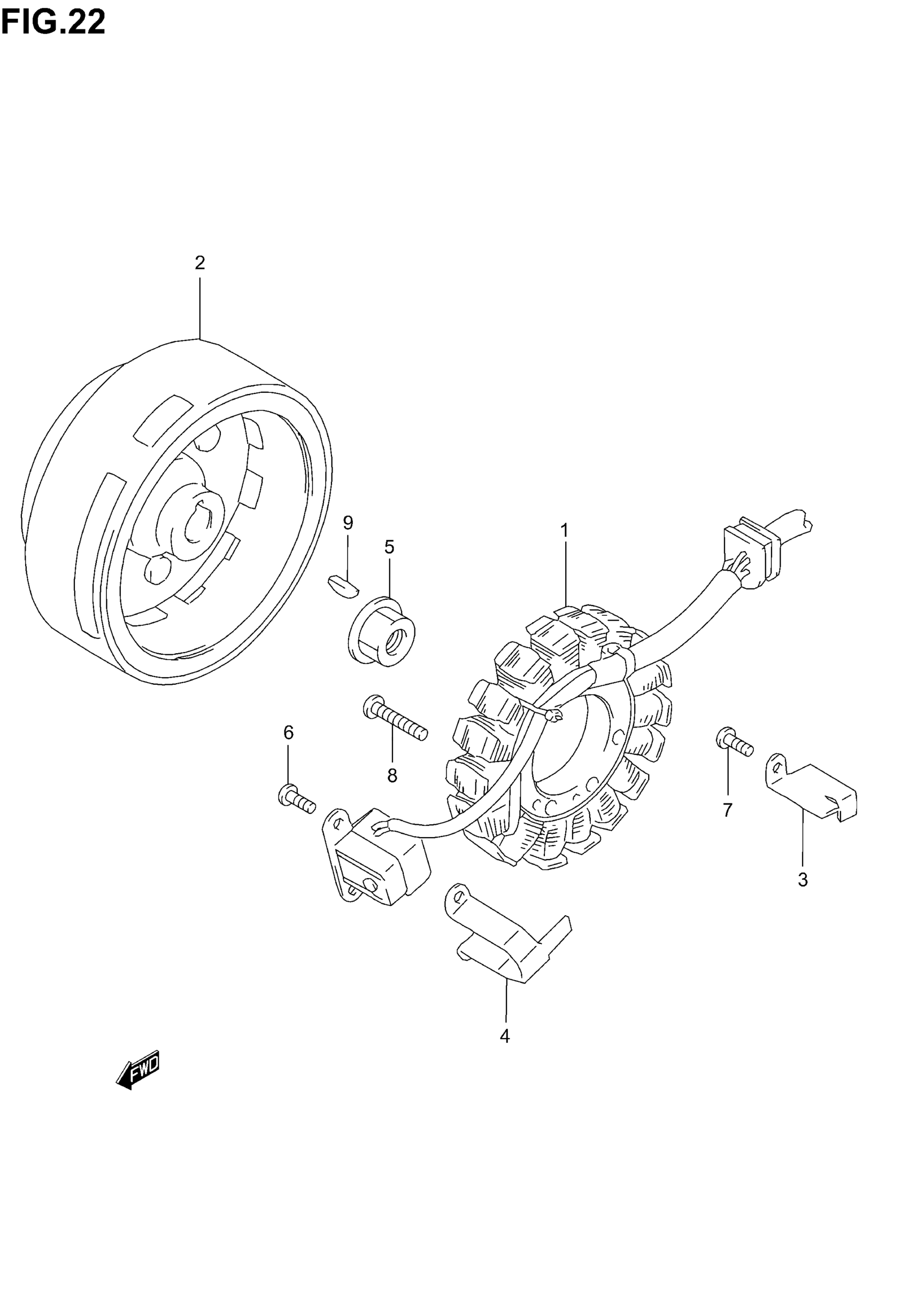

2005 Suzuki DR-Z250 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY This part replaces 32101-13E02.

32101-13E03

1
Out of stock

2

ROTOR ASSY

32102-13E00

1
Out of stock

3

CLAMP, MAGNETO LEAD NO.1

32371-13E10

1
Out of stock

4

CLAMP, MAGNETO LEAD WIRE

32371-14D01

1
Out of stock

5

NUT This part replaces 08316-10123.

08316-1012A

1
Out of stock

6

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

2
Out of stock

7

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

1
Out of stock

8

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

3
Out of stock

9

KEY

09420-04008

1
Out of stock
