2009 Suzuki DR-Z125 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2009 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

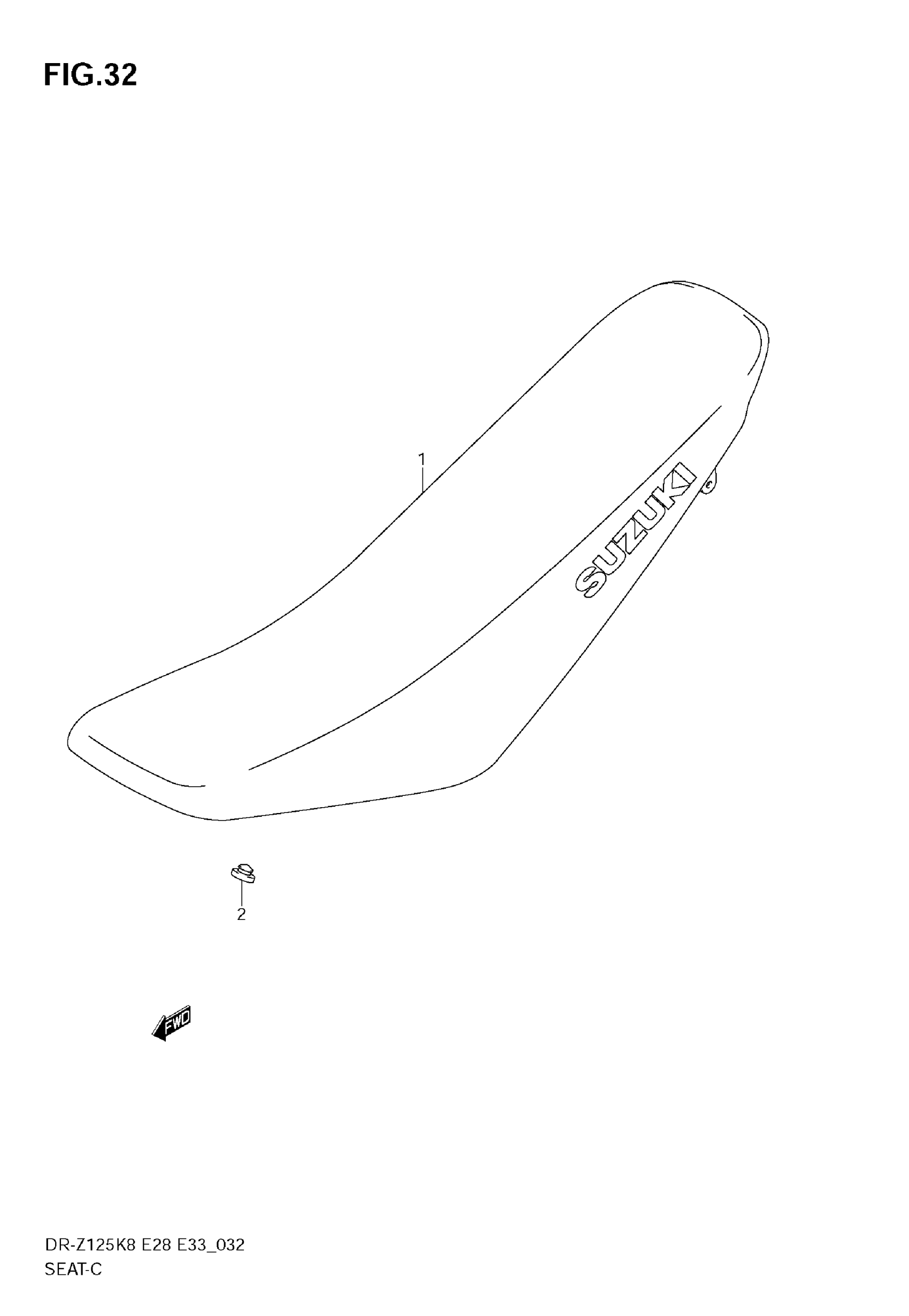

2009 Suzuki DR-Z125 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | MODEL K8:FOR YU1

45100-08G20-DUZ

1
Out of stock

1

SEAT ASSY | MODEL K8:FOR 019

45100-08G20-DUY

1
Out of stock

1

SEAT ASSY | MODEL K9:FOR YU1

45100-08G40-DVA

1
Out of stock

1

SEAT ASSY | MODEL K9:FOR 019; Includes Item(s) 2

45100-08G40-GHA

1
Out of stock

2

CUSHION

09329-10001

2

$2.56

In stock
