2009 Suzuki DR-Z125 Frame Cover Diagram

← All diagrams

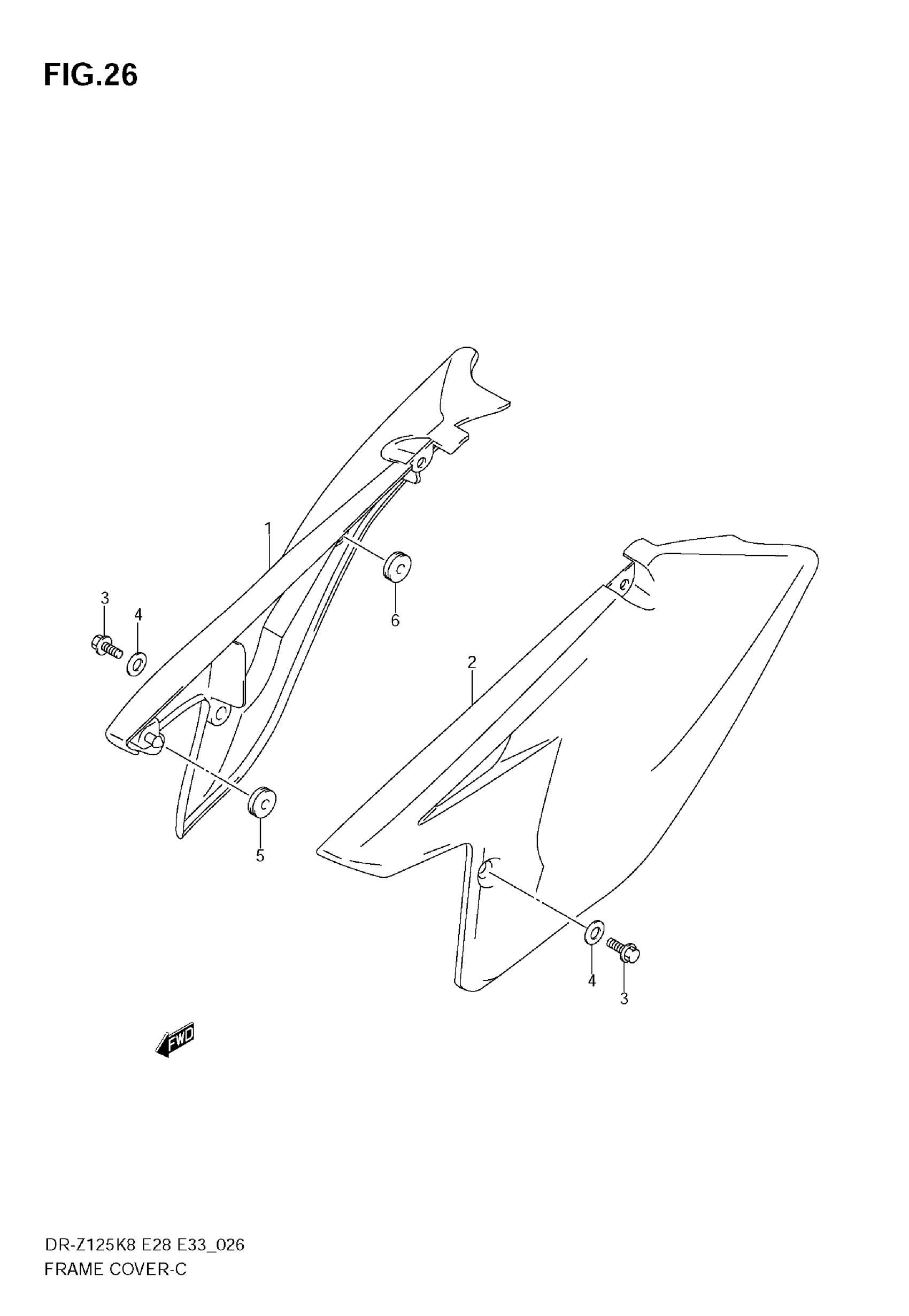

Find the part on the Frame Cover diagram for your 2009 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki DR-Z125 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE)

47111-08G50-30H

1
Out of stock

2

COVER, FRAME LH (WHITE)

47211-08G50-30H

1
Out of stock

3

BOLT, REAR

01547-0616A

4
Out of stock

4

4

$2.35

In stock

5

CUSHION, RH FRONT

09320-08028

2
Out of stock

6

CUSHION, MUFFLER

47161-08G00

1
Out of stock
