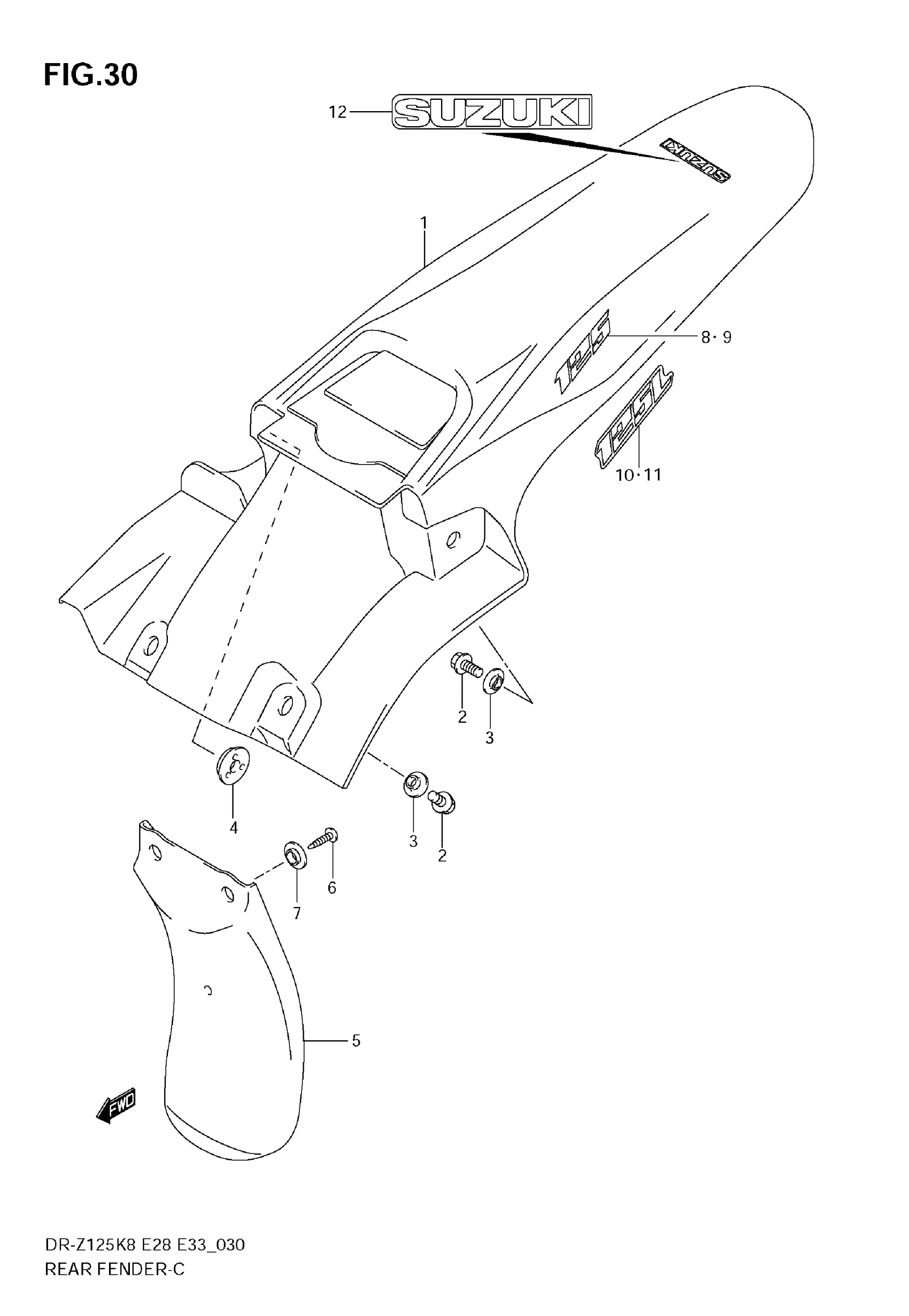

Suzuki DR-Z125 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, RR (YELLOW) | E33

63113-08G50-YU1

$148.08

1

FENDER, REAR (BLACK) | E33

63113-08G50-019

$150.15

1

FENDER, RR (YELLOW) | E28

63113-08G60-YU1

$91.48

1

FENDER, REAR (BLACK) | E28

63113-08G60-019

Unavailable

2

BOLT

09103-06200

$3.17

3

WASHER

09169-06076

$2.88

4

WASHER, MUFFLER

09169-08045

$2.14

5

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

6

SCREW

03541-0516B

$1.77

7

WASHER This part replaces 09169-06045.

09169-06055

$2.02

8

EMBLEM, 125 RH (YELLOW/BLACK) | DR-Z125 FOR YU1

68171-08G60-GY8

Unavailable

8

EMBLEM, RH | DR-Z125 FOR 019

68171-08G60-BJB

Unavailable

9

EMBLEM, 125 LH (YELLOW/BLACK) | DR-Z125 FOR YU1

68172-08G60-GY8

Unavailable

9

EMBLEM, LH | DR-Z125 FOR 019

68172-08G60-BJB

Unavailable

10

EMBLEM, 125L RH (YELLOW/BLACK | DR-Z125L FOR YU1

68171-08G70-GY8

$19.97

10

EMBLEM, RH | DR-Z125L FOR 019

68171-08G70-BJB

Unavailable

11

EMBLEM, 125L LH (YELLOW/BLACK | DR-Z125L FOR YU1

68172-08G70-GY8

Unavailable

11

EMBLEM, LH | DR-Z125L FOR 019

68172-08G70-BJB

Unavailable

12

EMBLEM,SUZUKI | FOR YU1 This part replaces 68131-21H00-019.

68131-21H01-019

$10.70

12

EMBLEM, SUZUKI | FOR 019

68131-21H00-30H

Unavailable
