2007 Suzuki DR-Z125 Cylinder Diagram

← All diagrams

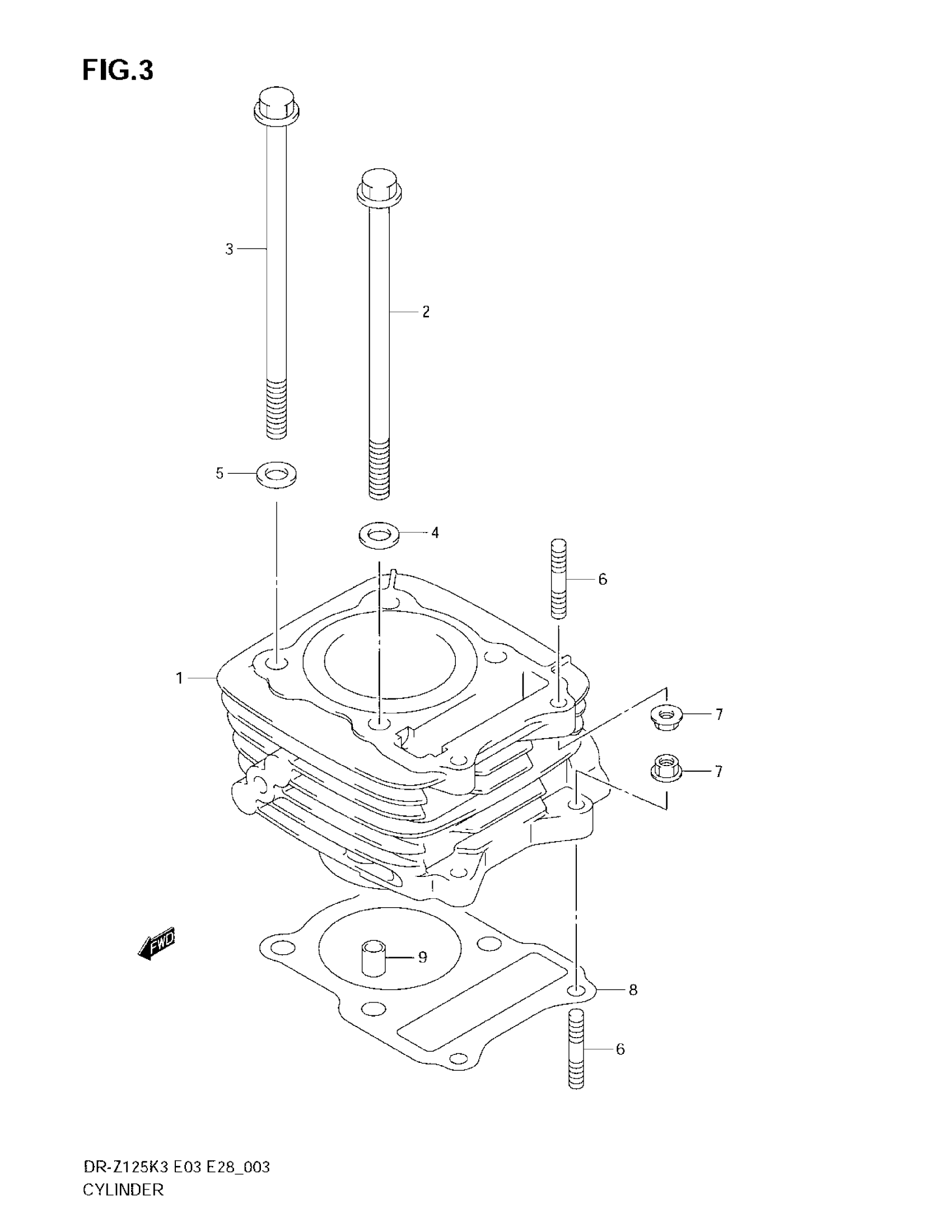

Find the part on the Cylinder diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z125 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | MODEL K3/K6/K7

11210-44A11-0F0

1
Out of stock

1

CYLINDER | MODEL K4/K5

11210-05203-0F0

1
Out of stock

2

STUD BOLT (L:155)

09103-08378

2
Out of stock

3

STUD BOLT (L:165)

09103-08379

2
Out of stock

4

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

2
Out of stock

5

GASKET (8.5X17X2.3)

09168-08021

2
Out of stock

6

STUD BOLT This part replaces 01421-06253.

01421-0625A

4
Out of stock

7

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

8

.GASKET, CYLINDER

11241-05311

1
Out of stock

9

KNOCK PIN

04211-11149

2
Out of stock
