Description

Price

1

SHAFT, KICK STARTER | NT:31

26211-05203

$103.72

2

GUIDE, KICK STARTER

26221-05200

$9.50

3

SPRING

09440-32006

$2.58

4

SPRING

09448-45003

$7.10

5

WASHER

08211-17341

$2.53

6

OIL SEAL (16X24X5)

09285-16003

$3.13

7

STARTER, KICK

26231-38202

$38.87

8

GUIDE, KICK STARTER

26232-38200

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$6.10

10

BOLT | MODEL K3 This part replaces 01500-08203.

01500-0820A

$2.87

10A

BOLT | MODEL K4/K5/K6/K7 This part replaces 09100-08240.

09100-08299

$4.53

11

GEAR, KICK STARTER DRIVE | NT:31

26240-05202

Unavailable

12

WASHER (16X30X1)

09160-16003

$3.67

13

WASHER (20X26X1)

09181-20139

$1.82

14

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.88

15

LEVER ASSY, KICK STARTER | MODEL K3/K4/K5/K6 This part replaces 26300-42A10.

26300-42A20

$86.63

15

LEVER ASSY, KICK STARTER | MODEL K7

26300-42A20

$86.63

16

BOLT This part replaces 01500-08253.

01500-0825A

$2.21

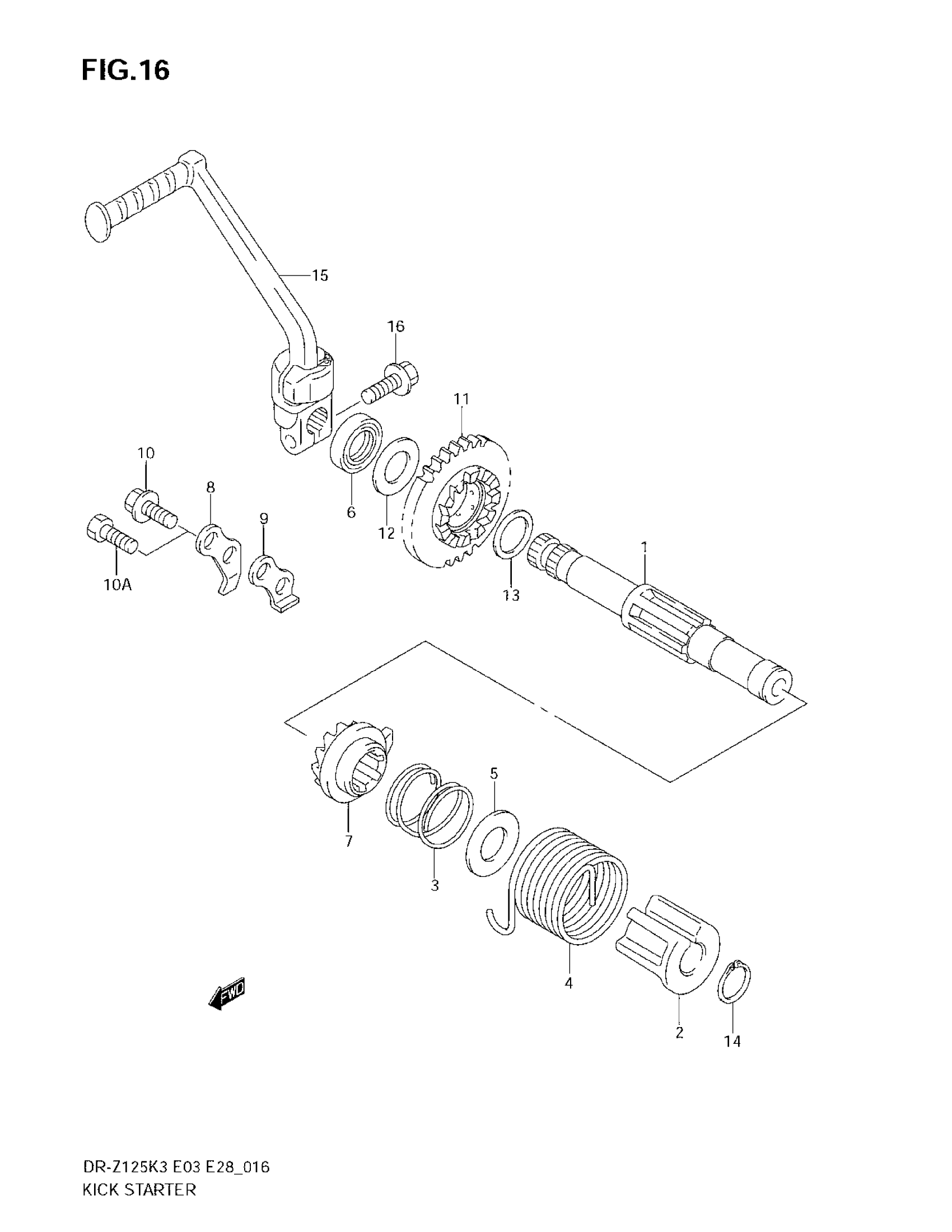

Suzuki DR-Z125 (2007) KICK STARTER Diagram

SHAFT, KICK STARTER | NT:31

GUIDE, KICK STARTER

SPRING

SPRING

WASHER

OIL SEAL (16X24X5)

STARTER, KICK

GUIDE, KICK STARTER

STOPPER, KICK STARTER

BOLT | MODEL K3 This part replaces 01500-08203.

BOLT | MODEL K4/K5/K6/K7 This part replaces 09100-08240.

GEAR, KICK STARTER DRIVE | NT:31

WASHER (16X30X1)

WASHER (20X26X1)

CIRCLIP This part replaces 08331-31176.

LEVER ASSY, KICK STARTER | MODEL K3/K4/K5/K6 This part replaces 26300-42A10.

LEVER ASSY, KICK STARTER | MODEL K7

BOLT This part replaces 01500-08253.
