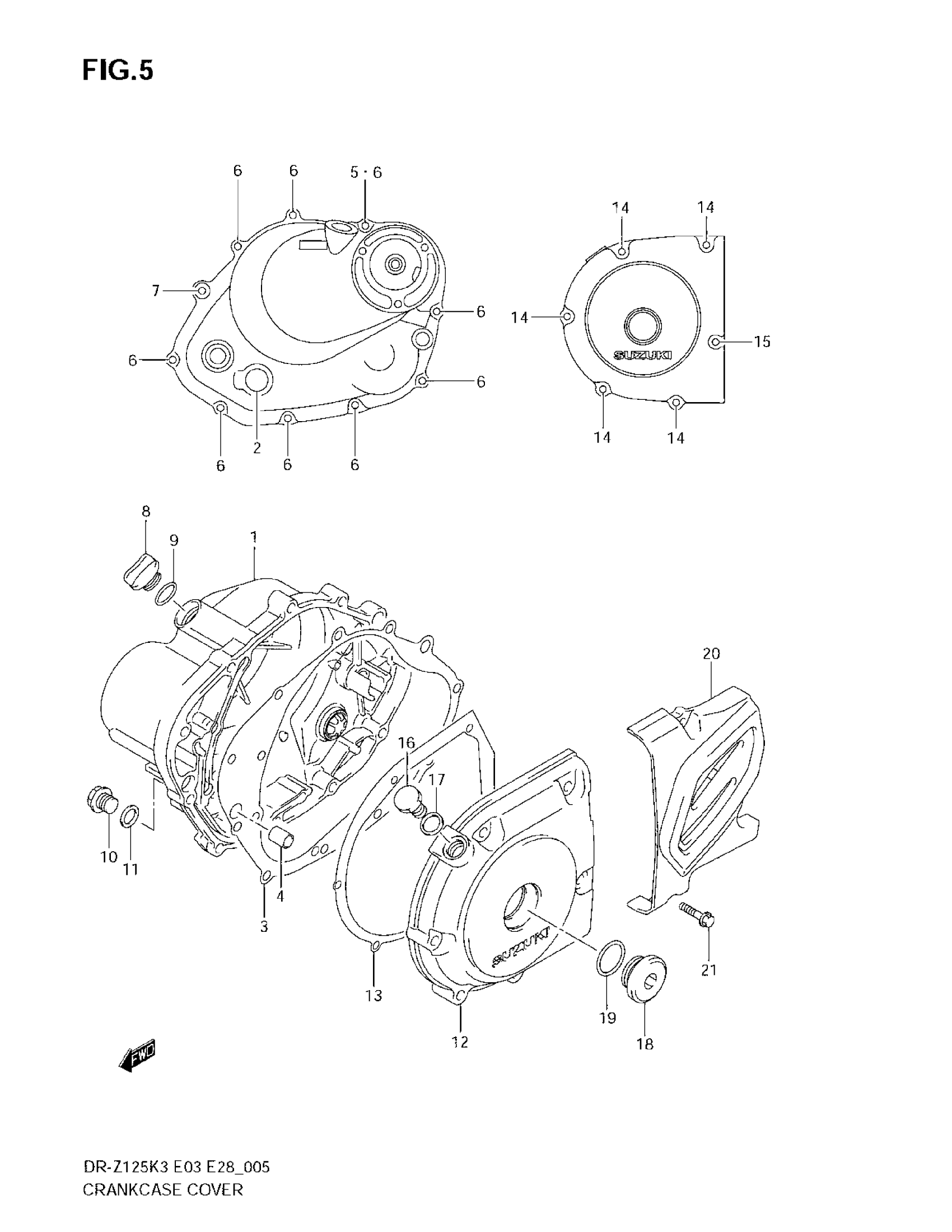

Find the part on the Crankcase Cover diagram for your 2007 Suzuki DR-Z125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z125 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-42A30

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

.GASKET, CLUTCH COVER

11482-05211

1
Out of stock

4

KNOCK PIN

04211-13189

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

6

BOLT, FINAL GEAR CASE | MODEL K3/K4/K5/K6 This part replaces 01547-06303.

01547-0630B

9
Out of stock

6

BOLT | MODEL K7

01547-0630A

9
Out of stock

7

BOLT | MODEL K3/K4/K5/K6 This part replaces 01547-06453.

01547-0645B

1
Out of stock

7

BOLT | MODEL K7

01547-0645A

1
Out of stock

8

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

9

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

10

PLUG, OIL CHECK

09247-14026

1

$3.63

In stock

11

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

12

COVER, MAGNETO | MODEL K3/K4/K5 This part replaces 11351-08G00.

11351-08G30

1
Out of stock

12

COVER, MAGNETO | MODEL K6/K7

11351-08G30

1
Out of stock

13

.GASKET, MAGNETO COVER

11483-05210

1
Out of stock

14

BOLT, FINAL GEAR CASE | MODEL K3/K4/K5/K6 This part replaces 01547-06303.

01547-0630B

5
Out of stock

14

BOLT | MODEL K7

01547-0630A

5
Out of stock

15

BOLT | MODEL K3/K4/K5/K6 This part replaces 01547-06403.

01547-0640B

1
Out of stock

15

BOLT | MODEL K7

01547-0640A

1
Out of stock

16

PLUG, TDC

09247-12103

1
Out of stock

17

GASKET (12X16X2)

09168-12002

1
Out of stock

18

PLUG, CRANKSHAFT HOLE

09259-26011

1
Out of stock

19

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

20

COVER, ENG SPROCKET

11360-08G00

1
Out of stock

21

BOLT | MODEL K3/K4/K5/K6 This part replaces 01547-05303.

01547-0530B

2
Out of stock

21

BOLT | MODEL K7

01547-0530A

2
Out of stock
