2005 Suzuki DR-Z110 Wheel/tire Diagram

← All diagrams

Find the part on the Wheel/tire diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

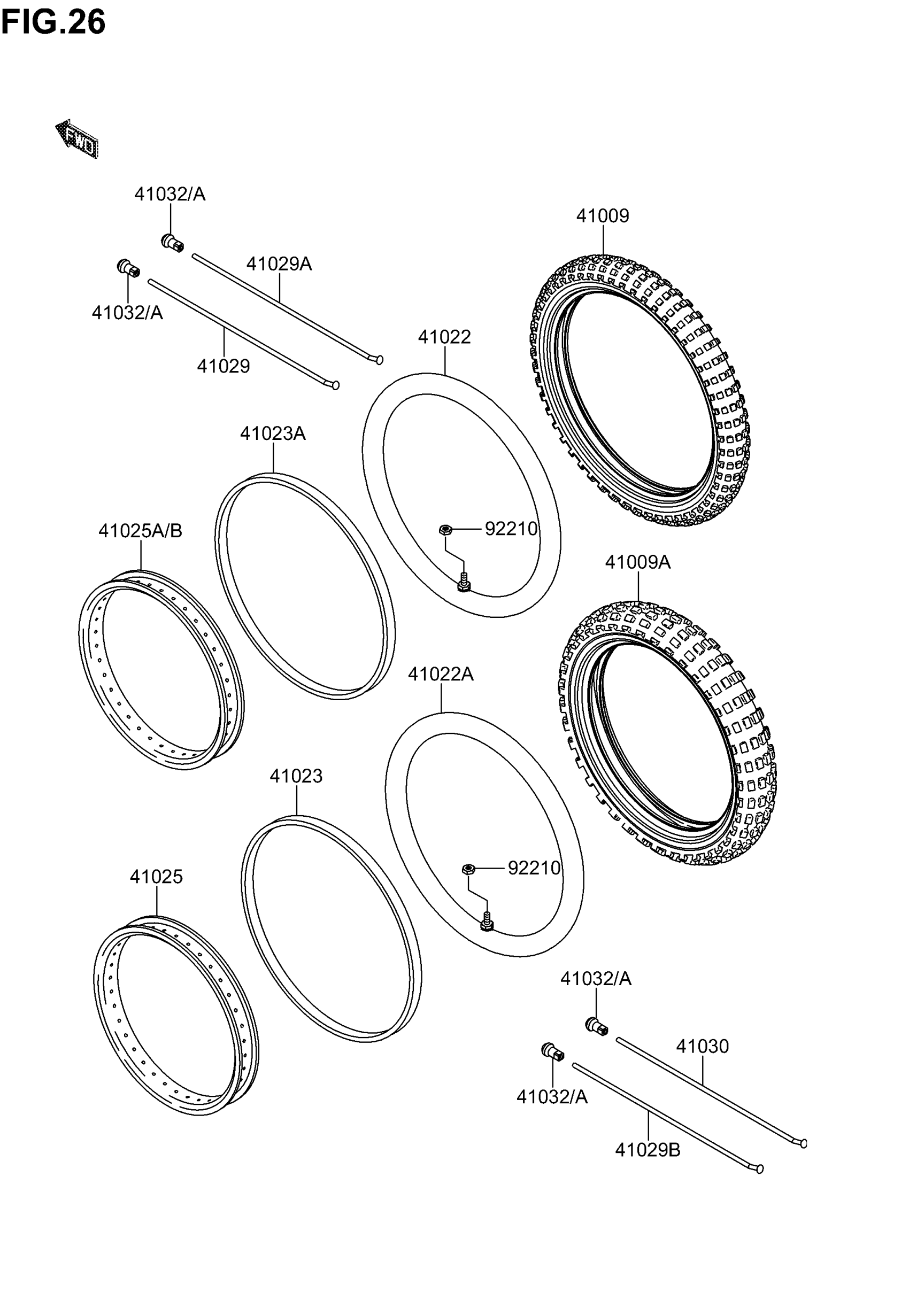

2005 Suzuki DR-Z110 Wheel/tire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,2.50-14 4PR,C-803(CHEN

K4100-91404

1
Out of stock

41009A

TIRE,RR,3.00-12 4PR,C-803(CHEN

K4100-91405

1
Out of stock

41022

TUBE-TIRE,2.50-14(CHENG SHIN)

K4102-21239

1
Out of stock

41022A

TUBE-TIRE,3.00-12(CHENG SHIN)

K4102-21240

1
Out of stock

41023

BAND-RIM,80/100-12(D)

K4102-31066

1
Out of stock

41023A

BAND-RIM,80/100-14(D)

K4102-31068

1
Out of stock

41025

NO DESCRIPTION AVAILABLE This part replaces K4102-50009.

K4102-51434

1
Out of stock

41025A

RIM,FR,1.40X14 | K5

K4102-50013

1
Out of stock

41025B

RIM,FR,1.40X14 | K3, K4 This part replaces K4102-51070.

K4102-50013

1
Out of stock

41029

SPOKE-INNER,FR,144MMX118D

K4102-91067

16
Out of stock

41029A

SPOKE-INNER,FR,133.5MMX97D

K4102-91068

16
Out of stock

41029B

SPOKE-INNER,RR,98MMX105.5D

K4102-91329

18
Out of stock

41030

SPOKE-OUTER,RR,98MMX77.5D

K4103-01182

18
Out of stock

41032

NIPPLE,SPOKE | K5 This part replaces K4103-20004.

K4103-20009

68
Out of stock

41032A

NIPPLE-SPOKE | K3, K4

K4103-21055

68
Out of stock

92210

NUT

K9221-01371

2
Out of stock
