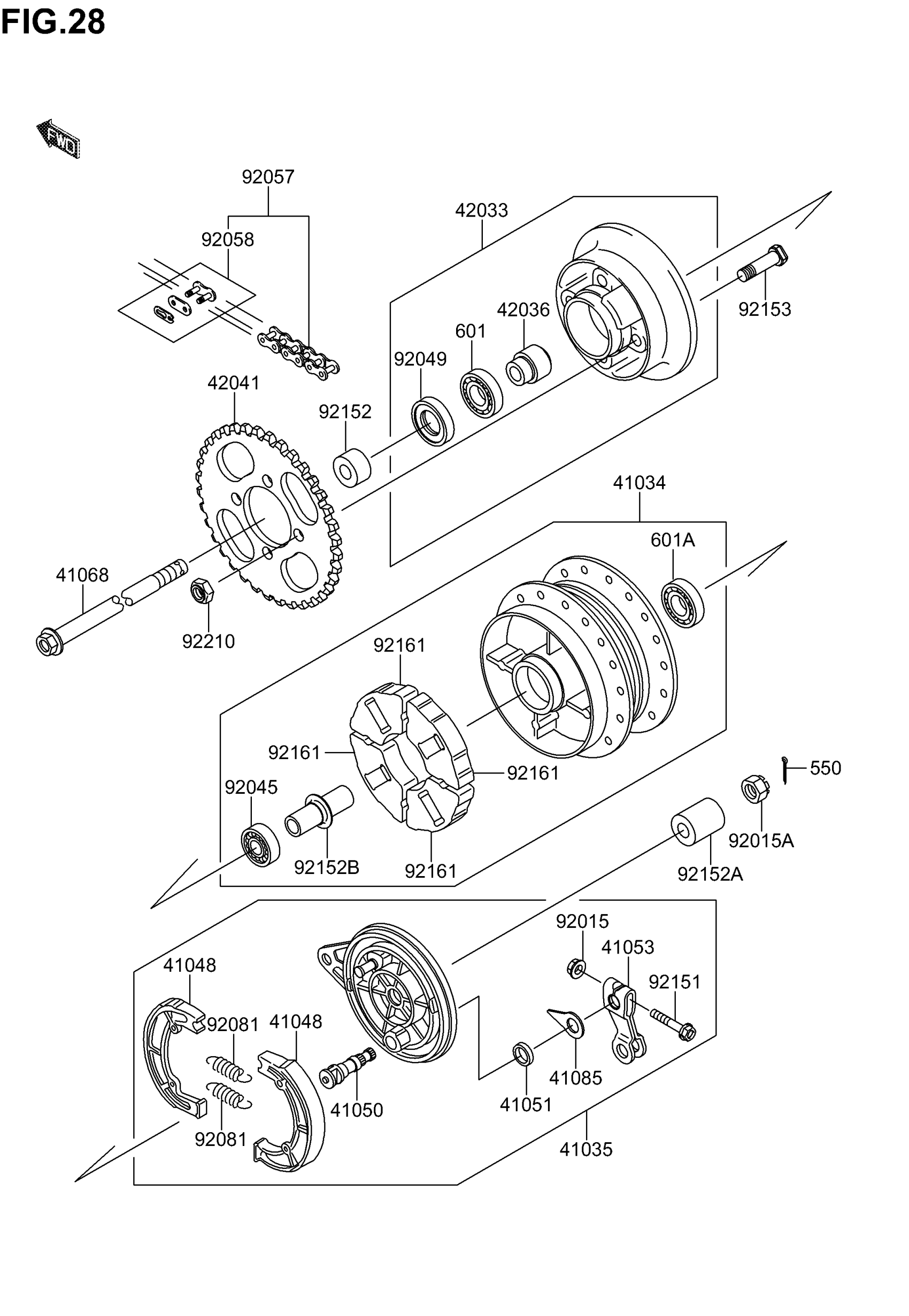

Suzuki DR-Z110 (2005) REAR HUB(DR-Z110 K3/K4) Diagram

DRUM-ASSY,REAR BRAKE This part replaces K4103-41344.

K4103-40010

Unavailable

PANEL-ASSY-BRAKE,RR

K4103-51542

Unavailable

SHOE-BRAKE

K4104-81141

$25.20

CAM-BRAKE

K4105-01082

$13.16

SEAL,BRAKE CAM

KK410-51001

Unavailable

LEVER-BRAKE CAM

K4105-31089

$11.20

AXLE,RR

K4106-80016

$40.97

INDICATOR

K4108-51079

Unavailable

COUPLING-ASSY,RR HUB

K4203-31223

$96.05

SLEEVE,RR HUB COUPLING,L=29

K4203-61292

$11.15

SPROCKET-HUB,33 This part replaces K4204-11553.

K4204-10136

$59.03

NUT,FLANGED,6MM This part replaces K9201-51193.

K9201-51367

$4.77

NUT,CASTLE,12MM

K9201-51870

$5.92

BEARING-BALL,6201ZC3/5C

K9204-51308

Unavailable

SEAL-OIL,SC26X42X8

K9204-91490

$2.07

CHAIN,DRIVE,DID420DXX86L This part replaces K9205-71527.

K9205-70090

Unavailable

JOINT-CHAIN,DRIVE

K9205-81073

Unavailable

SPRING,BRAKE SHOE

K9208-11766

$7.17

BOLT,FLANGED,6X34

K9215-11209

$3.48

COLLAR,RR AXLE,LH,L=14.8

K9215-21405

$7.63

COLLAR,RR AXLE,RH,L=32

K9215-21406

$9.85

COLLAR,REAR BRAKE DRUM,L=58

K9215-21409

Unavailable

BOLT,10X36

K9215-31120

$8.88

DAMPER,RR HUB SHOCK This part replaces K9216-11297.

K9216-10084

$10.97

NUT,LOCK,10MM

K9221-01351

$5.63

PIN-COTTER,2.5X20

KK550-D2520

Unavailable

BEARING-BALL,#6004UC3

K601B-6004U

Unavailable

BEARING-BALL,#6301UC3

K601B-6301U

Unavailable
