2005 Suzuki DR-Z110 Chassis Electrical Equipment Diagram

← All diagrams

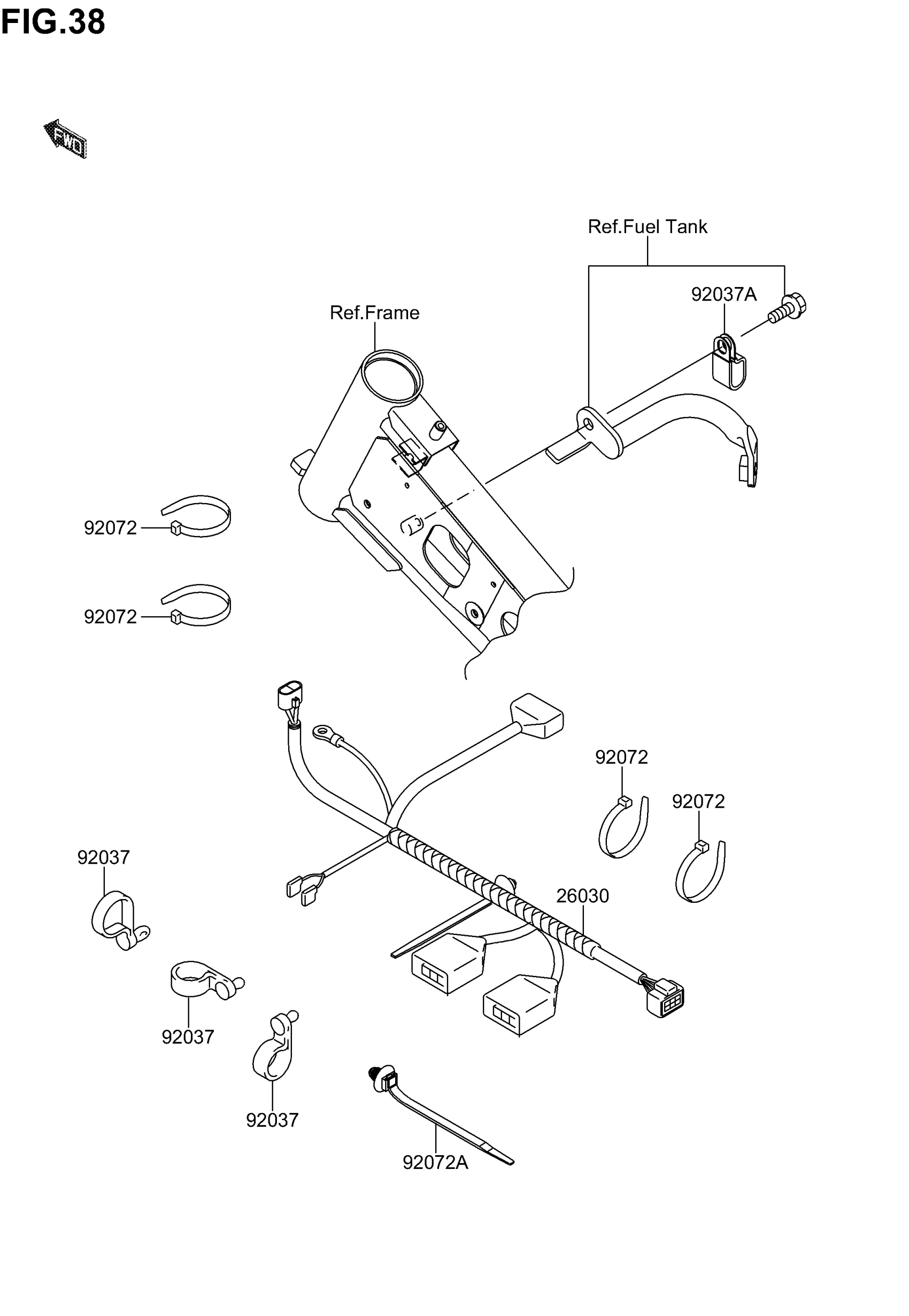

Find the part on the Chassis Electrical Equipment diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z110 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26030

HARNESS,MAIN

K2603-01931

1
Out of stock

92037

CLAMP,SPEED,L=58

K9203-71163

3
Out of stock

92037A

CLAMP

K9203-71608

1
Out of stock

92072

BAND,L=140

K9207-21293

4
Out of stock

92072A

BAND

K9207-21414

1
Out of stock
