2005 Suzuki DR-Z110 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

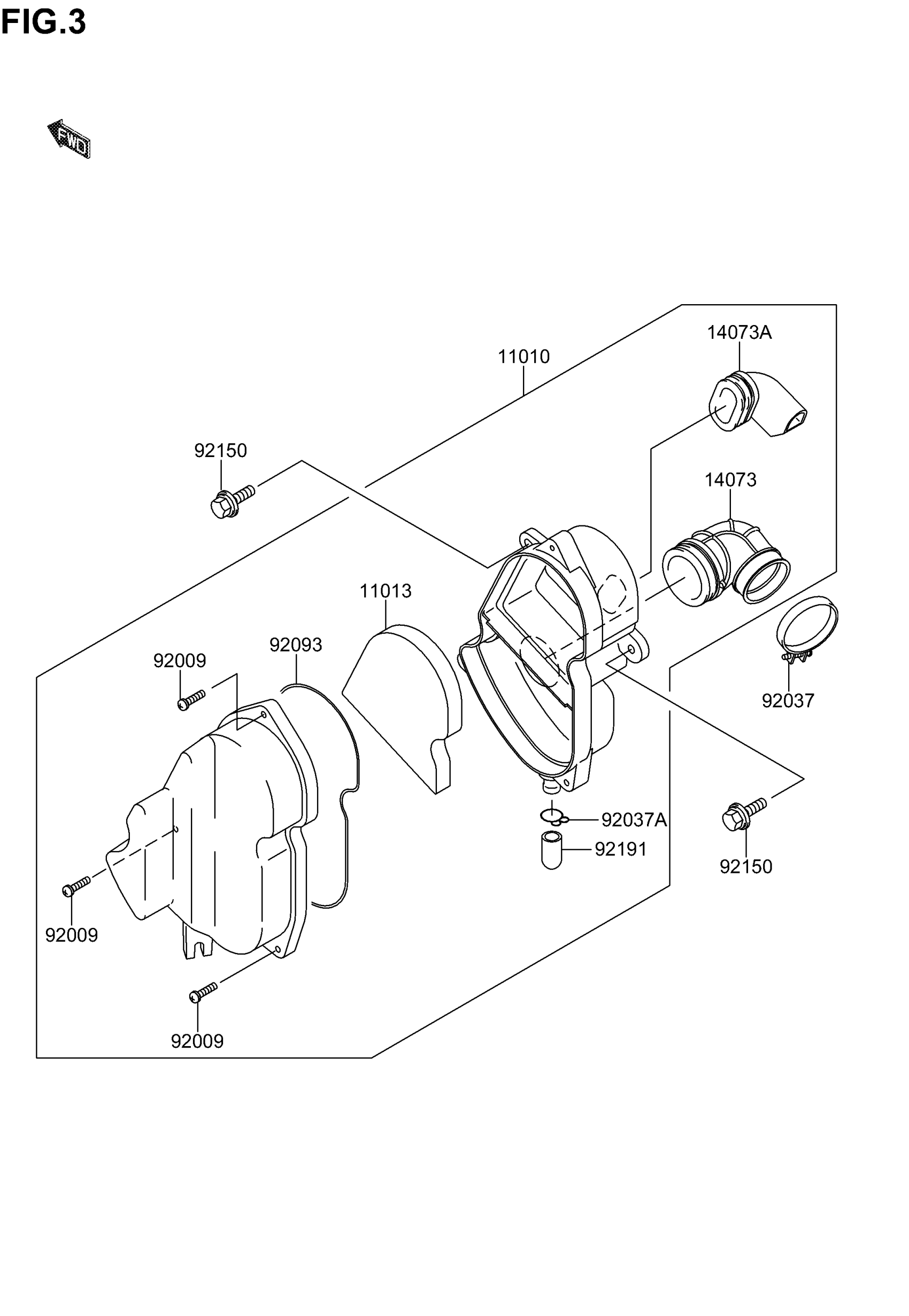

2005 Suzuki DR-Z110 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

K1101-01773

1
Out of stock

11013

ELEMENT-AIR FILTER

K1101-31294

1
Out of stock

14073

DUCT,CARBURETOR

K1407-31819

1
Out of stock

14073A

DUCT,IN

K1407-31820

1
Out of stock

92009

SCREW,M5X20

K9200-91990

3
Out of stock

92037

CLAMP

K9203-71305

1
Out of stock

92037A

CLAMP,14.5MM

K9203-71900

1
Out of stock

92093

SEAL,AIR CLEANER

K9209-31560

1
Out of stock

92150

BOLT,6X20

K9215-01892

2
Out of stock

92191

TUBE

K9219-11704

1
Out of stock
