2005 Suzuki DR-Z110 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

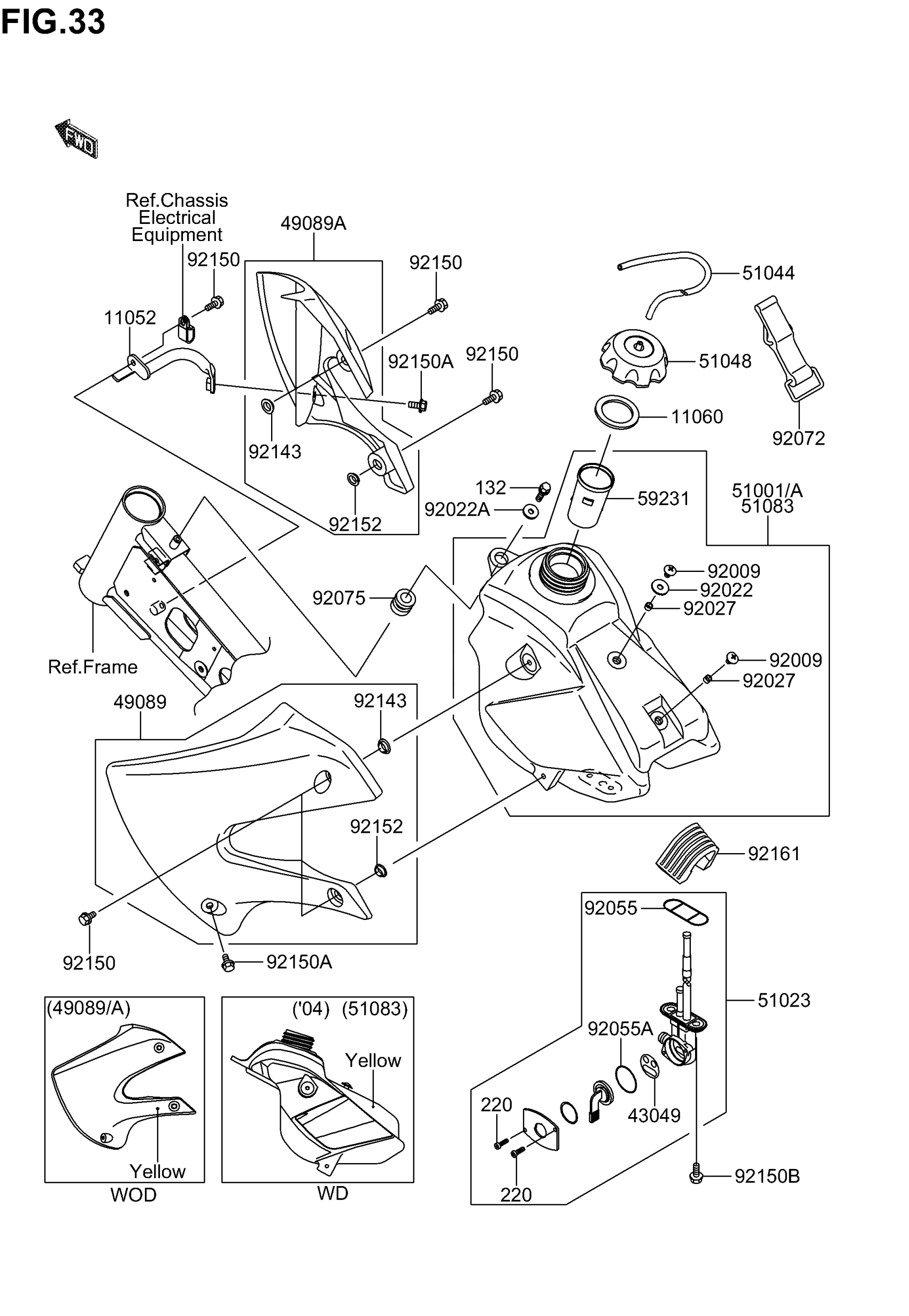

2005 Suzuki DR-Z110 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,SHROUD,RH

K1105-21639

1
Out of stock

11060

GASKET,FUEL TANK CAP

K1106-01340

1
Out of stock

43049

PACKING,TAP VALVE

K4304-91091

1
Out of stock

49089

SHROUD-ENGINE,LH,C.YELLOW

K4908-91144-267

1
Out of stock

49089A

SHROUD-ENGINE,RH,C.YELLOW

K4908-91145-267

1
Out of stock

51001

TANK-COMP-FUEL,C.YELLOW | K5

K5100-11676-267

1
Out of stock

51001A

TANK-COMP-FUEL,F.BLACK | K3

KK510-01167-66Z

1
Out of stock

51023

TAP-ASSY,FUEL

K5102-31342

1
Out of stock

51044

TUBE-ASSY

K5104-41185

1
Out of stock

51048

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

1
Out of stock

51083

TANK-COMP-FUEL,C.YELLOW | K4

K5108-35100-267

1
Out of stock

59231

FILLER

K5923-11096

1
Out of stock

92009

SCREW,6X10

K9200-91530

2
Out of stock

92022

WASHER,6.5X20X1 This part replaces KK920-22125.

K9220-00283

1
Out of stock

92022A

WASHER,6.5X24X2

K9202-21690

1
Out of stock

92027

COLLAR,6.2X7.8X5

K9202-72096

2
Out of stock

92055

RING-O,FUEL TAP PACKING

K9205-51348

1
Out of stock

92055A

RING-O,TAP LEVER

K9205-51419

1
Out of stock

92072

BAND,FUEL TANK

K9207-21229

1
Out of stock

92075

DAMPER

K9207-51787

1
Out of stock

92143

COLLAR

K9214-31196

2
Out of stock

92150

BOLT,6X12

K9215-01435

5
Out of stock

92150A

BOLT,FLANGED,6X16

K9215-01506

2
Out of stock

92150B

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

2
Out of stock

92152

COLLAR

K9215-21235

2
Out of stock

92161

DAMPER,FUEL TANK,RR

K9216-11077

1
Out of stock

132

BOLT-FLANGED-SM This part replaces KK132-G0614.

K132B-A0614

1
Out of stock

220

SCREW-PAN-CROS

KK220-B0308

2
Out of stock
