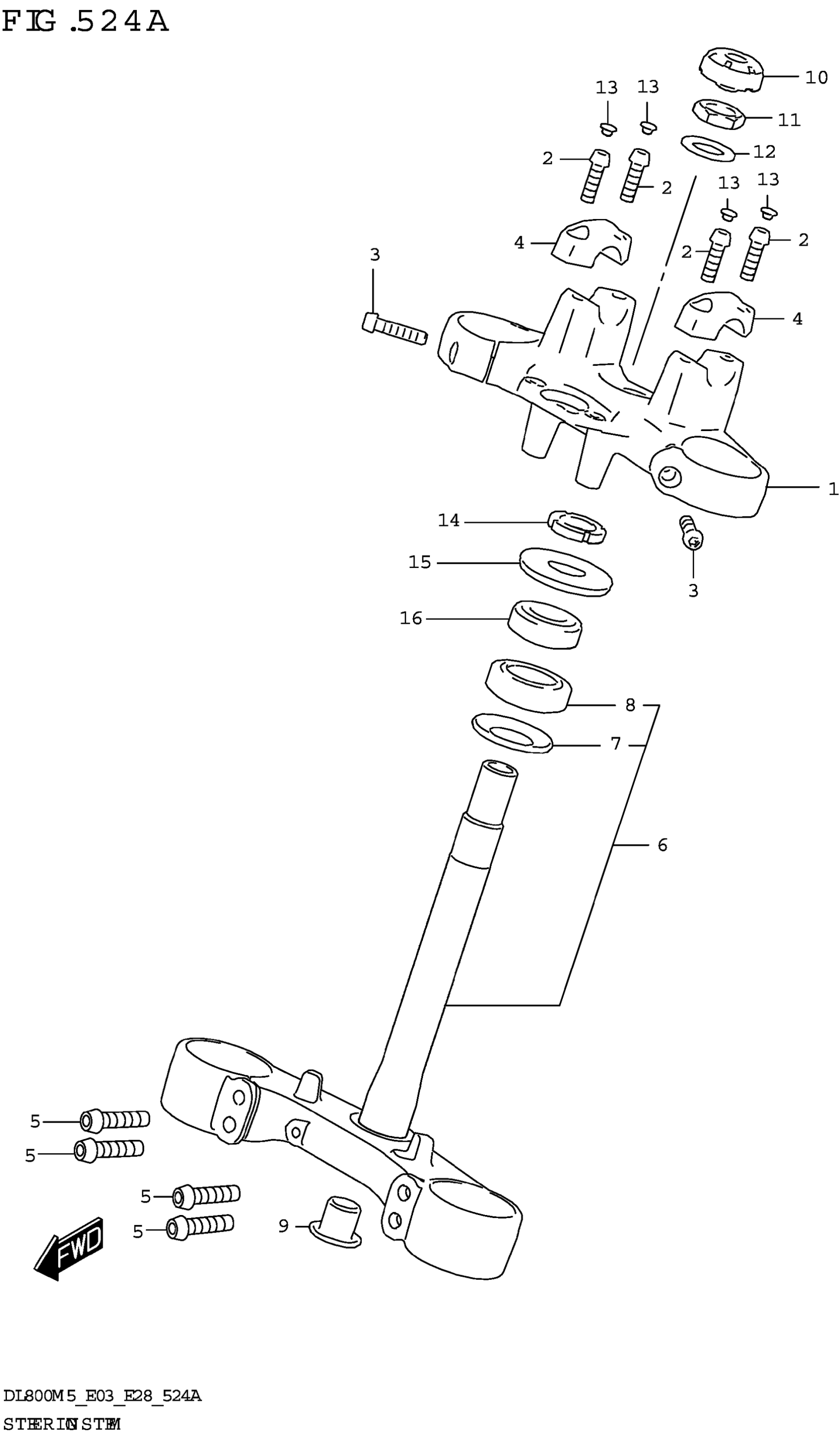

Suzuki DL800RQM5 (2025) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UPPER (BLACK)

51311-25L20-291

$212.35

2

BOLT,HANDLE HOLDER

51321-25L30

$3.40

3

BOLT,BRACKET

51328-25L30

$3.40

4

HOLDER,HANDLE UPPER (BLACK)

51331-25L30-291

$76.80

5

BOLT,BRACKET

51328-25L30

$3.40

6

BRACKET,UNDER

51410-25L20

$373.63

7

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

8

.BEARING (30X55X17)

09265-30020

$44.41

9

CAP

51482-44H00

$17.83

10

CAP,STEERING STEM

51344-13K00

$11.78

11

NUT

51353-13K00

$10.67

12

WASHER

51356-13K00

$3.08

13

CAP (OD:10.5)

09250-06015

$2.76

14

NUT,STEERING

51631-08D30

Unavailable

15

SEAL,STEERING UPR DUST

51643-01B10

$11.07

16

BEARING (25X47X15)

09265-25038

$45.57
