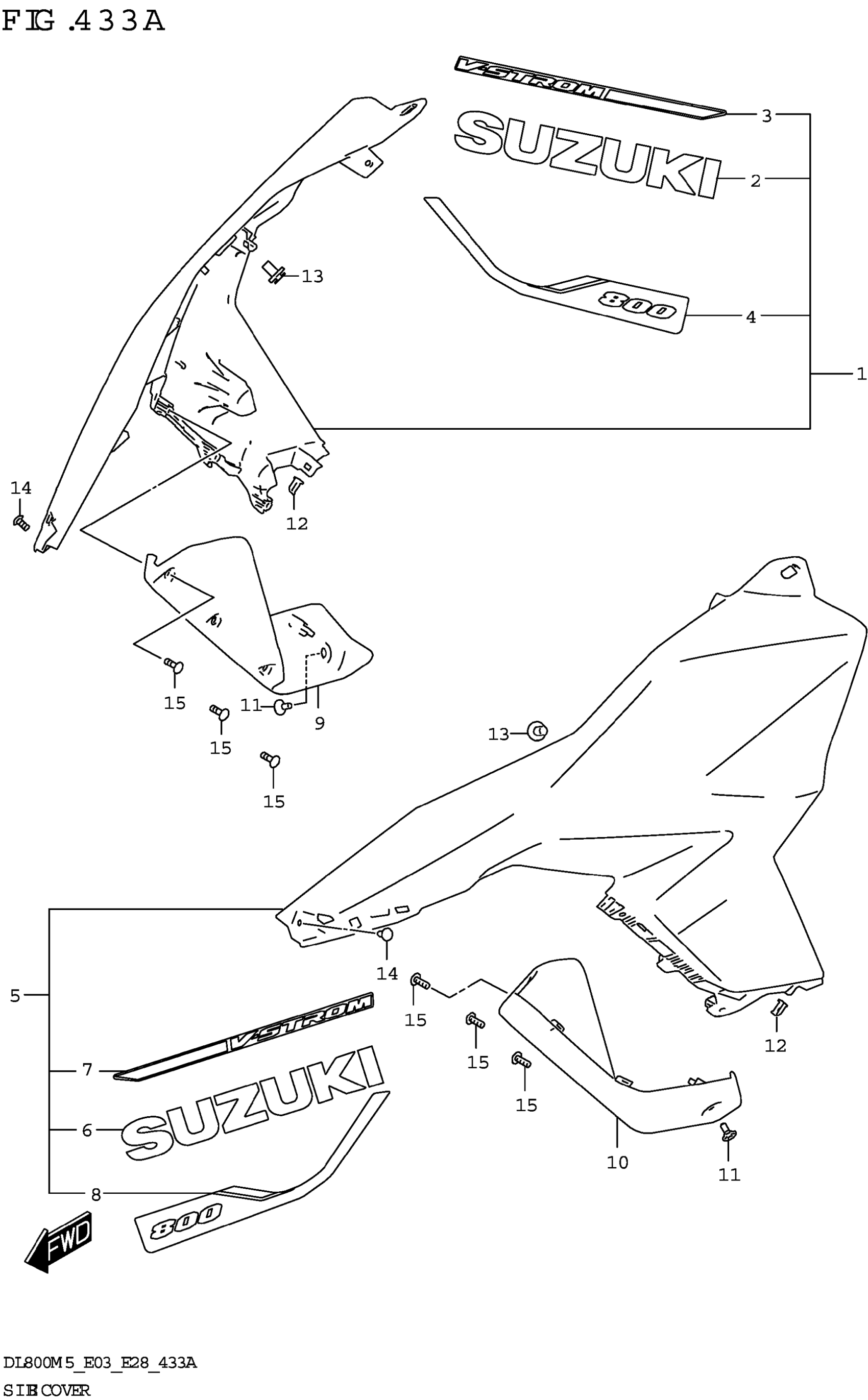

Suzuki DL800RQM5 (2025) SIDE COVER Diagram

#

Description
Price

1-1

COVER,SIDE,R (GRAY) | BODY COLOR:QEB

94420-25L10-QEB

$126.40

1-2

COVER,SIDE,R (BLACK) | BODY COLOR:YKV

94420-25L10-YKV

Unavailable

1-3

COVER,SIDE,R (RED) | BODY COLOR:YYG

94420-25L10-YYG

Unavailable

2-1

.EMBLEM (BLACK) | BODY COLOR:QEB

68111-47C10-019

$22.97

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:YKV,YYG

68111-47C10-QKA

$10.48

3-1

.EMBLEM,SIDE COVER,R (BLACK,R | D,GRAY) BODY COLOR:QEB

68271-25L10-C1D

$16.44

3-2

.EMBLEM,SIDE COVER,R (SILVER, | ELLOW,BLACK) BODY COLOR:YKV

68271-25L10-C1E

Unavailable

3-3

.EMBLEM,SIDE COVER,R (SILVER, | LACK,RED) BODY COLOR:YYG

68271-25L10-C1F

Unavailable

4-1

.TAPE,SIDE COVER,R (BLACK,RED | GRAY) BODY COLOR:QEB

68275-25L10-C1D

$20.27

4-2

.TAPE,SIDE COVER,R (SILVER,YE | LOW,BLACK) BODY COLOR:YKV

68275-25L10-C1E

Unavailable

4-3

.TAPE,SIDE COVER,R (SILVER,BL | CK,RED) BODY COLOR:YYG

68275-25L10-C1F

Unavailable

5-1

COVER,SIDE,L (GRAY) | BODY COLOR:QEB

94430-25L10-QEB

$126.40

5-2

COVER,SIDE,L (BLACK) | BODY COLOR:YKV

94430-25L10-YKV

Unavailable

5-3

COVER,SIDE,L (RED) | BODY COLOR:YYG

94430-25L10-YYG

Unavailable

6-1

.EMBLEM (BLACK) | BODY COLOR:QEB

68111-47C10-019

$22.97

6-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:YKV,YYG

68111-47C10-QKA

$10.48

7-1

.EMBLEM,SIDE COVER,L (BLACK,R | D,GRAY) BODY COLOR:QEB

68281-25L10-C1D

$16.44

7-2

.EMBLEM,SIDE COVER,L (SILVER, | ELLOW,BLACK) BODY COLOR:YKV

68281-25L10-C1E

Unavailable

7-3

.EMBLEM,SIDE COVER,L (SILVER, | LACK,RED) BODY COLOR:YYG

68281-25L10-C1F

Unavailable

8-1

.TAPE,SIDE COVER,L (BLACK,RED | GRAY) BODY COLOR:QEB

68285-25L10-C1D

$20.27

8-2

.TAPE,SIDE COVER,L (SILVER,YE | LOW,BLACK) BODY COLOR:YKV

68285-25L10-C1E

Unavailable

8-3

.TAPE,SIDE COVER,L (SILVER,BL | CK,RED) BODY COLOR:YYG

68285-25L10-C1F

Unavailable

9-1

GARNISH,SIDE COVER,R (BLACK) | BODY COLOR:QEB,YYG

94442-25LA0-019

$57.77

9-2

GARNISH,SIDE COVER,R (YELLOW) | BODY COLOR:YKV

94442-25LA0-YU1

$59.22

10-1

GARNISH,SIDE COVER,L (BLACK) | BODY COLOR:QEB,YYG

94452-25LA0-019

$57.77

10-2

GARNISH,SIDE COVER,L (YELLOW) | BODY COLOR:YKV

94452-25LA0-YU1

$59.22

11

SCREW (5X13)

09139-05091

$2.03

12

CLIP

09409-08012

$2.82

13

CLIP

09409-10314

$1.97

14

SCREW

03541-0512A

$1.49

15

SCREW

03541-0516A

$1.49
