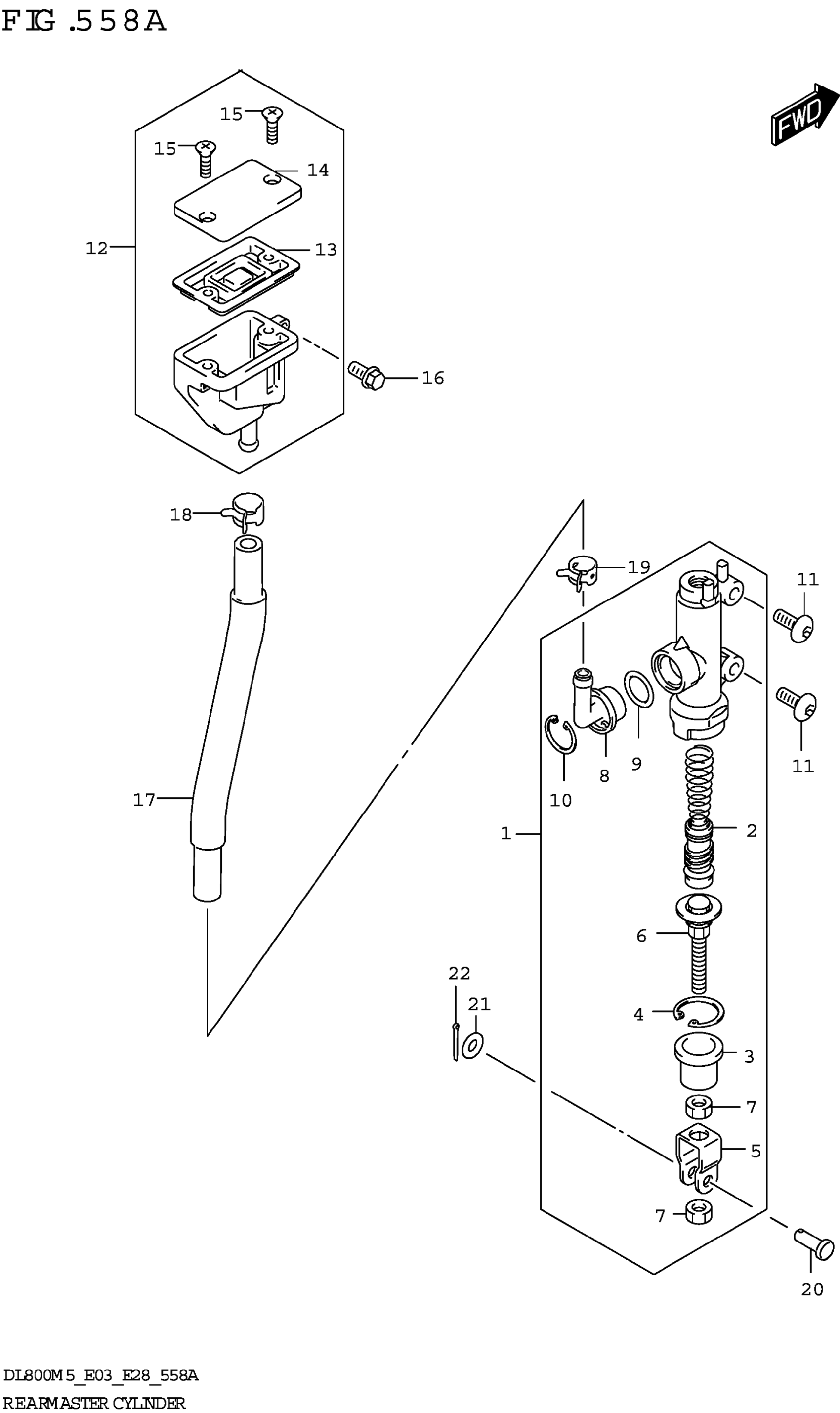

Suzuki DL800RQM5 (2025) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,RR MASTER

69600-47H10

$348.28

2

.PISTON/CUP SET

69600-34810

$63.75

3

.BOOT

69691-00A00

$5.00

4

.CIRCLIP

69665-47H00

$5.65

5

.YOKE

69692-44H00

$19.03

6

.ROD,PUSH

69670-40A00

$28.90

7

.NUT

69693-05A00

$1.86

8

.CONNECTOR

69672-00B20

$6.42

9

.O-RING

69686-34200

$2.80

10

.CIRCLIP

69674-00B20

$3.73

11

SCREW (6X16)

09139-06139

$2.92

12

TANK ASSY,RR RESERVOIR

69740-01D02

$64.52

13

.DIAPHRAGM

59667-04700

$8.95

14

.CAP

59669-05D00

$15.78

15

.SCREW

69689-04A00

$2.15

16

BOLT

01547-0612A

$2.01

17

HOSE,RR RESERVOIR TANK

69730-25L30

$20.45

18

CLIP (ID:13.2)

09401-13417

$2.24

19

CLIP (ID:12)

09401-12404

$2.37

20

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

21

WASHER

08322-0106A

$1.83

22

PIN

04111-2015A

$1.22
