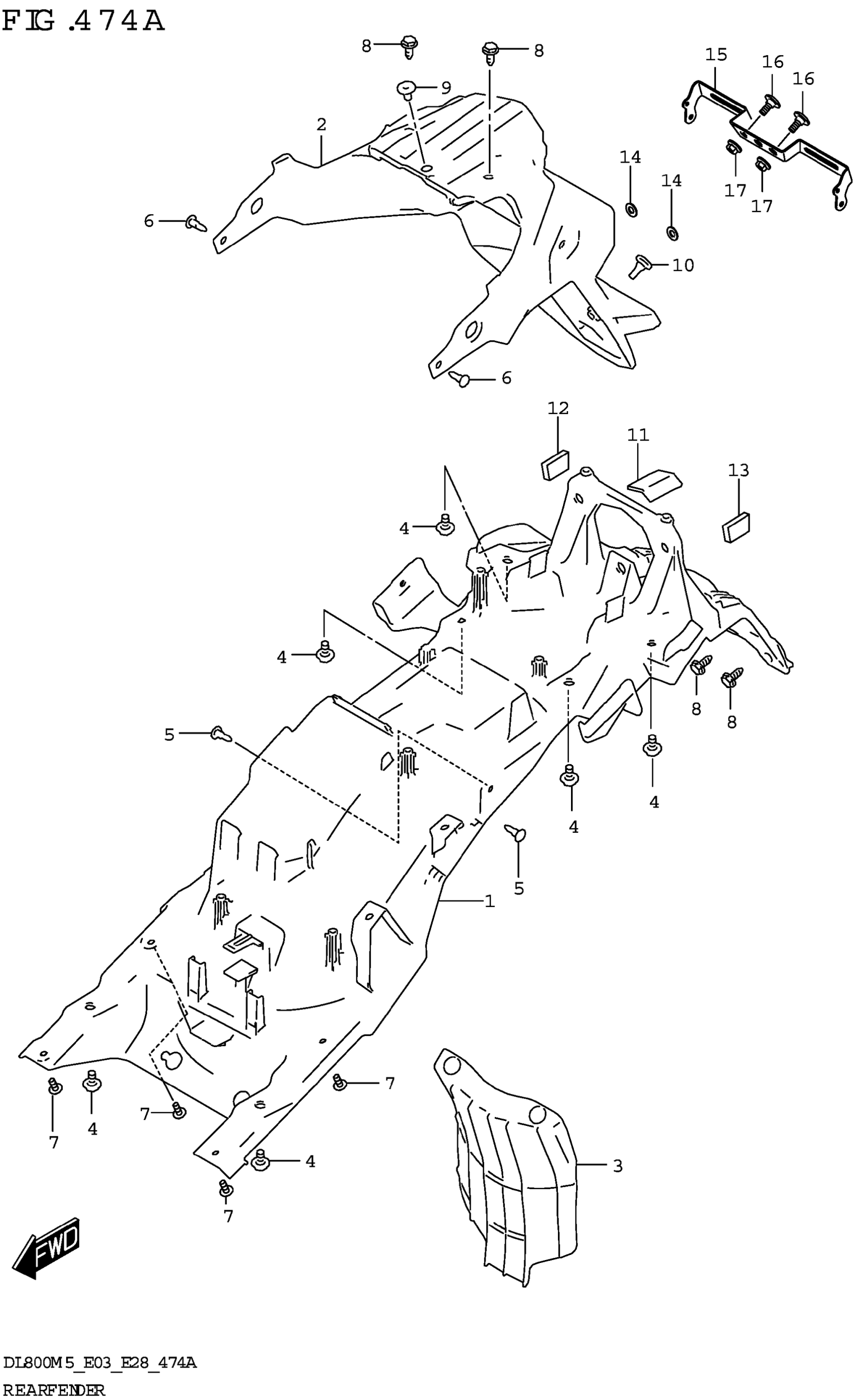

Suzuki DL800RQM5 (2025) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT

63111-25LA0

$146.03

2

FENDER,REAR REAR

63112-25LA0

$70.27

3

EXTENSION,REAR FENDER

63311-25LA0

$24.92

4

BOLT (6X12)

09111-06106

$2.28

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

7

SCREW

03541-0512A

$1.37

8

SCREW,REAR FENDER REAR

63118-25LA0

$2.22

9

BOLT (6X12)

09139-06225

$2.80

10

CUSHION

09321-06026

$2.15

11

CUSHION,TANK COVER LWR NO.1

44555-33H00

$12.93

12

CUSHION,LAMP SIDE,R

63119-25LA0

$3.17

13

CUSHION,LAMP SIDE,L

63219-25LA0

$3.17

14

WASHER

08322-0106B

$2.24

15

BRACKET,REAR SIDE RR

47461-10L00

$13.67

16

SCREW (6X16)

09139-06137

$2.71

17

NUT (M6)

09159-06096

$3.42
