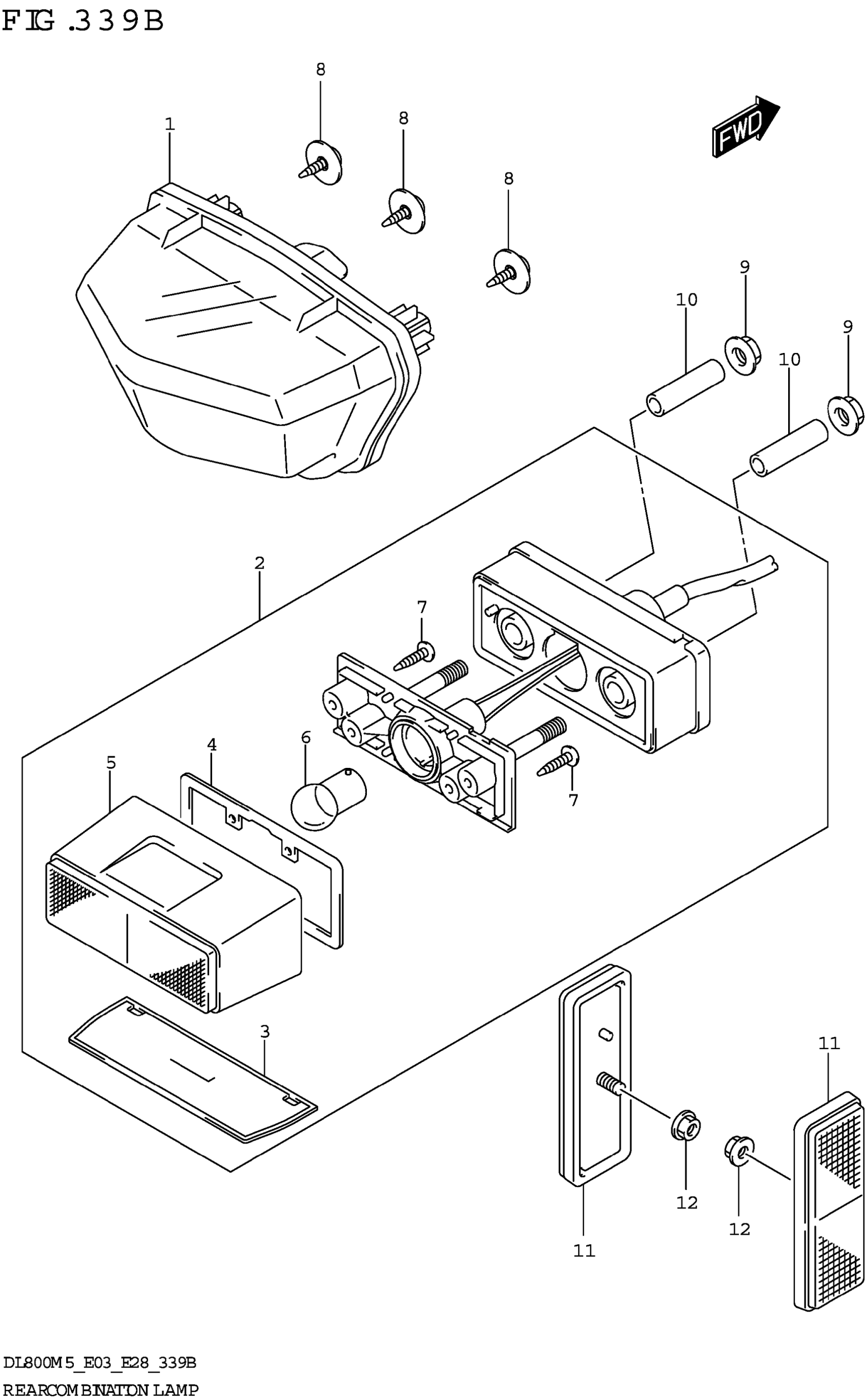

Suzuki DL800RQM5 (2025) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-31JA0

$194.00

2

LAMP ASSY,LICENSE

35910-41G70

$53.35

3

.LENS,LICENSE LAMP

35912-41G01

$13.28

4

.GASKET

35913-41G00

$14.23

5

.COVER,LICENSE LAMP

35917-41G00

$35.32

6

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

7

.SCREW

03211-0416A

$1.49

8

SCREW (5X15)

09136-05062

$2.19

9

NUT (M6)

09159-06096

$3.15

10

SPACER (6.5X9X33.3)

09180-06278

$4.52

11

REFLECTOR ASSY,RR

35970-07F01

$20.88

12

NUT

08319-3105A

$2.27
