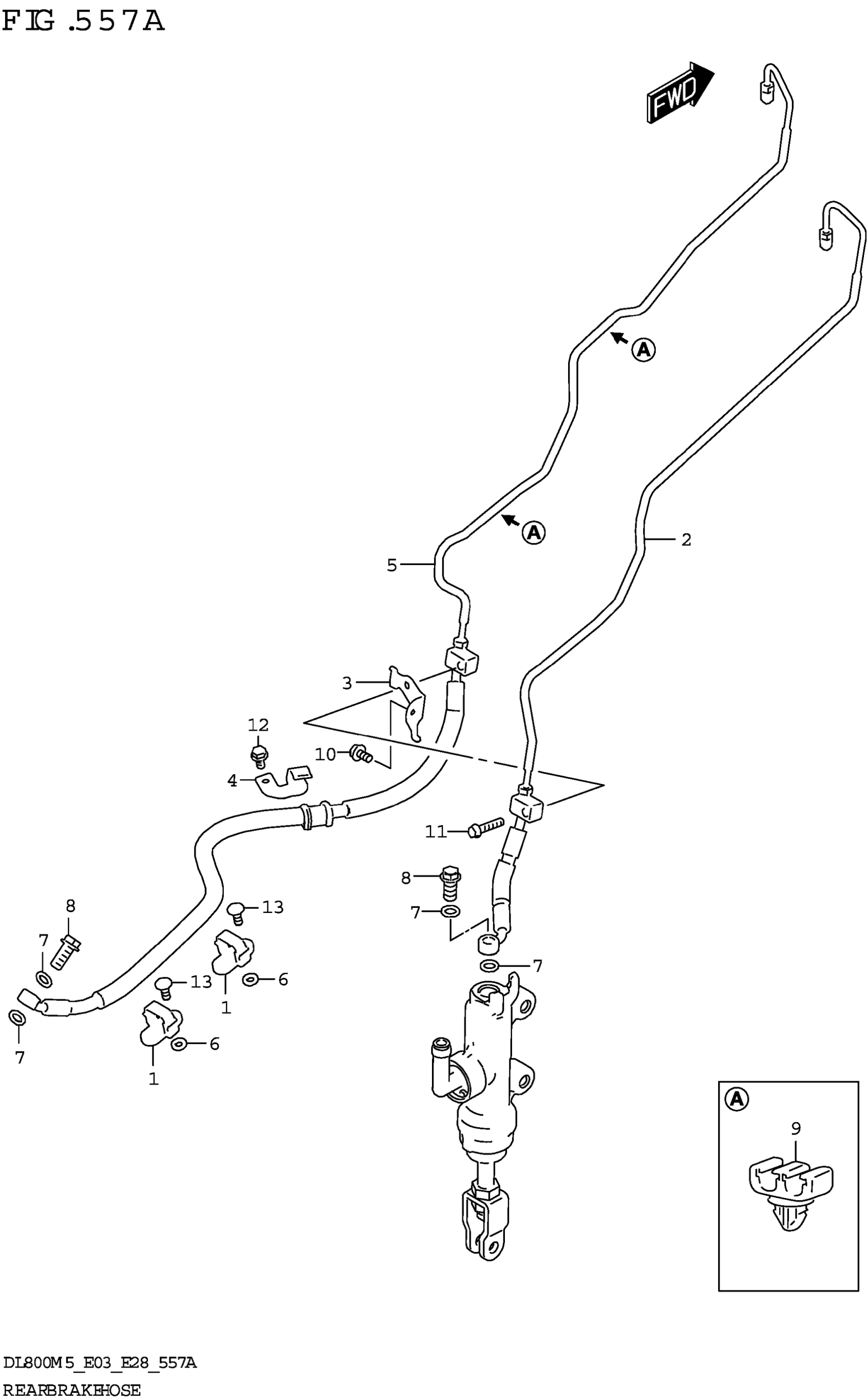

Suzuki DL800RQM5 (2025) REAR BRAKE HOSE Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

2

HOSE ASSY,RR BK MASTER TO UNI

69200-25L00

$93.70

3

CLAMP,RR BRAKE HOSE

69261-25L00

$13.50

4

CLAMP,RR BRAKE HOSE

69268-25L30

$9.60

5

HOSE ASSY,UNIT TO RR BK CLPR

69400-25L30

$117.70

6

WASHER,REAR BRAKE HOSE GUIDE

69486-31J00

Unavailable

7

WASHER (10X15X1.5)

09161-10009

$1.84

8

UNION (10X1.25X22)

09360-10062

$6.43

9

CLAMP

09403-07344

$2.50

10

BOLT

01547-0612A

$2.03

11

BOLT

01547-0630A

$2.32

12

BOLT

01550-0612A

$1.97

13

SCREW

02142-0616B

$1.78
