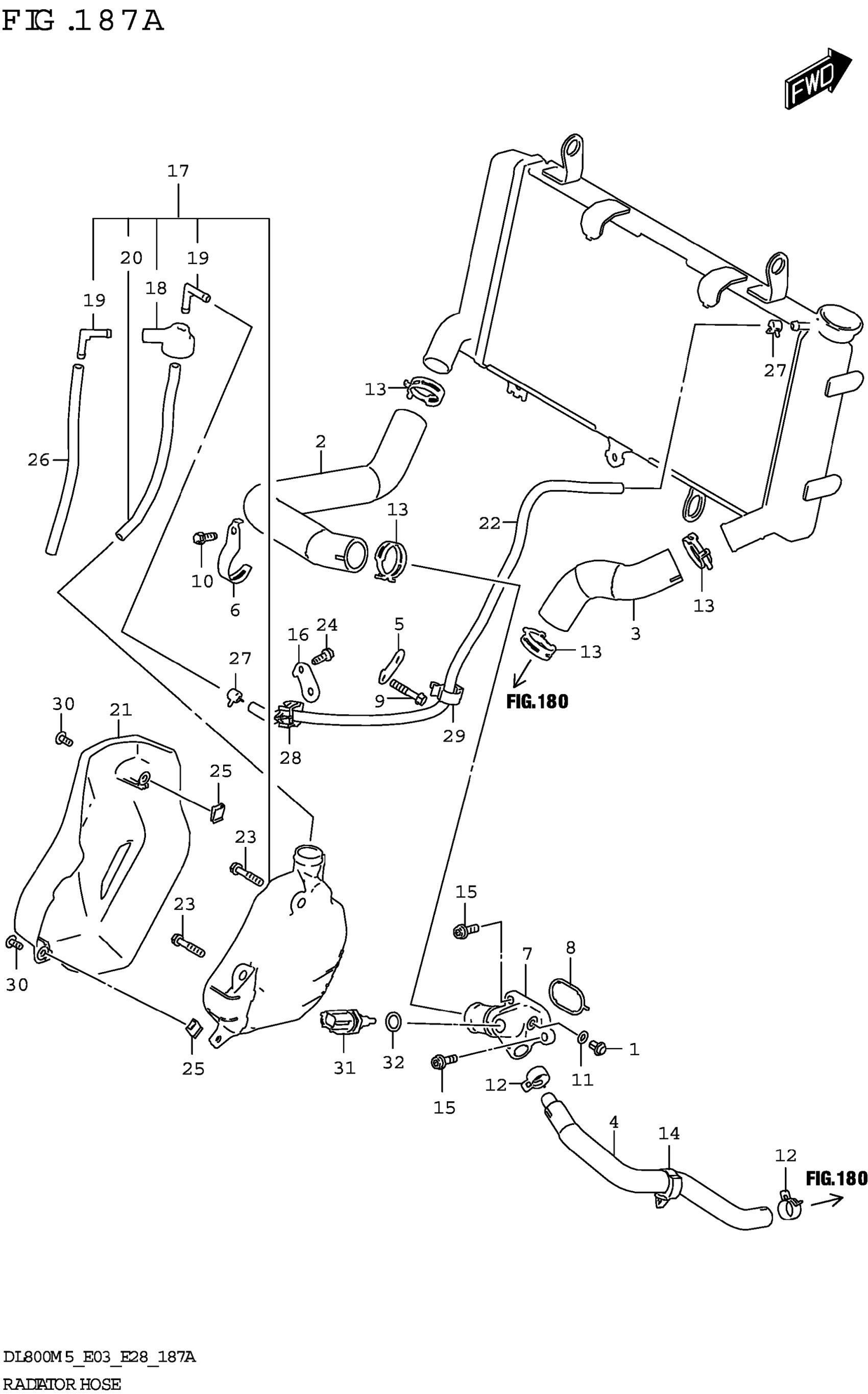

Suzuki DL800RQM5 (2025) RADIATOR HOSE Diagram

#

Description
Price

1

UNION BOLT,AIR VENT

17568-50F00

$6.32

2

HOSE,RDTR INLET

17851-25LA0

$36.17

3

HOSE,RDTR OUTLET

17852-25LA0

$14.27

4

HOSE,WATER BYPASS

17853-25L00

$12.90

5

BRACKET,HOSE CLAMP

17855-25L00

$7.27

6

CLAMP,RDTR INLET HOSE

17856-25L00

$10.12

7

CONNECTOR,WATER OUTLET

17860-25L01

Unavailable

8

.O-RING,WATER CONNECTOR

17861-25L00

$3.98

9

BOLT (6X12)

09103-06525

$1.49

10

BOLT

09135-06034

$2.37

11

GASKET (6.4X11.5X0.84)

09168-06026

$2.80

12

CLIP (ID:16.5)

09401-16407

$2.53

13

CLAMP

09401-29001

$2.80

14

CLAMP

09403-20307

Unavailable

15

BOLT

07120-0620A

$2.80

16

BRACKET,HOSE CLAMP

17855-25L00

$7.27

17

TANK ASSY,RESERVOIR

17910-25L00

$53.33

18

.CAP,WATER RESERVOIR TANK

17931-25L00

$19.92

19

.PIPE,RSVR TANK CAP

17934-25L00

$11.88

20

.HOSE,RSVR TANK CAP

17935-25L00

$16.13

21

COVER,RESERVOIR TANK

17913-25L00

$19.97

22

HOSE,RSVR TANK INLET

17981-25L00

$24.43

23

BOLT (6X12)

09103-06525

$1.49

24

BOLT

09135-06034

$2.37

25

NUT (M5)

09148-05038

$1.97

26

.HOSE,RSVR TANK CAP

17935-25L00

$16.13

27

CLIP (ID:8.6)

09401-08411

$1.77

28

CLAMP

09403-11330

$1.60

29

CLAMP

09403-17403

$2.52

30

SCREW

03541-0512C

Unavailable

31

SENSOR,TEMP

13650-49X00

$82.56

32

GASKET (12X17X1)

09168-12017

$1.97
