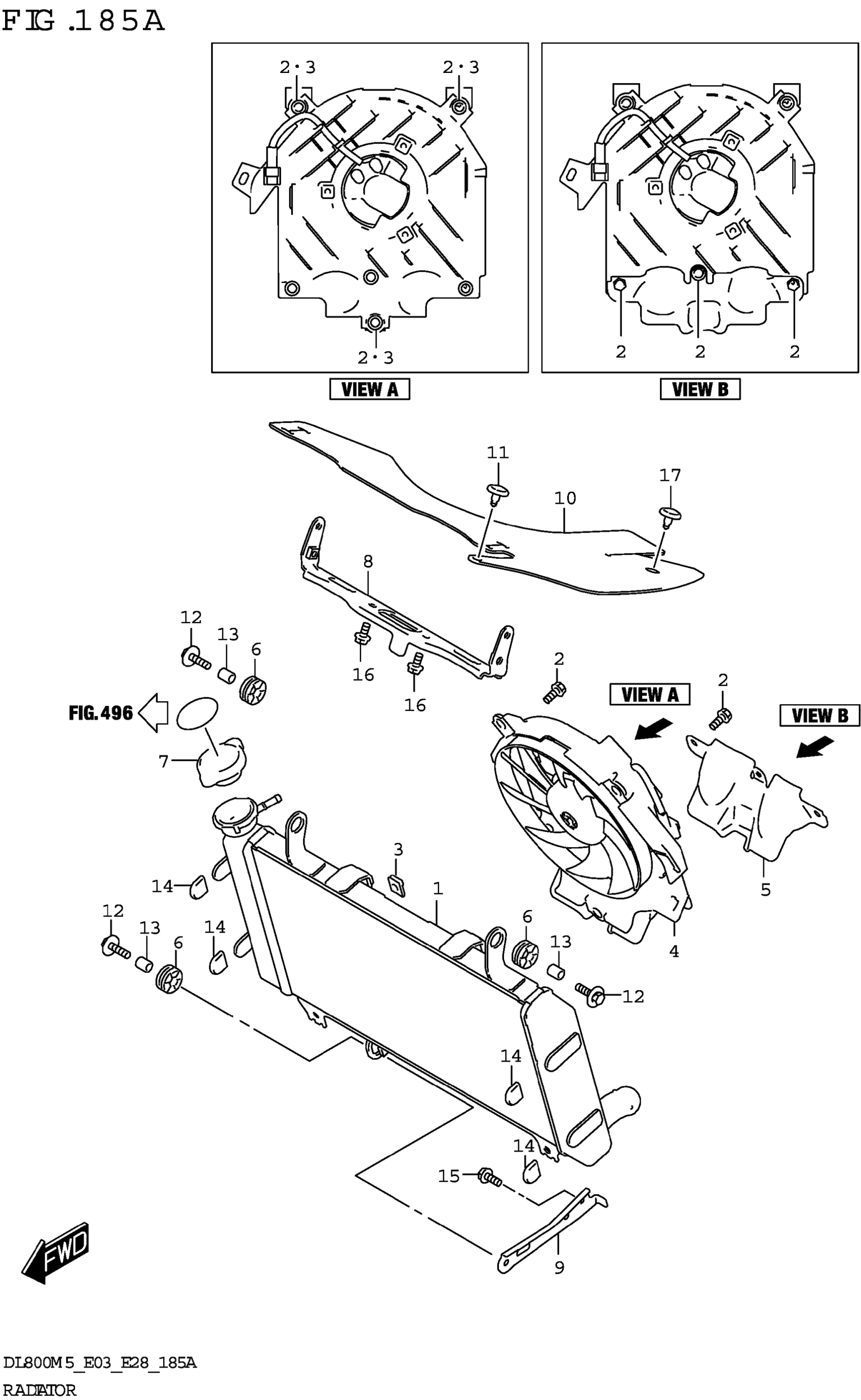

Suzuki DL800RQM5 (2025) RADIATOR Diagram

#

Description
Price

1

RADIATOR COMP

17700-25LB0

$530.47

2

BOLT,FAN ASSY

17711-14G00

$4.62

3

NUT,RADIATOR FAN

17802-14F00

$3.18

4

SHROUD FAN ASSY

17810-25L00

$226.73

5

PLATE

17812-25L00

$20.78

6

CUSHION

09320-10051

$2.81

7

CAP,RADIATOR (1.1)

17730-14G00

$39.21

8

BRACKET,RADIATOR UPPER

17740-25LA0

$28.03

9

BRACKET,RADIATOR LOWER

17750-25LA0

$11.38

10

SHIELD,RADIATOR HEAT

17771-25L10

$26.70

11

CLIP

94479-35F00

$5.14

12

BOLT (6X25)

09118-06097

$2.50

13

SPACER (6.5X10X12)

09180-06290

$2.01

14

CUSHION

09329-18001

$1.89

15

BOLT

01550-0616A

$1.97

16

SCREW

02162-0612A

$1.93

17

CLIP (BLACK)

09409-07317-5PK

Unavailable
