2025 Suzuki DL800RQM5 Manual/tools Diagram

← All diagrams

Find the part on the Manual/tools diagram for your 2025 Suzuki DL800RQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

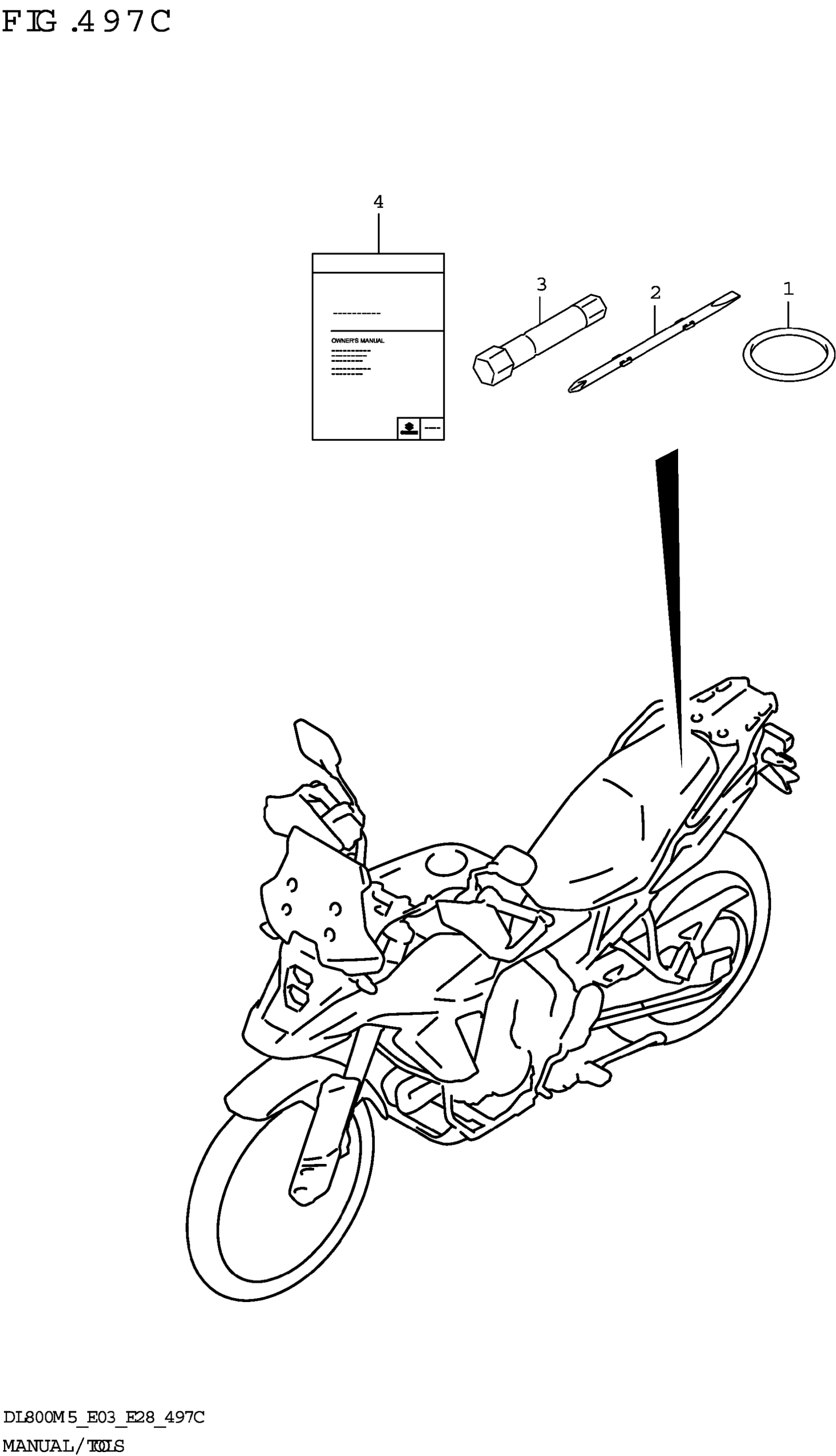

2025 Suzuki DL800RQM5 Manual/tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

1
Out of stock

2

DRIVER

09814-00015

1
Out of stock

3

GRIP,DRIVER

09814-00016

1
Out of stock

4

MANUAL,OWNER'S

99011-25L20-03A

1

$17.93

In stock
