2025 Suzuki DL800RQM5 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2025 Suzuki DL800RQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

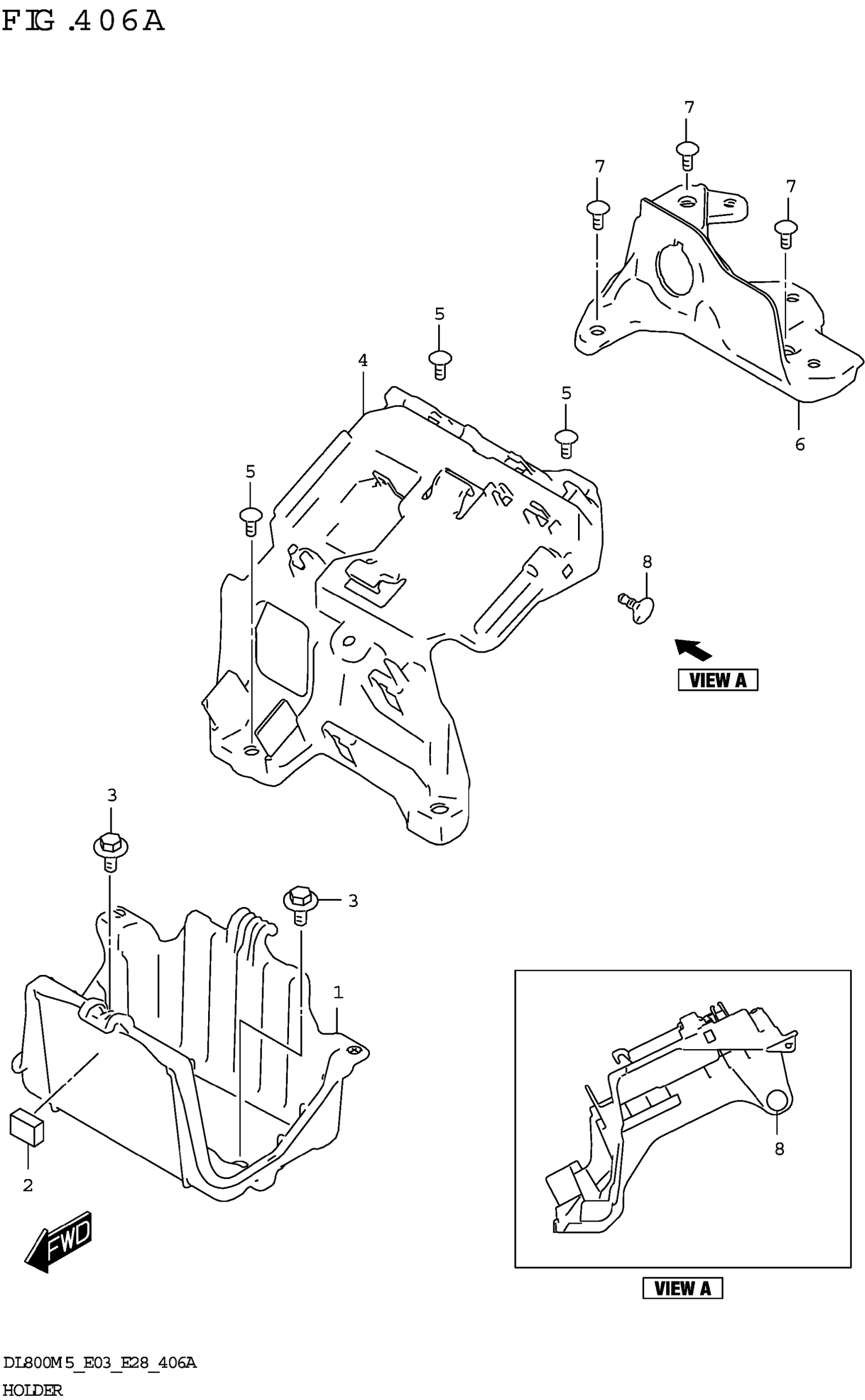

2025 Suzuki DL800RQM5 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,BATTERY

47414-25LA0

1
Out of stock

2

CUSHION,TANK COVER SIDE NO.4

44253-13K00

1
Out of stock

3

BOLT (6X13.5)

09111-06262

2
Out of stock

4

HOLDER,ELECTRIC PARTS NO.1

47431-25LB0

1
Out of stock

5

SCREW

03541-0512A

3
Out of stock

6

HOLDER,ELECTRIC PARTS NO.2

47441-25LA0

1
Out of stock

7

SCREW

03541-0512A

3
Out of stock

8

CLIP

94479-35F00

1
Out of stock
