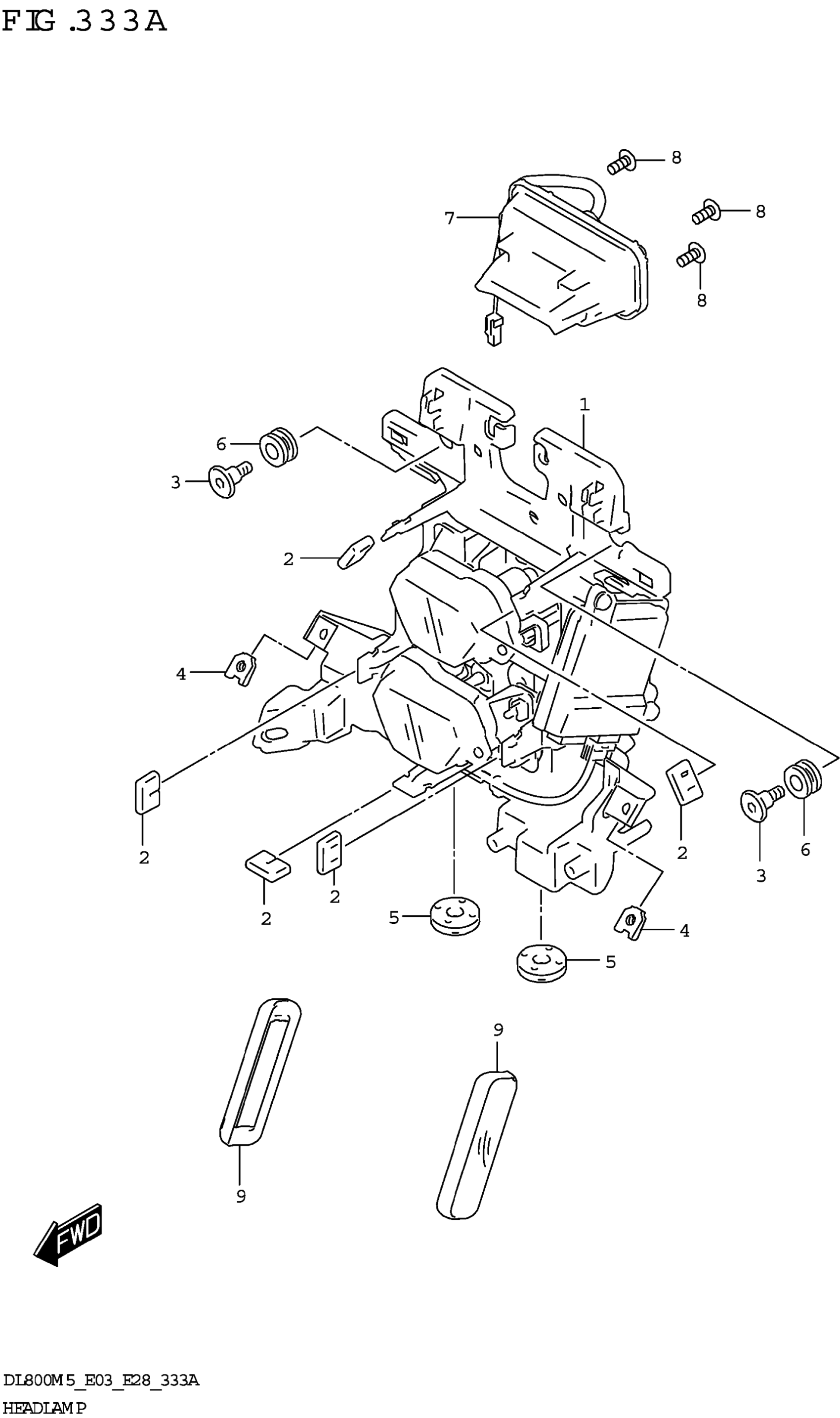

Suzuki DL800RQM5 (2025) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-25L01.

35100-25L02

$716.19

2

CUSHION

35781-17K00

$13.63

3

SCREW (6X20)

09139-06206

$3.32

4

NUT (M5)

09148-05045

$2.36

5

CUSHION (8X26X7)

09320-08028

$3.04

6

CUSHION (9X18X10)

09320-09501

$2.03

7

LAMP ASSY,FRONT POSITION

36110-48K00

$178.35

8

SCREW

03541-0512A

$1.49

9

REFLEX REFLECTOR,FR SIDE

35950-25LA0

$13.38
