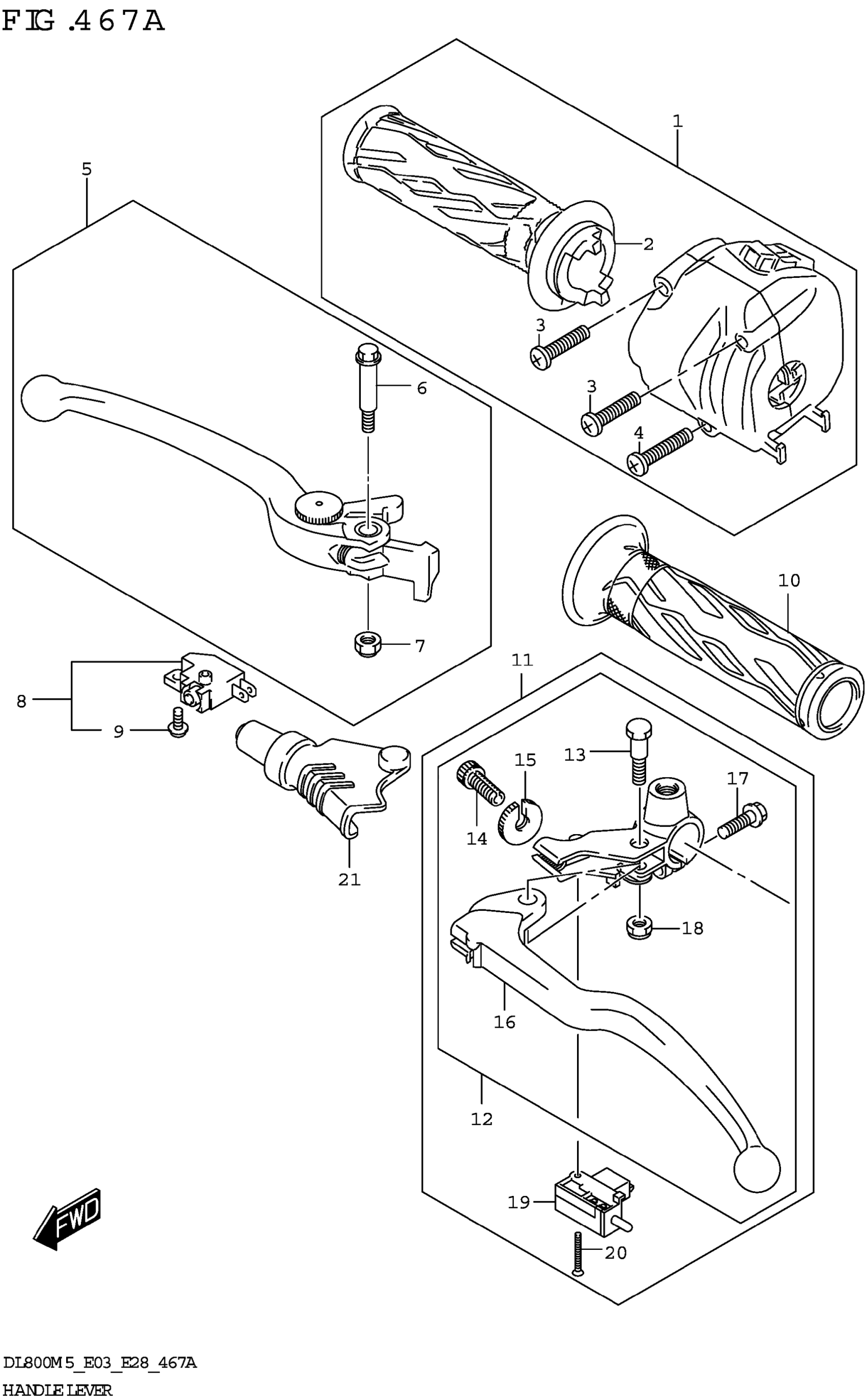

Suzuki DL800RQM5 (2025) HANDLE LEVER Diagram

#

Description
Price

1

GRIP ASSY,THROTTLE

57100-06L71

$327.10

2

.GRIP,THROTTLE

57110-06L10

$33.75

3

.SCREW

02112-0530B

$1.45

4

.SCREW

02112-0540B

$2.88

5

LEVER ASSY,BRAKE

57300-44G20

$36.24

6

.BOLT,LEVER PIVOT

57431-17H02

$6.72

7

.NUT

08319-2106A

$1.89

8

SWITCH ASSY,FR BRAKE

57460-14J02

$35.21

9

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

10

GRIP,L

57211-21H01

$10.18

11

LEVER SET,CLUTCH

57059-25D50

$92.77

12

.LEVER ASSY,CLUTCH

57500-25D50

$80.18

13

..BOLT,LEVER PIVOT

57431-21D11

$8.94

14

..ADJUSTER,WIRE

57441-25L00

$21.17

15

..NUT,LOCK

57442-08C01

$7.67

16

..LEVER,CLUTCH

57621-25D10

$33.97

17

..BOLT

01547-0620B

$2.43

18

.NUT

08319-2106A

$1.89

19

.SWITCH,CLUTCH

57560-05A00

$11.12

20

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

21

COVER,CLUTCH LEVER

57661-33E01

$7.76
