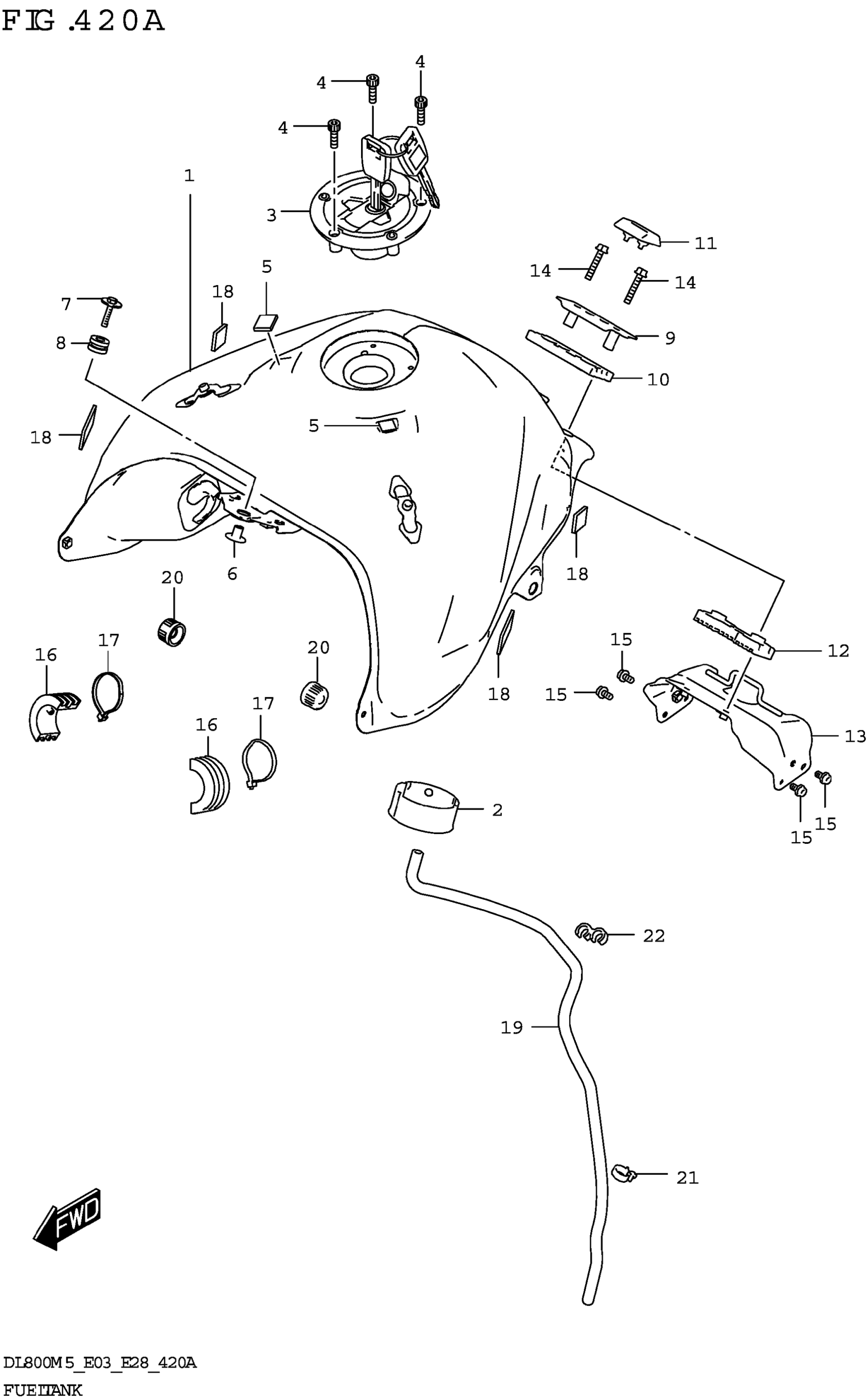

Suzuki DL800RQM5 (2025) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (GRAY) | BODY COLOR:QEB

44100-25LA0-QEB

$671.48

1-2

TANK ASSY,FUEL (BLACK) | BODY COLOR:YKV

44100-25LA0-YKV

Unavailable

1-3

TANK ASSY,FUEL (RED) | BODY COLOR:YYG

44100-25LA0-YYG

Unavailable

2

VESSEL,FUEL TANK INNER

44121-07L00

$16.65

3

CAP SET,FUEL TANK FILLER

44200-17850

$145.35

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

FASTENER (20X15X2.6)

44572-44G00

$10.18

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

7

BOLT (6X30)

09116-06172

$2.50

8

CUSHION (10X22X13)

09320-10050

$3.35

9

BRACKET,FUEL TANK REAR UP

44530-25LA0

$14.72

10

CUSHION,FUEL TANK REAR UPPER

44542-25LA0

$5.45

11

CUSHION,FUEL TANK REAR BRKT

44543-25LA0

$4.15

12

CUSHION,FUEL TANK REAR LOWER

44545-25LA0

$7.90

13

BRACKET,FUEL TANK REAR

44550-25LA0

$31.82

14

BOLT

01550-0635A

$2.32

15

BOLT

07120-0612A

$2.50

16

CUSHION,FUEL TANK SIDE

44541-25L00

$6.12

17

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

18

FASTENER (33X25X2.6)

44572-13G00

$11.07

19

HOSE,FUEL TANK WATER DRAIN

44423-25LB0

$14.22

20

CUSHION,FUEL TANK FRONT

44542-25L00

$4.50

21

CLAMP

09403-16412

$3.37

22

CLAMP (ID:11.8X2)

09408-00043

Unavailable
