2025 Suzuki DL800RQM5 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2025 Suzuki DL800RQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

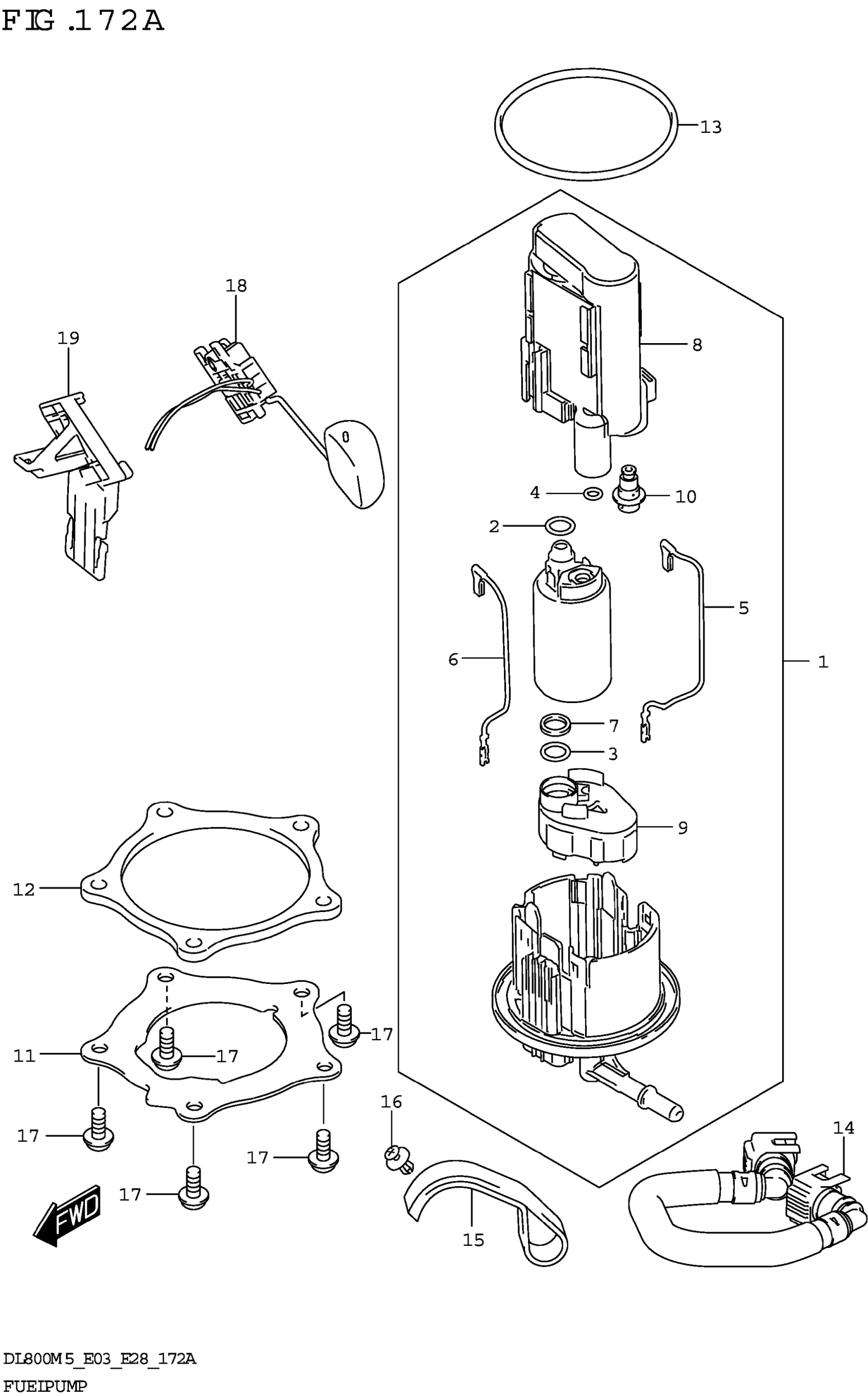

2025 Suzuki DL800RQM5 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-25L10

1

$383.57

In stock

2

.O-RING

15113-05H00

1

$20.48

In stock

3

.O-RING

15113-17K00

1

$35.95

In stock

4

.O-RING

15113-35F00

1

$8.88

In stock

5

.WIRE,EARTH

15114-17K00

1

$45.18

In stock

6

.WIRE,LEAD

15115-17K00

1

$45.18

In stock

7

.COLLAR

15116-17K00

1

$20.62

In stock

8

.FILTER

15310-17K10

1

$72.05

In stock

9

.STRAINER

15420-17K00

1

$101.46

In stock

10

.REGULATOR

15610-17K50

1

$172.38

In stock

11

PLATE,FUEL PUMP OUTER

15121-25L00

1

$11.66

In stock

12

PLATE,FUEL PUMP INNER

15122-17K00

1

$49.37

In stock

13

O-RING,FUEL PUMP

15201-07L00

1

$20.93

In stock

14

HOSE,FUEL

15810-25L00

1

$167.00

In stock

15

CLAMP,FUEL HOSE

15821-25L00

1

$4.47

In stock

16

CLIP

09409-06347

1

$2.20

In stock

17

BOLT

07120-0616A

5
Out of stock

18

1

$53.82

In stock

19

1

$3.72

In stock
