2025 Suzuki DL800RQM5 Evap System Diagram

← All diagrams

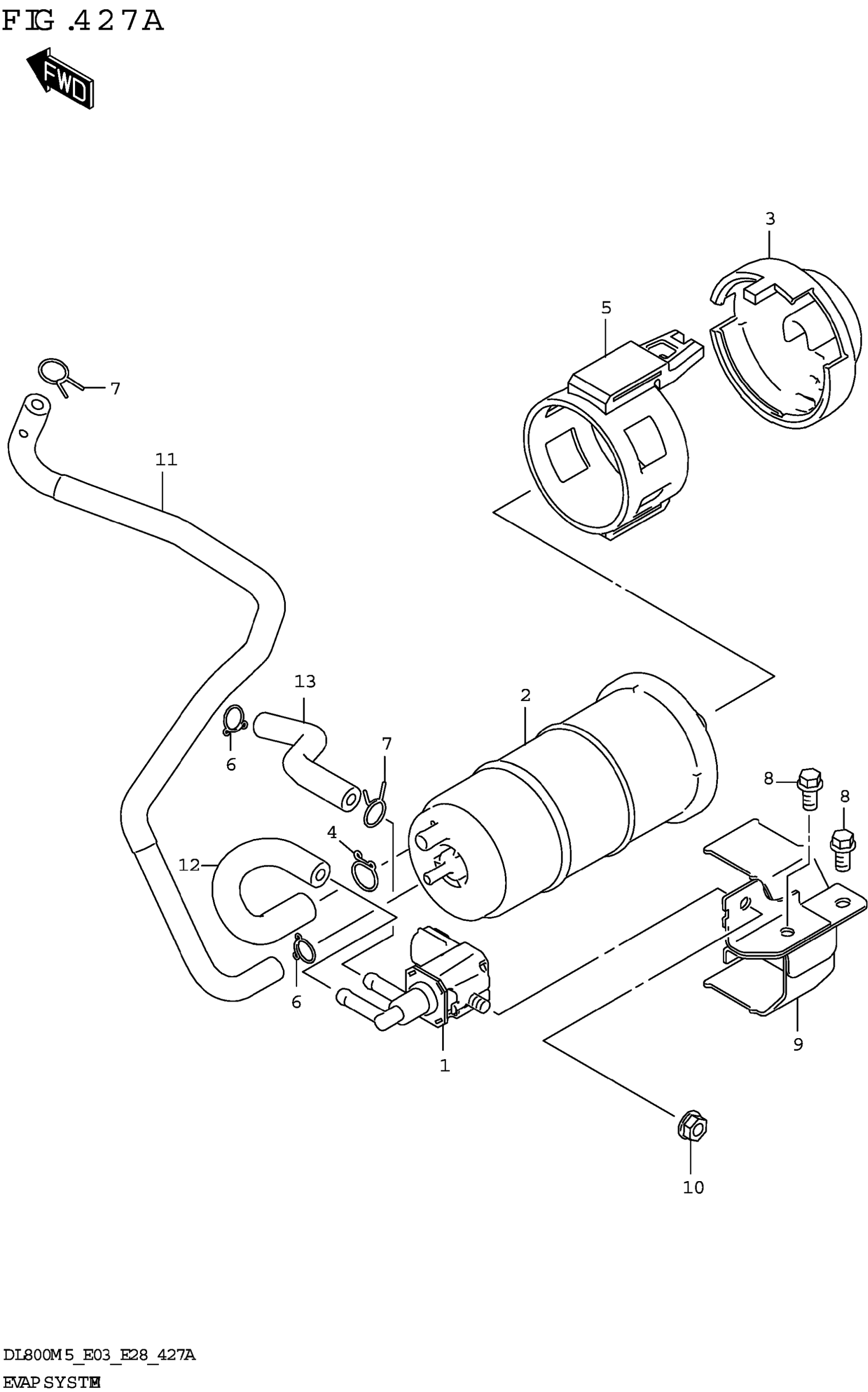

Find the part on the Evap System diagram for your 2025 Suzuki DL800RQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800RQM5 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE,CANISTER PURGE

18114-74P00

1
Out of stock

2

CANISTER ASSY,EVAP

18560-25L00

1
Out of stock

3

COVER,CANISTER

18565-25L00

1
Out of stock

4

CLIP,EVAP HOSE NO.1

18568-25L00

1
Out of stock

5

CUSHION,CANISTER

18572-25L00

1
Out of stock

6

CLIP

09401-10401

2
Out of stock

7

CLIP (ID:11)

09401-11403

3
Out of stock

8

BOLT

01547-0612A

2
Out of stock

9

BRACKET,CANISTER

18570-25L00

1
Out of stock

10

NUT (6X12)

08316-1006A

1
Out of stock

11

HOSE,SURGE

18561-25L10

1
Out of stock

12

HOSE,PURGE NO.1

18562-25L10

1
Out of stock

13

HOSE,PURGE NO.2

18563-25L10

1
Out of stock
