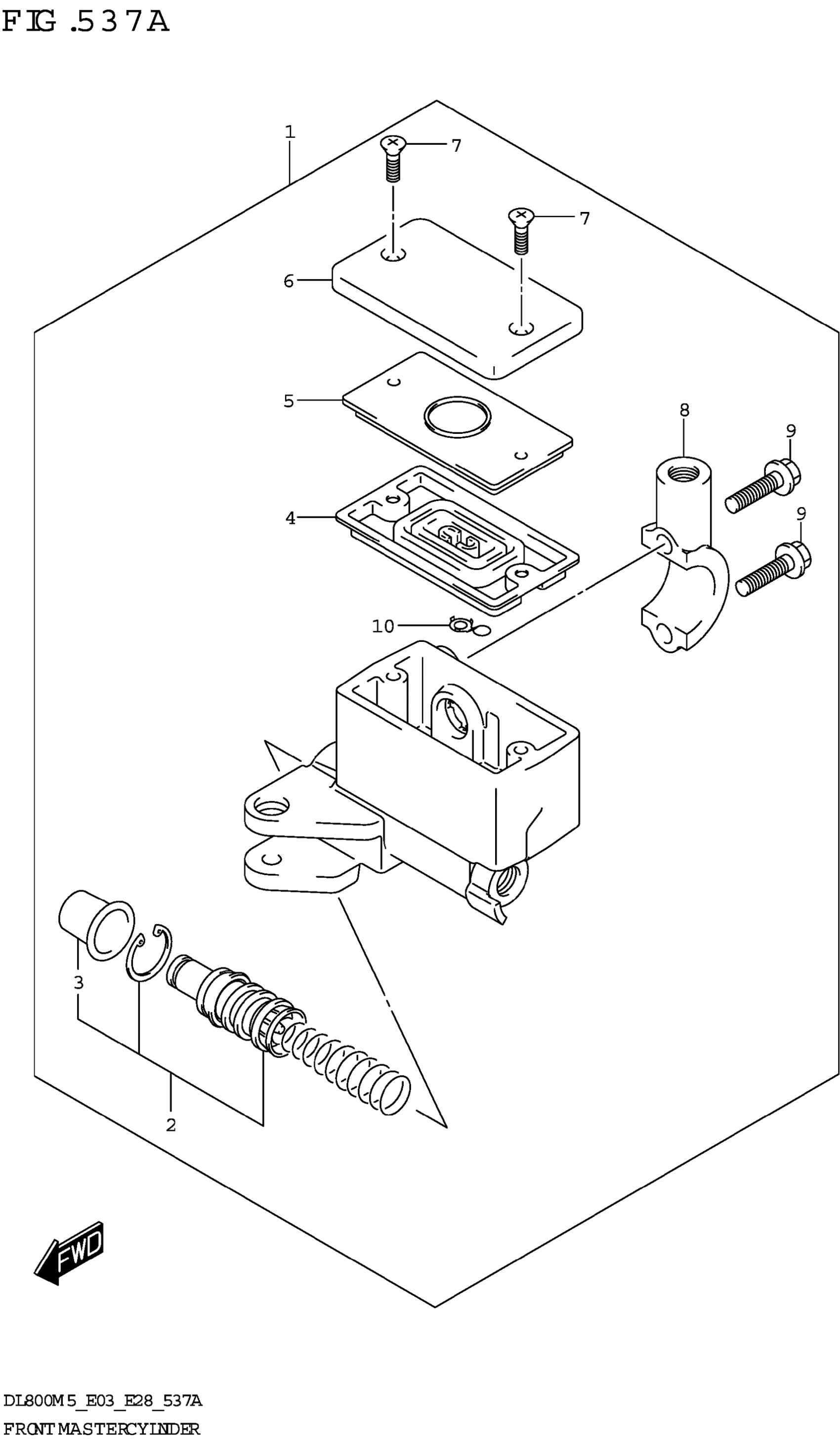

Suzuki DL800RQM5 (2025) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER

59600-42F40

$291.48

2

.PISTON/CUP SET

59601-45810

$61.78

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-49460

$8.95

5

.PLATE,DIAPHRAGM

59668-41C00

$8.54

6

.CAP

59669-10G20

$64.72

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-32F00

$17.87

9

.BOLT (6X22)

59675-02FA0

$3.49

10

.PROTECTOR

59664-32F00

$13.20
