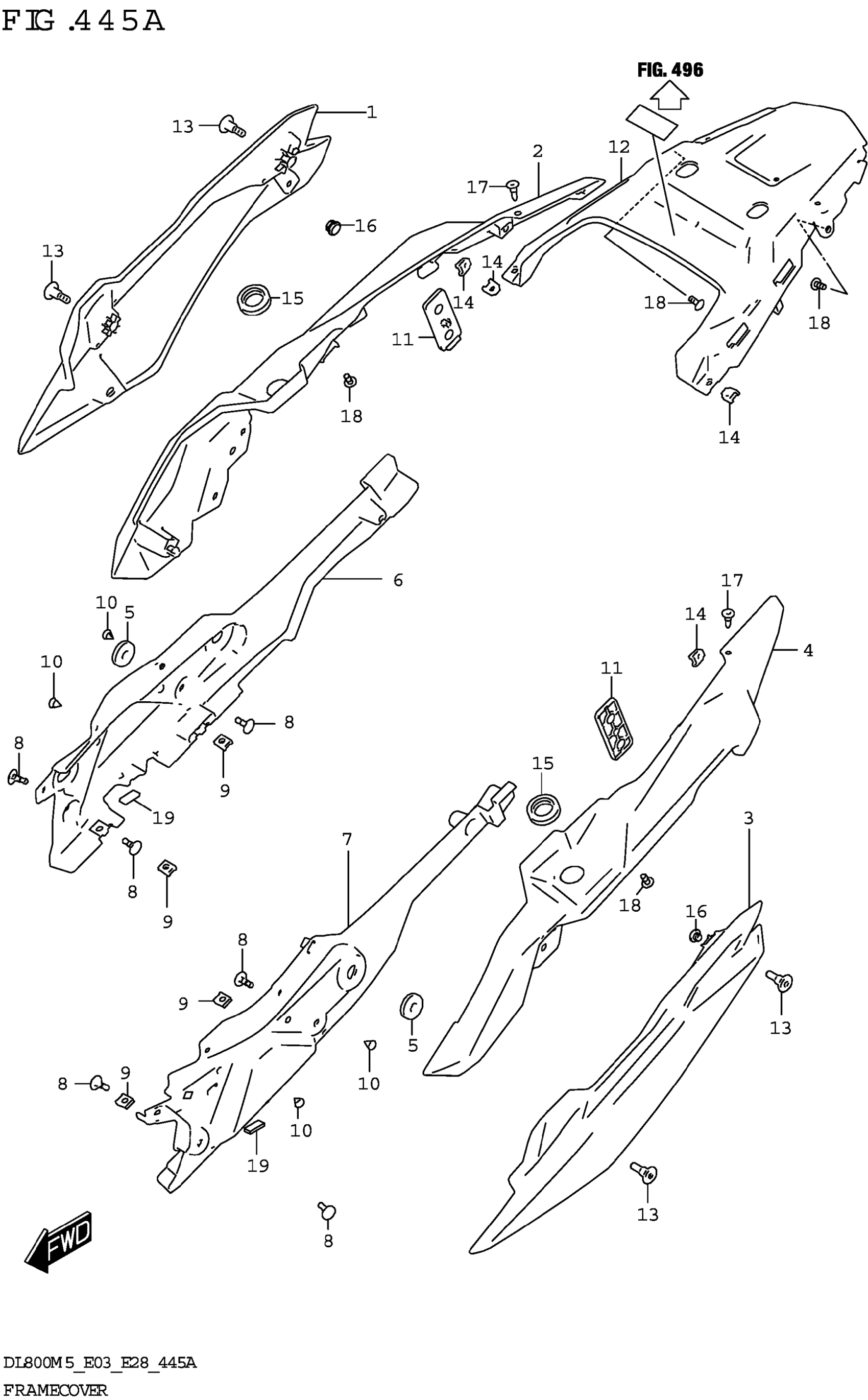

Suzuki DL800RQM5 (2025) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME SIDE,R (BLACK)

47410-25L10-019

$24.68

2

COVER,FRAME REAR,R (BLACK)

47411-25LA0-YVB

$51.85

3

COVER,FRAME SIDE,L (BLACK)

47510-25L10-019

$24.68

4

COVER,FRAME REAR,L (BLACK)

47511-25LA0-YVB

$51.85

5

CUSHION (8x26x7)

09320-08018

$3.04

6

COVER,FRAME INNER,R

47311-25LA0

$9.72

7

COVER,FRAME INNER,L

47321-25LA0

$9.72

8

CLIP

94479-35F00

$5.62

9

NUT (M5)

09148-05038

$1.97

10

PLUG (OD:10)

09250-06017

$2.71

11

SPACER,FRAME COVER

47510-28K00

$17.72

12-1

COVER,FRAME REAR CTR (BLACK) | BODY COLOR:QEB,YYG

47711-25LA0-019

$34.87

12-2

COVER,FRAME REAR CTR (YELLOW) | BODY COLOR:YKV

47711-25LA0-YU1

$35.72

13

SCREW

47913-06L00

$1.65

14

NUT (M5)

09148-05045

$2.36

15

CUSHION (20X32X9)

09320-20011

$2.69

16

CUSHION

09321-05023

$2.03

17

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

18

SCREW

03541-0512A

$1.49

19

CUSHION,CTR PANEL UPR

94413-08F00

$3.78
