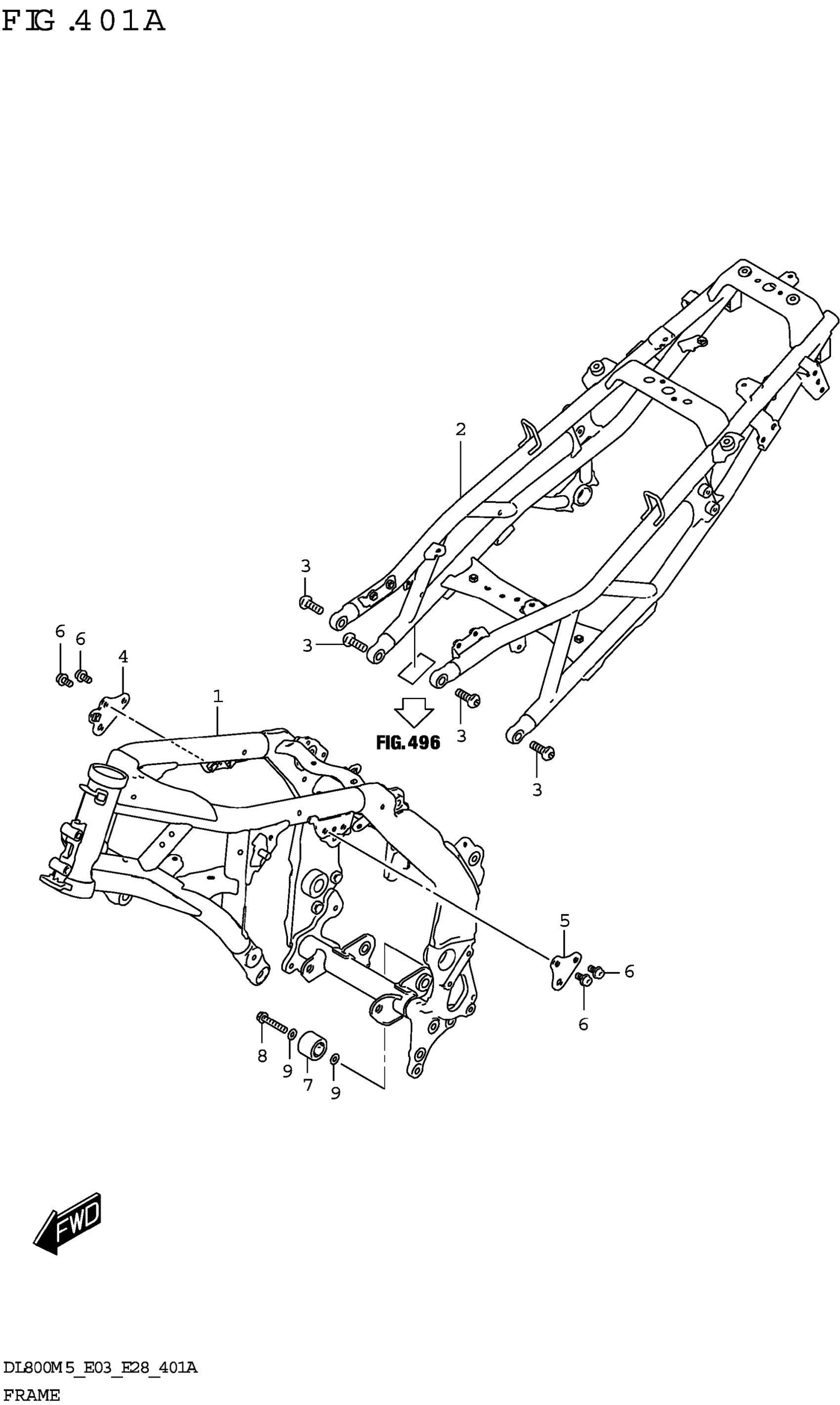

Suzuki DL800RQM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME

41100-25LA0

$1,778.87

2

RAIL,SEAT (SILVER)

41200-25LA0-QKA

$719.13

3

BOLT

09106-10100

$3.33

4

PLATE,ENG MTG,R

41920-25L00

$8.52

5

PLATE,ENG MTG,L

41922-25L00

$7.77

6

BOLT

07120-0816B

Unavailable

7

ROLLER,CHAIN

43910-37F00

$70.53

8

BOLT (8X45)

09103-08207

$2.51

9

SHIM (8X16X1)

09181-08167

$1.96
