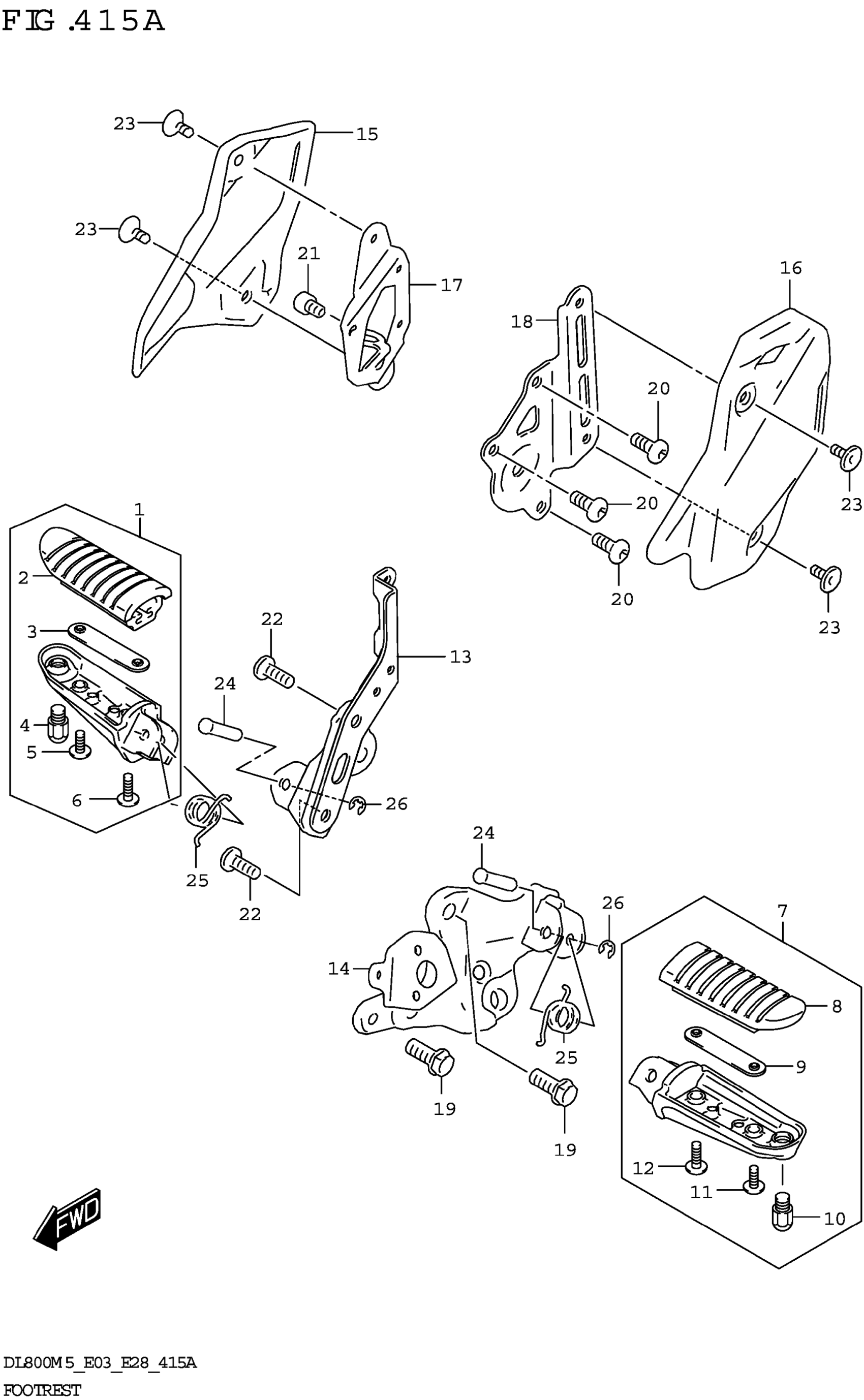

Suzuki DL800RQM5 (2025) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,FRONT,R

43501-25LC0

$70.35

2

.RUBBER,FOOTREST

43551-06G00

$14.02

3

.PLATE,FR FOOTREST RUBBER

43552-06G00

$12.82

4

.BOLT,BANK SENSOR

43576-07D01

$8.85

5

.SCREW

02142-0516A

$1.49

6

SCREW

02142-0520A

$1.49

7

FOOTREST ASSY,FRONT,L

43502-25LC0

$70.35

8

.RUBBER,FOOTREST

43551-06G00

$14.02

9

.PLATE,FR FOOTREST RUBBER

43552-06G00

$12.82

10

.BOLT,BANK SENSOR

43576-07D01

$8.85

11

.SCREW

02142-0516A

$1.49

12

SCREW

02142-0520A

$1.49

13

BRACKET,FR FOOTREST,R

43510-25LC0

$116.70

14

BRACKET,FR FOOTREST,L

43520-25LC1

$101.42

15

GUARD,FR FOOTREST,R

43571-25LB0

$12.15

16

GUARD,FR FOOTREST,L

43572-25LB0

$12.15

17

BRACKET,GUARD FOOTREST,R

43580-25LB0

$14.72

18

BRACKET,GUARD FOOTREST,L

43590-25LB0

$35.83

19

BOLT (10X25)

09103-10415

$4.52

20

BOLT (8X20)

09106-08167

$3.35

21

BOLT (8X12)

09106-08171

Unavailable

22

BOLT

09106-08206

$2.33

23

SCREW (6X16)

09139-06221

$2.92

24

PIN (8X33.2)

09208-08010

$2.91

25

SPRING

09448-18022

$3.79

26

E-RING

08332-1106B

$2.00
