Description

Price

1

HEAD ASSY,CYLINDER

11100-25L00

$1,146.63

2

.BOLT (6X40)

09103-06266

$2.12

3

.PIN (8X11)

09206-08001

$1.78

4

.O-RING (ID:25.7,DD:2.4)

09280-26007

$6.52

5

BOLT,CYL HEAD (L:160)

11117-44H00

$19.73

6

.GASKET,CYLINDER HEAD

11141-25L10

$38.23

7

BOLT (6X120)

09103-06148

$4.77

8

GASKET (5.8X13X1.2)

09168-06023

$2.35

9

BOLT

01550-0612A

$1.97

10

PIN (10.4X13X18)

04211-13189

$2.19

11

CAP (OD:12)

09250-08012

$2.15

12

PLUG,SPARK (LMAR8BI-9) | NGK

09482-00635

$24.47

13

WASHER,ENG MTG FR,L

11611-25L00

$4.20

14

BOLT (L:55)

09103-12145

$5.10

15

BOLT (L:35)

09106-10102

$3.45

16

GUIDE,VALVE OS 0.3 | OPT

11115-25L70

$57.05

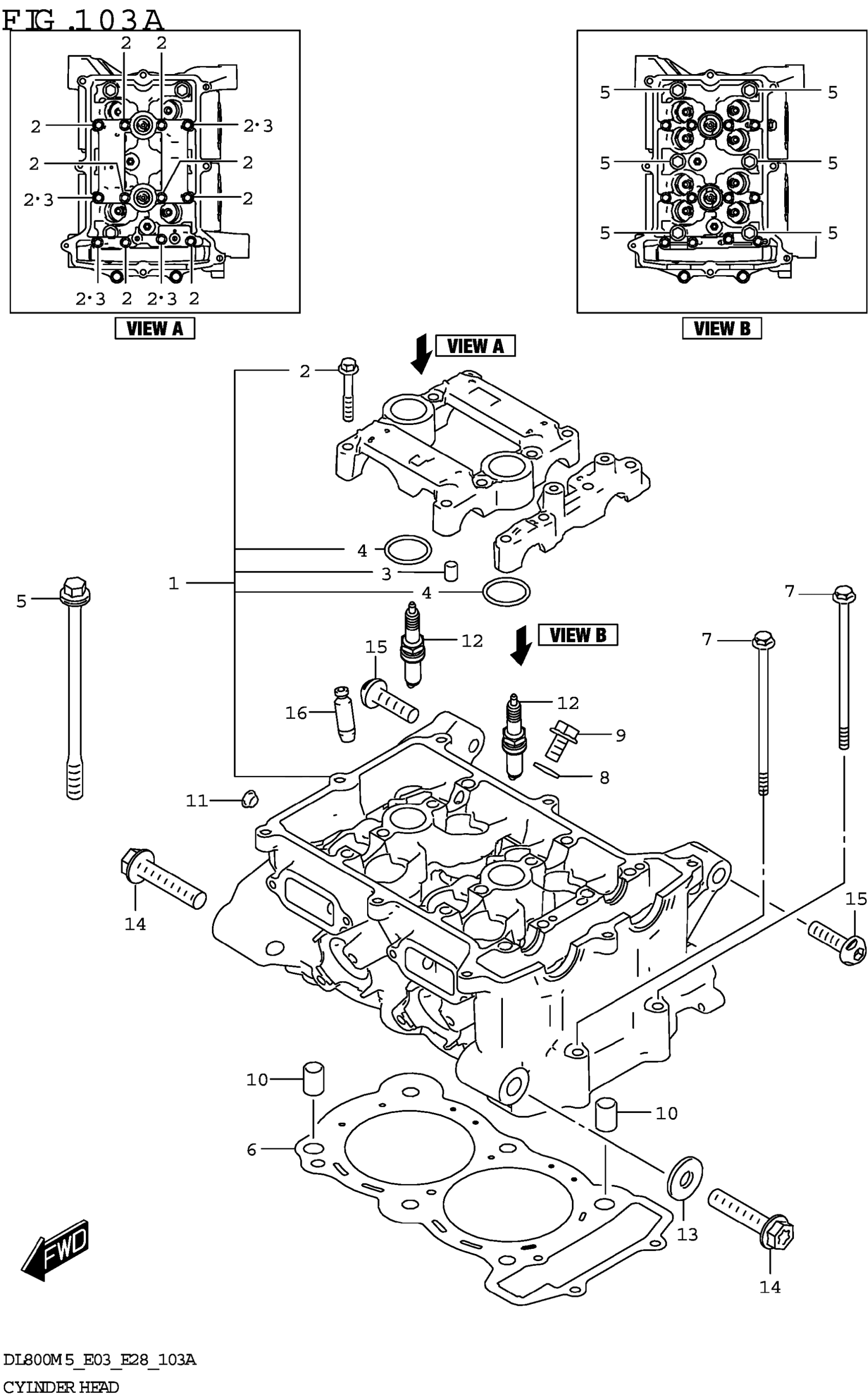

Suzuki DL800RQM5 (2025) CYLINDER HEAD Diagram
