2025 Suzuki DL800DERCM5 Water Pump Diagram

← All diagrams

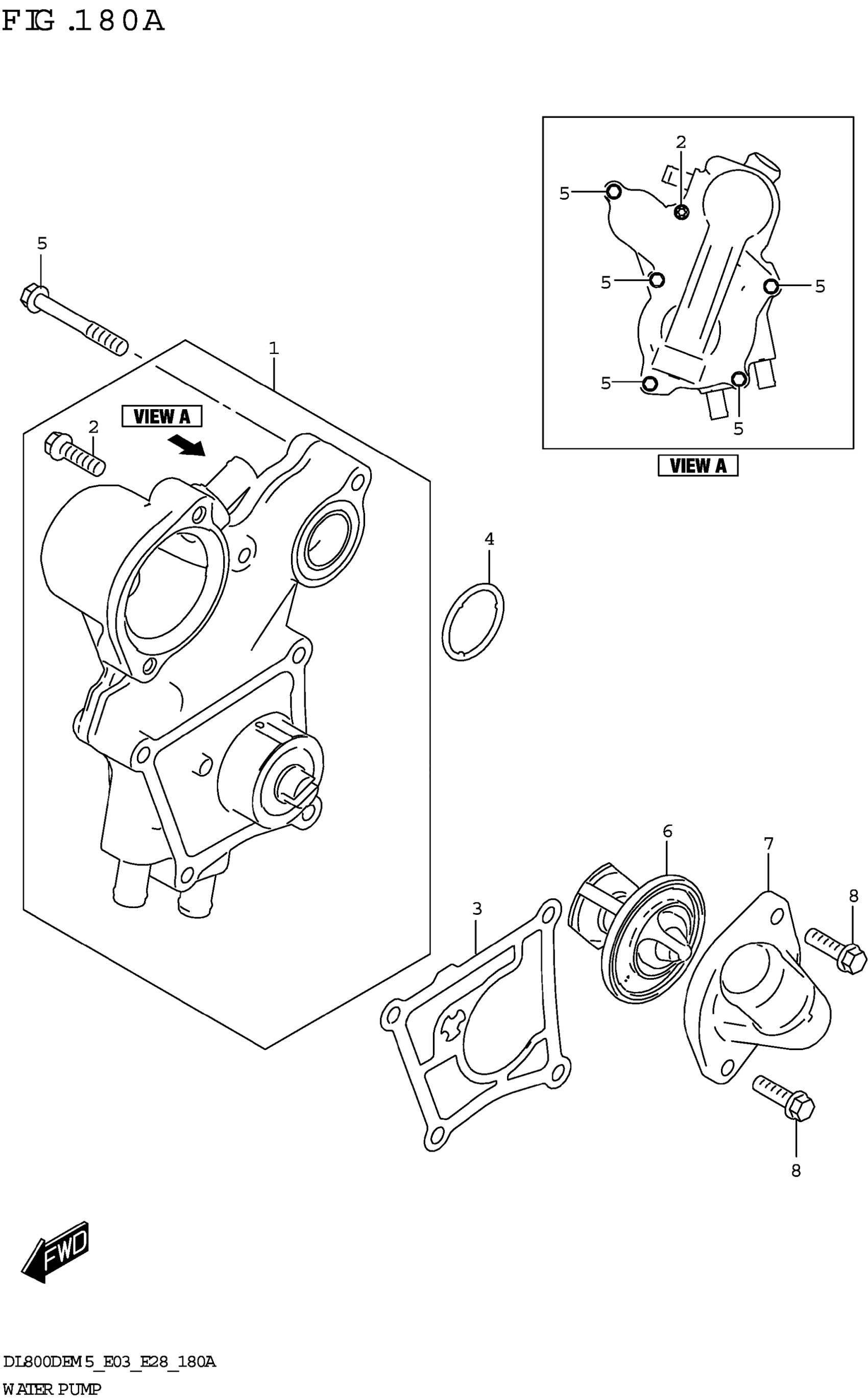

Find the part on the Water Pump diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL800DERCM5 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER

17400-25L01

1
Out of stock

2

BOLT (6X20)

09103-06527

1
Out of stock

3

.GASKET,WATER PUMP

17421-25L00

1
Out of stock

4

.O-RING,WATER PUMP

17431-25L00

1
Out of stock

5

BOLT (L:45)

09103-06532

5
Out of stock

6

THERMOSTAT,WTR 82 DEG

17670-81AB1

1
Out of stock

7

CAP,THERMOSTAT

17661-25L00

1
Out of stock

8

BOLT

01547-0620A

2
Out of stock
