2025 Suzuki DL800DERCM5 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Suzuki DL800DERCM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

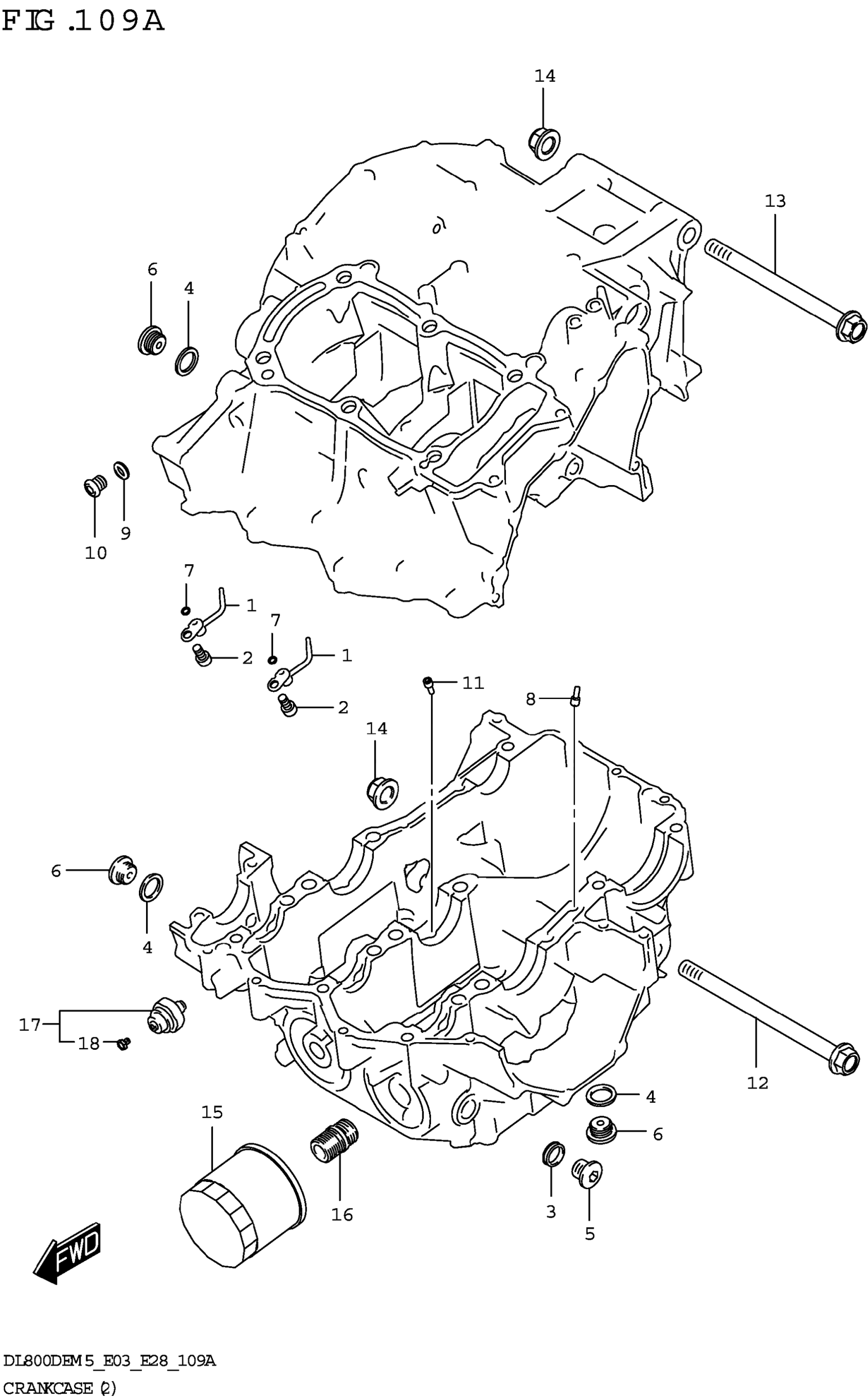

2025 Suzuki DL800DERCM5 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET,PISTON COOLING

11390-25L00

2
Out of stock

2

BOLT (6X12)

09106-06075

2
Out of stock

3

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

4

GASKET (16X22X2)

09168-16002

3
Out of stock

5

PLUG (14X12)

09248-14011

1
Out of stock

6

PLUG (16X8)

09248-16012

3
Out of stock

7

O-RING (D:1.2,ID:4)

09280-04004

2
Out of stock

8

JET (#140)

09493-28012

1
Out of stock

9

GASKET (10X14X3.6)

09168-10002

1
Out of stock

10

PLUG (10X10)

09248-10010

1
Out of stock

11

JET,AIR

09493-22010

1
Out of stock

12

BOLT (L:55)

09103-12145

2
Out of stock

13

BOLT (L:165)

09103-12143

1
Out of stock

14

BOLT (L:145)

09103-12144

1
Out of stock

15

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

1
Out of stock

16

UNION,OIL STAND

16591-06B01

1
Out of stock

17

SWITCH ASSY,OIL PRESSURE

37820-33D11

1
Out of stock

18

.BOLT,OIL PRESSURE SWITCH

37822-33D00

1
Out of stock
